Features
■
Multiturn / Cermet / Industrial / Sealed
■
Space saver: 0.100 ” x 0.150 ” x 0.500 ”
■
±100 ppm/°C temperature coefficient over
entire temperature and resistance ranges
■
Available with or without standoffs
■
For trimmer applications/processing
guidelines,
click here

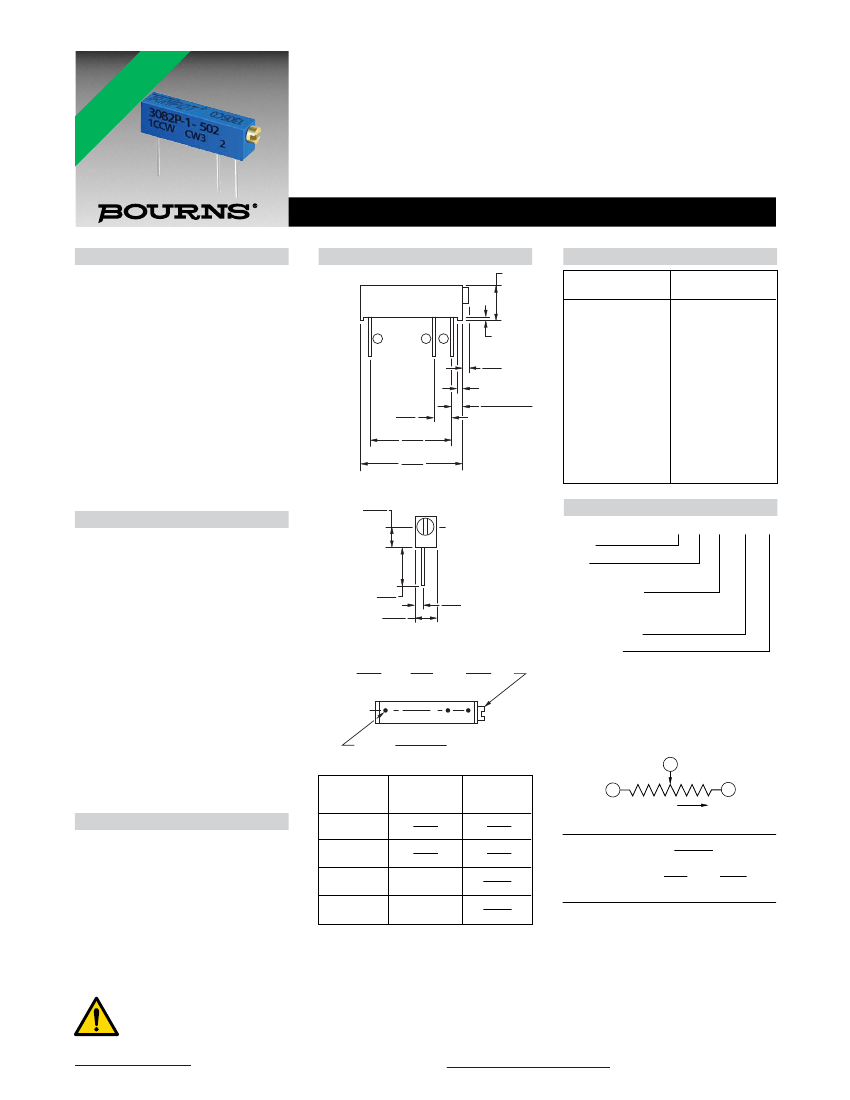

3082 - 1/2 ” Rectangular Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
....................................10 to 2 megohms
(see standard resistance table)
Resistance Tolerance ............... ±10 % std.
Absolute Minimum Resistance
.............................1.0 % or 2 ohms max.
(whichever is greater)
Contact Resistance Variation
.............................3.0 % or 3 ohms max.
(whichever is greater)
Continuity
..... Maintained for full mechanical range
Adjustability
Voltage ...................................... ±0.05 %
Resistance ................................ ±0.10 %
Insulation Resistance ....................500 vdc
1000 megohms min.
Adjustment Angle................. 10 turns nom.
Environmental Characteristics
Power Rating (400 volts max.)
85 °C...........................................0.3 watt
Temperature Range.......-65 °C to +150 °C
Temperature Coefficient ....... ±100 ppm/°C
Humidity ...........MIL-STD-202 Method 106
100 megohms min. insulation
resistance after removal from
chamber
Vibration ......30 G (exceeds MIL-R-22097)
Contact Bounce .... 0.1 millisecond max.
Wiper Shift, Max....... 1.0 % voltage ratio
Shock ........100 G (exceeds MIL-R-22097)
Contact Bounce .... 0.1 millisecond max.
Wiper Shift, Max....... 1.0 % voltage ratio
Load Life ... 1,000 hours, 0.3 watt @ 25 °C
Resistance Shift, Max. ................ ±2.0 %
Mechanical Life ......................... 200 cycles
without discontinuity
Dielectric Strength ................ MIL-R-22097
Room Conditions ...............900 volts AC
80,000 feet .........................400 volts AC
Physical Characteristics
Immersion Leak Test ................... No leaks
Torque .................................2.0 oz-in. max.
Mechanical Adjustments ..... 12 turns nom.
Mechanical Stops .................... Wiper idles
Wiper ................... 50 % (Actual TR) ±10 %
Terminals........................... Solderable pins
Weight ..........................................0.009 oz.
Marking .............................. Manufacturer’s
trademark, resistance code,
terminal numbers, date code and
manufacturer’s model number
Standard Packaging ........ 25 pcs. per tube
Product Dimensions
A
Standard Resistance Table
Resistance
(Ohms)
10
20
50
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
750,000
1,000,000
2,000,000
Resistance
Code
100
200
500
101
201
501
102
202
502
103
203
503
104
204
504
754
105
205
1
3
2
C MIN.
TYP.
1.02
(.04)
D TYP.
1.40 ± .254
(.055 ± .010)
2.5
(.10)
10.2
(.40)
12.7
(.50)
B±
2.54
(.010)
How To Order
3082 P - 1 - 103 LF
Model
Style
6.1
(.24)
2.92
(.115)
1.81
(.07)
Standard or Modified
Product Indicator
-1 = Standard Product
-45 = With Standoffs
Resistance Code
Terminations
LF = 100 % Tin-plated (RoHS compliant)
Blank = 90 % Tin / 10 % Lead-plated
(Standard)
Consult factory for other available options.
ADJ. SLOT
.64
.51
1.91
DIA. X
WIDE X
DEEP
(.025)
(.020)
(.075)
#26 AWG
.41 ± .025
(.016 ± .001)
PINS
2
Dimension
A
B
C
D
3082P-1
(Without
Standoffs)
3.8
(.15)
2.74
(.108)
None
None
3082P-45
(With
Standoffs)
4.3
(.17)
3.3
(.130)
.381
(.015)
.51
(.020)
CCW
WIPER
1
CLOCKWISE
3
CW
MM
(INCHES)
±.25
±.127
TOLERANCES: .XX
.XXX
±.010
±.005
EXCEPT WHERE NOTED
DIMENSIONS:
REV. 11/15
“Trimpot” is a registered trademark of Bourns, Inc.
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice. Users should verify actual device performance in their specific
