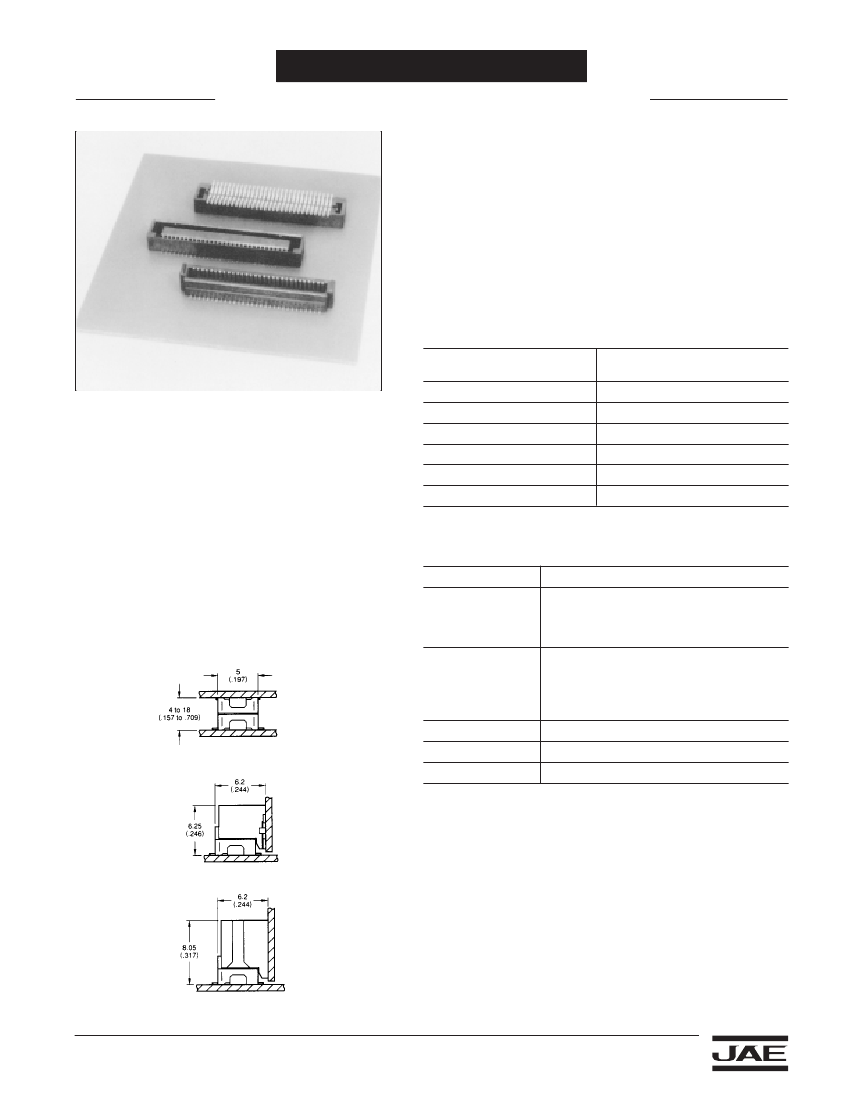

KX14/15 SERIES CONNECTORS
0.8mm (.031") Contact Spacing, PCB-to-PCB SMT Connectors
• • • • • • • • • • • • • •
The KX14/15 Series connectors are low profile, SMT type
connectors for PCB-to-PCB applications. Contact spacing is
0.8mm (.031"). The receptacle (KX14) and plug (KX15) combination
offer variable stacking heights of 4 to 18mm (.157 to .709").
These connectors are ideal for use in the personal computer
industry where space, weight and high density are critical factors.
GENERAL SPECIFICATIONS
Number of Contacts
Contact Spacing
20, 30, 40, 50, 60, 70, 80, 100, 120,
140, 160, 200
(See Note 1)
0.8mm (.031")
0.5 Amps
500 VAC r.m.s. (for one minute)
100 megohms min.
70 milliohms max.
-40°C to +85°C
Note 1: Please consult JAE for availability.
FEATURES
Current Rating
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
• 0.8mm (.031") contact spacing
• Straight receptacle (KX14) and right
angle/straight plug (KX15) for paralleled
and vertical PCB connections
• 4 to 18mm (.157 to .709") stacking heights
• Polarization key prevents mismating
• Resistant to vibration and twisting
• Available in embossed tape for automatic
mounting
Connector Profile (Ref.)
MATERIALS AND FINISHES
Description
Insulator
KX14
KX15 Straight
KX15 Right Angle
Contact
Materials/Finishes
Glass-filled LCP/Black
Glass-filled PPS/Black
Glass-filled LCP/Black
Copper Alloy
Connecting Area: 0.1µm (.000004") min.
Gold Plating Over Nickel
Terminal Area:Gold flash over Nickel or
Tin-lead over Nickel
Copper Alloy/Tin-lead over Nickel
Copper Alloy/Tin plating
Brass/Nickel plating
Hold Down
Hold-down type (Right-angle side)
Hook Pin
Hexagon Nut
Screw type (Right-angle side)
Dimensions and specifications subject to change in mm (inches).
Dimensions without notice.
KX14/15 SERIES CONNECTORS
0.8mm (.031") Contact Spacing, PCB-to-PCB SMT Connectors
ORDERING INFORMATION
STRAIGHT
KX
Series
Connector Type
14 – Receptacle
15 – Plug
No. of Contacts
(See Note 1)
20, 30, 40, 50, 60, 70, 80
100, 120, 140, 160, 200
Polarization Key
K – With Polarization Key
N – Without Polarization Key
Stacking Height Code
(See Note 2)
(Receptacle) 2, 5, 8, 11, 14
(Plug)
2, 3, 4
Mounting Type
(See Table Below)
B, C, D, E, F
Contact Finish
Blank – Connecting Area: Gold plating 0.1µm
(.000004") min. over Nickel
Terminal Area: Gold Flash over Nickel
1 – Connecting Area: Gold plating 0.1µm (.000004") min.
over Nickel
Terminal Area: Tin-Lead over Nickel
Note 1: Please consult JAE for availability.
Note 2: Stacking Height = Stacking Height Code of KX14 &
Stacking Height Code of KX15.
RIGHT ANGLE
**
–
**
*
*
*
*
Series
Connector Type
15 – Plug
No. of Contacts
(See Note 1)
20, 30, 40, 50, 60, 70, 80
100, 120, 140, 160
Polarization Key
K – With Polarization Key
N – Without Polarization Key
Termination
L – Right Angle Type
Mounting Type
(See Table Below)
D, F, J, N
Contact Finish
Blank – Connecting Area: Gold plating 0.1µm
(.000004") min. over Nickel
Terminal Area: Gold Flash over Nickel
Note 1: Please consult JAE for availability.
KX 15 – **
*
*
*
(Blank)
Mounting Type for Right Angle
Positioning Key
D
F
J
N
Hold Down
Nut
—
—
—
○
○
○
—
○
○
—
—
○
Mounting Type for Straight
Positioning Key
B
C
D
E
F
Hold Down
—
—
Flange
—
Hook Pin
—
Stacking Height (Parallel PCB to PCB connection)
Plug
Stacking Height
Code
○
○
○
○
○
—
—
○
○
○
○
○
○
2
4 (.157)
7 (.276)
10 (.394)
13 (.512)
16 (.630)
3
5 (.197)
8 (.315)
11 (.433)
14 (.551)
17 (.669)
4
6 (.236)
9 (.354)
12 (.472)
15 (.591)
18 (.709)
2
Receptacle
—
—
—
5
8
11
14
Dimensions in mm (inches).
KX14/15 SERIES CONNECTORS
0.8mm (.031") Contact Spacing, PCB-to-PCB SMT Connectors

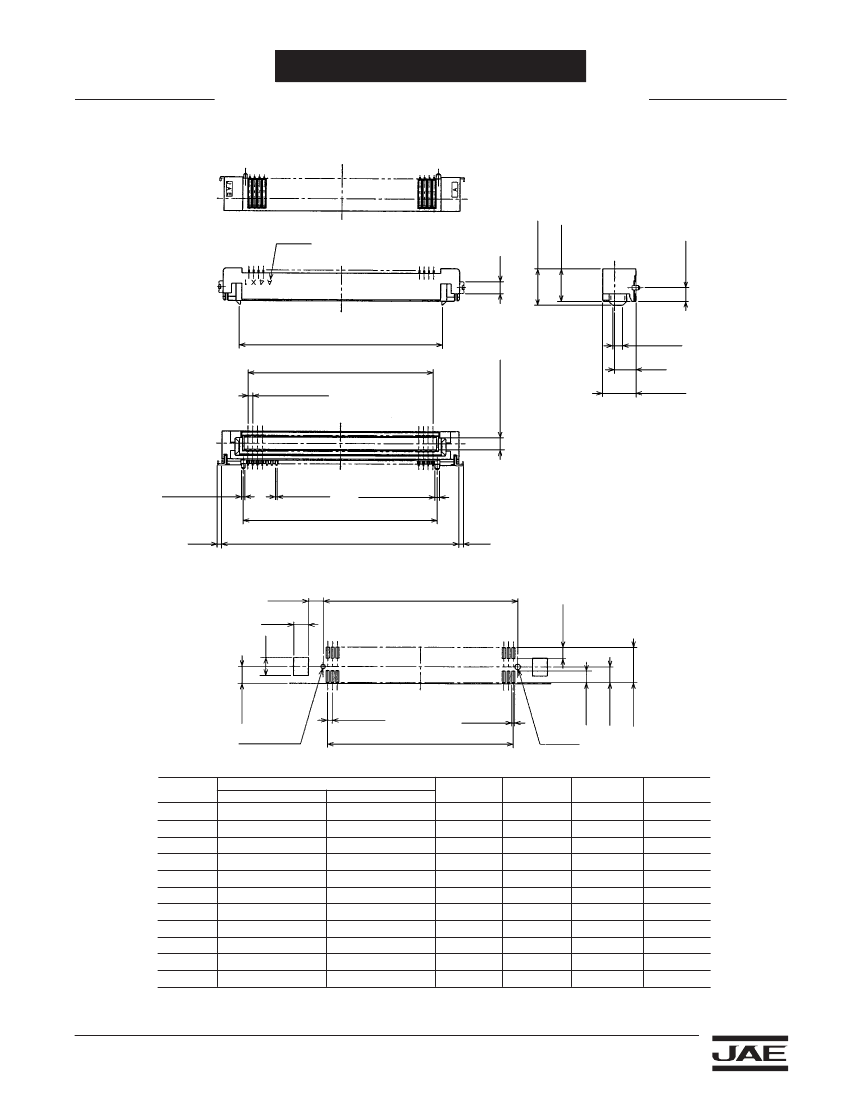

KX14 • STRAIGHT RECEPTACLE
Note 1: Shown below is mounting type D with polarization key.
Note 2: Mounting side configuration for 200 contacts is different. Please consult JAE.
2 (.079)
±
0.1 (.004)
(
Flat Area)
A
±
0.1 (.004)
3.7 (.146)
±
0.2 (.008)
0.8 (.031)
±
0.05 (.002)
(pitch)
0.25
(.010)
Dimension X and Y
Stacking
Height Code
X
0.75 ( .030)
3.75 ( .148)
6.75 ( .266)
9.75 ( .384)
12.75 ( .502)
Y
3.55 ( .140)
6.55 ( .258)
9.55 ( .376)
12.55 ( .494)
15.55 ( .612)
2
5
8
11
14
C
±
0.2 (.008)
0.7
(.028)
D
±
0.3 (.012)
0.7
(.028)
5 (.197)
±
0.15 (.006)
0.7 (.028)
±
0.1 (.004)
0.7 (.028)
±
0.1 (.004)
0.58 (.023) DIA.
±
0.03 (.001)
0.78 (.031) DIA.
±
0.03 (.001)
±
0.2 (.008)
B
±
0.1 (.004)
Applicable PCB Dimension (Ref.)
2.4 (.094)
±
0.1 (.004)
2.5 (.098)
±
0.05 (.002)
2.5 (.098)
B
±
0.1 (.004)
2.7 (.106)
3
(.118)
2.4 (.094)
0.8 (.031)
±
0.05 (.002)
0.7 (.028) DIA.
±
0.03 (.001)
0.5 (.020)
±
0.05 (.002)
A
±
0.1 (.004)
0.9 (.035) DIA.
±
0.03 (.001)
No. of
Contacts
Part Number (Note 1)
With Polarization Key
Without Polarization Key
A
7.2 ( .283)
11.2 ( .441)
15.2 ( .598)
19.2 ( .756)
23.2 ( .913)
27.2 (1.071)
31.2 (1.228)
39.2 (1.543)
47.2 (1.858)
55.2 (2.173)
63.2 (2.488)
80.8 (3.181)
B
8.7 ( .342)
12.7 ( .500)
16.7 ( .657)
20.7 ( .815)
24.7 ( .972)
28.7 (1.130)
32.7 (1.287)
40.7 (1.602)
48.7 (1.917)
56.7 (2.232)
64.7 (2.547)
82.3 (3.240)
±
0.1 (.004)
C
12.3 ( .484)
16.3 ( .642)
20.3 ( .799)
24.3 ( .957)
28.3 (1.114)
32.3 (1.272)
36.3 (1.429)
44.3 (1.744)
52.3 (2.059)
60.3 (2.374)
68.3 (2.689)
85.85 (3.380)
±
0.1 (.004)
20
30
40
50
60
70
80
100
120
140
160
200
KX14- 20K
KX14- 30K
KX14- 40K
KX14- 50K
KX14- 60K
KX14- 70K
KX14- 80K
KX14- 100K
KX14- 120K
KX14- 140K
KX14- 160K
KX14- 200K
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
KX14- 20N
KX14- 30N
KX14- 40N
KX14- 50N
KX14- 60N
KX14- 70N
KX14- 80N
KX14- 100N
KX14- 120N
KX14- 140N
KX14- 160N
KX14- 200N
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
16 ( .630)
20 ( .787)
24 ( .945)
28 (1.102)
32 (1.260)
36 (1.417)
40 (1.575)
48 (1.890)
56 (2.205)
64 (2.520)
72 (2.835)
89.6 (3.528)
Note 1:
– Add stacking height code 2, 5, 8, 11 or 14.
+ – Add contact finish code 1 or blank.
Note 2: Please consult JAE for availability.
* – Add mounting type code B, C, D, E or F.
Refer to Mounting and Stacking Height Tables.
Dimensions in mm (inches).
±
0.3 (.012)
Lot No.
X
Y
D
KX14/15 SERIES CONNECTORS
0.8mm (.031") Contact Spacing, PCB-to-PCB SMT Connectors
KX15 • STRAIGHT PLUG
Note 1: Shown below is mounting type D with polarization key.
Note 2: Mounting side configuration for 200 contacts is different. Please consult JAE.
B
±
0.1 (.004)
±
0.15 (.006)
±
0.03 (.001)
±
0.15 (.006)
Lot No.
0.7 (.028)
A
±
0.1 (.004)
0.8 (.031)
±
0.05 (.002)
(PITCH)
0.7 (.028)
±
0.1 (.004)
2.05 (.081)
±
0.1 (.004)
(Flat Area)
±
0.1 (.004)
4.1 (.161)
±
0.1 (.004)
±
0.2 (.008)
0.25 (.010)
±
0.1 (.004)
2 (.079)
Dimension X and Y
Stacking
Height Code
X
Y
0.58 (.023) DIA.
0.78 (.031) DIA.
±
0.03 (.001)
(Note 4)
5 (.197)
X
3.25 ( .128)
4.25 ( .167)
5.25 ( .207)
±
0.3 (.012)
Y
3.75 ( .148)
4.75 ( .187)
5.75 ( .226)
2
C
±
0.2 (.008)
0.7 (.028)
D
±
0.3 (.012)
0.7 (.028)
3
4
Applicable PCB Dimension (Ref.)
2.1 (.083)
±
0.05 (.002)
±
0.1 (.004)
2.5 (.098)
2.5
(.098)
B
±
0.1 (.004)
2.4 (.094)
3
(.118)
2.1 (.083)
0.7 (.028) DIA.
±
0.03 (.001)
0.8 (.031)
±
0.05 (.002)
0.5 (.020)
±
0.05 (.002)
±
0.1 (.004)
A
±
0.1 (.004)
0.9 (.035) DIA.
±
0.03 (.001)
No. of
Contacts
Part Number (Note 1)
With Polarization Key
Without Polarization Key
A
7.2 ( .283)
11.2 ( .441)
15.2 ( .598)
19.2 ( .756)
23.2 ( .913)
27.2 (1.071)
31.2 (1.228)
39.2 (1.543)
47.2 (1.858)
55.2 (2.173)
63.2 (2.488)
80.8 (3.181)
B
8.7 ( .342)
12.7 ( .500)
16.7 ( .657)
20.7 ( .815)
24.7 ( .972)
28.7 (1.130)
32.7 (1.287)
40.7 (1.602)
48.7 (1.917)
56.7 (2.232)
64.7 (2.547)
82.3 (3.240)
C
10.6 ( .417)
14.6 ( .575)
18.6 ( .732)
22.6 ( .890)
26.6 (1.047)
30.6 (1.205)
34.6 (1.362)
42.6 (1.677)
50.6 (1.992)
58.6 (2.307)
66.6 (2.622)
84.2 (3.315)
16
20
24
28
32
36
40
48
56
64
72
±
0.1 (.004)
D
( .630)
( .787)
( .945)
(1.102)
(1.260)
(1.417)
(1.575)
(1.890)
(2.205)
(2.520)
(2.835)
20
30
40
50
60
70
80
100
120
140
160
200
KX15- 20K
KX15- 30K
KX15- 40K
KX15- 50K
KX15- 60K
KX15- 70K
KX15- 80K
KX15- 100K
KX15- 120K
KX15- 140K
KX15- 160K
KX15- 200K
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
KX15- 20N
KX15- 30N
KX15- 40N
KX15- 50N
KX15- 60N
KX15- 70N
KX15- 80N
KX15- 100N
KX15- 120N
KX15- 140N
KX15- 160N
KX15- 200N
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
*+
89.6 (3.528)
Note 1:
– Add stacking height code 2, 3. or 4.
+ – Add contact finish code 1 or blank.
Note 2: Please consult JAE for availability.
* – Add mounting type code B, C, D, E or F.
Refer to Mounting and Stacking Height Tables.
Dimensions in mm (inches).
KX14/15 SERIES CONNECTORS
0.8mm (.031") Contact Spacing, PCB-to-PCB SMT Connectors
KX15 • RIGHT ANGLE PLUG
Note: Shown below is mounting type D with polarization key.
6.15 (.242)
±
0.3 (.012)
5.5 (.217)
2.3 (.091)
1.7 (.067)
±
0.2 (.008)
±
0.15 (.006)
Lot No.
±
0.3 (.012)
C
±
0.2 (.008)
2.05 (.081)
±
0.1 (.004)
(Flat Area)
2
(.079)
A
±
0.1 (.004)
0.8 (.031)
±
0.05 (.002)
(pitch)
3.7
(.146)
5.75 (.226)
0.58 (.023) DIA.
±
0.03 (.001)
0.25 (.010)
±
0.1 (.004)
0.78 (.031) DIA.
±
0.03 (.001)
B
±
0.1 (.004)
0.8
(.031)
D
±
0.3 (.012)
0.8
(.031)
Applicable PCB Dimension (Ref.)
2.5 (.098)
±
0.05 (.002)
B
±
0.1 (.004)
1.9 (.075)
2.5
(.098)
3
(.118)
±
0.1 (.004)
2.8 (.110)
1.9 (.075)
2.6 (.102)
±
0.1 (.004)
±
0.1 (.004)
5.9 (.232)
±
0.1 (.004)
0.8 (.031)
±
0.05 (.002)
0.5 (.020)
±
0.05 (.002)
0.7 (.028) DIA.
±
0.03 (.001)
A
±
0.1 (.004)
0.9 (.035) DIA.
±
0.03 (.001)
No. of
Contacts
Part Number (Note 1)
With Polarization Key
Without Polarization Key
A
7.2 ( .283)
11.2 ( .441)
15.2 ( .598)
19.2 ( .756)
23.2 ( .913)
27.2 (1.071)
31.2 (1.228)
39.2 (1.543)
47.2 (1.858)
55.2 (2.173)
63.2 (2.488)
B
8.7 ( .342)
12.7 ( .500)
16.7 ( .657)
20.7 ( .815)
24.7 ( .972)
28.7 (1.130)
32.7 (1.287)
40.7 (1.602)
48.7 (1.917)
56.7 (2.232)
64.7 (2.547)
C
10.3 ( .406)
14.3 ( .563)
18.3 ( .720)
22.3 ( .878)
26.3 (1.035)
30.3 (1.193)
34.3 (1.350)
42.3 (1.665)
50.3 (1.980)
58.3 (2.295)
66.3 (2.610)
±
0.1 (.004)
D
16 ( .630)
20 ( .787)
24 ( .945)
28 (1.102)
32 (1.260)
36 (1.417)
40 (1.575)
48 (1.890)
56 (2.205)
64 (2.520)
72 (2.835)
20
30
40
50
60
70
80
100
120
140
160
KX15- 20KL*
KX15- 30KL*
KX15- 40KL*
KX15- 50KL*
KX15- 60KL*
KX15- 70KL*
KX15- 80KL*
KX15- 100KL*
KX15- 120KL*
KX15- 140KL*
KX15- 160KL*
KX15- 20NL*
KX15- 30NL*
KX15- 40NL*
KX15- 50NL*
KX15- 60NL*
KX15- 70NL*
KX15- 80NL*
KX15-100NL*
KX15-120NL*
KX15-140NL*
KX15-160NL*
Note 1: * – Add mounting type code D, F, J or N.
Note 2: Please consult JAE for availability.
Refer to Mounting and Stacking Height Tables.
Dimensions in mm (inches).
±
0.3 (.012)
京公网安备 11010802033920号
EEWORLD
