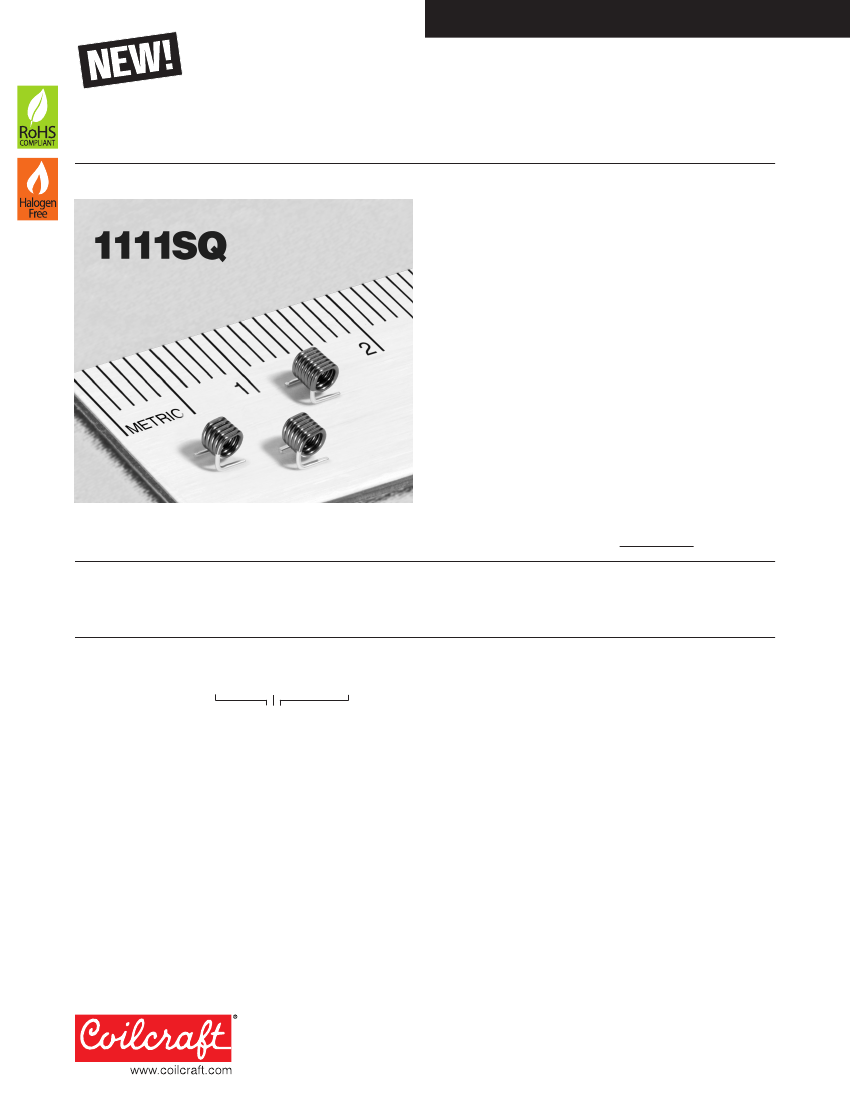

Square Air Core Inductors – 1111SQ
• Excellent Q factors – 210 at 400 MHz!
• Inductance values from 27 to 47 nH
• Flat top and bottom for reliable pick and place and mechanical
stability
Terminations
RoHS compliant tin-silver over copper
Environment
RoHS compliant, halogen free
Weight
34 – 50 mg
Ambient temperature
–40°C to +125°C with
Irms
current, +125°C
to +145°C with derated current
Storage temperature
Component: –40°C to +145°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Temperature Coefficient of Inductance (TCL)
+5 to +70 ppm/°C
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
One per billion hours / one billion hours, calculated per Telcordia SR-332
Packaging
600/7″ reel; 2500/13″ reel; Plastic tape: 12 mm wide,
0.35 mm thick, 8 mm pocket spacing, 3.05 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other
solvents, see Doc787_PCB_Washing.pdf
Part
number
1
Inductance
2
(nH)
27
30
33
36
39
43
47
Percent
tolerance
5,2
5,2
5,2
5,2
5,2
5,2
5,2
Q
3
typ
200
200
200
200
200
200
200
Test
frequency
(MHz)
400
400
400
400
400
400
400
SRF min
4
(GHz)
2.60
2.40
2.30
2.30
2.20
2.20
2.20
DCR (mOhm)
typ
max
7.0
7.2
8.3
8.5
8.7
9.4
9.8
8.1
8.3
9.5
9.8
10.0
10.8
11.3
Irms
5
(A)
5.5
5.5
4.8
4.8
4.8
4.4
4.4
1111SQ-27N_E_
1111SQ-30N_E_
1111SQ-33N_E_
1111SQ-36N_E_
1111SQ-39N_E_
1111SQ-43N_E_
1111SQ-47N_E_
1. When ordering, specify
tolerance, termination
and
packaging
codes:
1111SQ-47NJEC
Tolerance: G
= 2%
J
= 5%
(Table shows stock tolerances in bold.)
Termination: E
= RoHS compliant tin-silver (96.5/3.5) over copper.
Special order, added cost:
T
= RoHS tin-silver-copper (95.5/4/0.5) over copper or
S
= non-RoHS tin-lead (63/37) over copper.
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (600 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape (2500 parts per full reel). Factory order only, not stocked.
2. Inductance measured at specified test frequency, 0.1 Vrms, 0 A using an Agilent/HP 4286A LCR meter or equivalent with a Coilcraft CCF1191C test
fixture.
3. Q measured at specified test frequency, using an Agilent/HP 4291A impedance analyzer or equivalent.
4. SRF measured using an Agilent/HP 8753 network analyzer or equivalent with a Coilcraft CCF1143 test fixture.
5. Current that causes a 20°C temperature rise from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 990-1
Revised 3/25/13
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 990-2

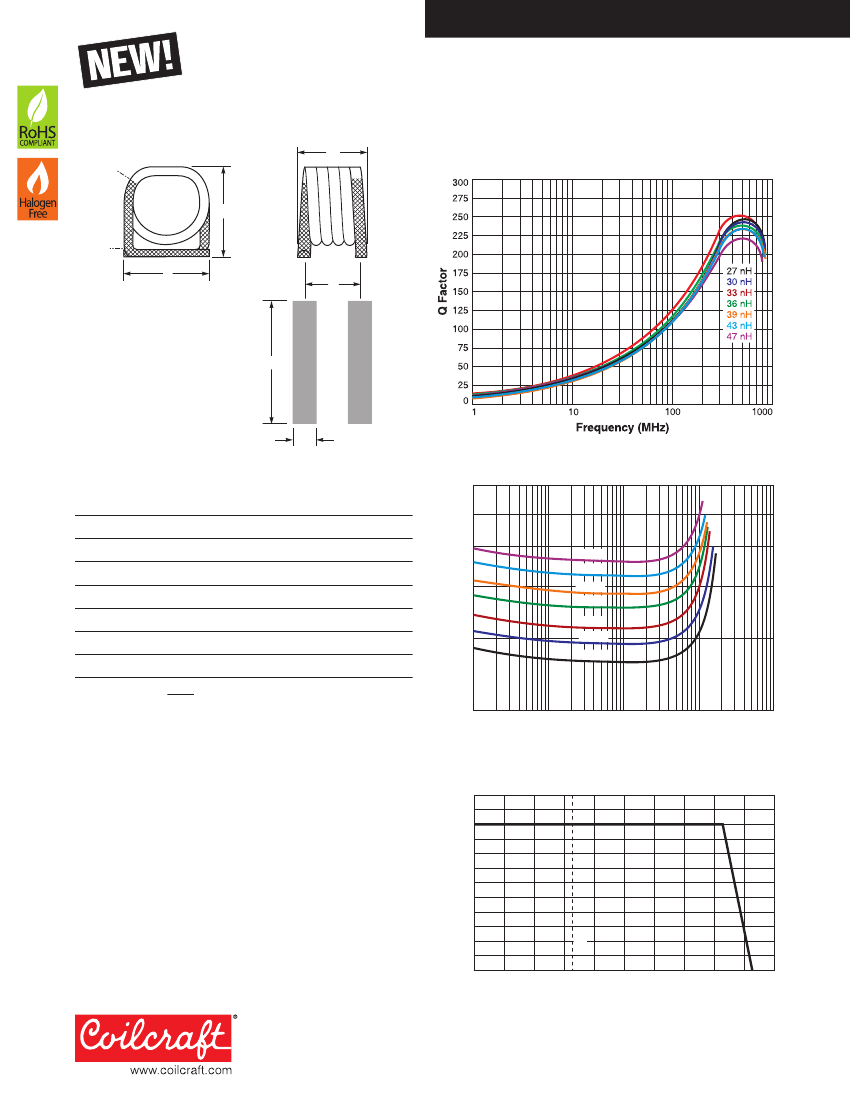

Square Air Core Inductors – 1111SQ
A
max
Typical Q vs Frequency
Strip
length
min
B
C
D
E
F
Recommended
Land Pattern
Part
number
1111SQ-27N
1111SQ-30N
1111SQ-33N
1111SQ-36N
1111SQ-39N
1111SQ-43N
1111SQ-47N
A
0.105±0.010
2,67 ±0,254
0.105 ±0.010
2,67 ±0,254
0.115 ±0.010
2,92 ±0,254
0.115 ±0.010
2,92 ±0,254
0.115 ±0.010
2,92 ±0,254
0.130 ±0.010
3,30 ±0,254
0.130 ±0.010
3,30 ±0,254
inches
.
mm
B
0.105 ±0.015
2,67 ±0,127
0.105 ±0.015
2,67 ±0,127
0.105 ±0.015
2,67 ±0,127
0.105 ±0.015
2,67 ±0,127
0.105 ±0.015
2,67 ±0,127
0.105 ±0.015
2,67 ±0,127
0.105 ±0.015
2,67 ±0,127
C
0.110 ±0.005
2,79 ±0,127
0.110 ±0.005
2,79 ±0,127
0.110 ±0.005
2,79 ±0,127
0.110 ±0.005
2,79 ±0,127
0.110 ±0.005
2,79 ±0,127
0.110 ±0.005
2,79 ±0,127
0.110 ±0.005
2,79 ±0,127
D
0.090
2,29
0.090
2,29
0.100
2,54
0.100
2,54
0.100
2,54
0.110
2,79
0.110
2,79
E
0.120
3,05
0.120
3,05
0.120
3,05
0.120
3,05
0.120
3,05
0.120
3,05
0.120
3,05
F
0.040
1,02
0.040
1,02
0.040
1,02
0.040
1,02
0.040
1,02
0.040
1,02
0.040
1,02
Typical L vs Frequency
70
60
50
Inductance (nH)
47 nH
43 nH
39 nH
36 nH
33 nH
40
30
30 nH
27 nH
All dimensions are in
20
0.001
0.01
0.1
1
10
Frequency (GHz)
Irms Derating
120
Percent of rated
I
rms
100
80
60
40
20
0
-40
-20
0
20
40
60
80
100
120
140 160
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
25°C
Document 720-2
Revised 03/25/13
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
