PC814XNYJ00F Overview

1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

PC814XNYJ00F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SHARP
package instruction	ROHS COMPLIANT, PLASTIC, DIP-4
Reach Compliance Code	unknow
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Mi	80 V
Configuration	SINGLE
Nominal current transfer ratio	20%
Maximum dark power	100 nA
Maximum forward current	0.05 A
Maximum insulation voltage	5000 V
JESD-609 code	e2
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Copper (Sn/Cu)

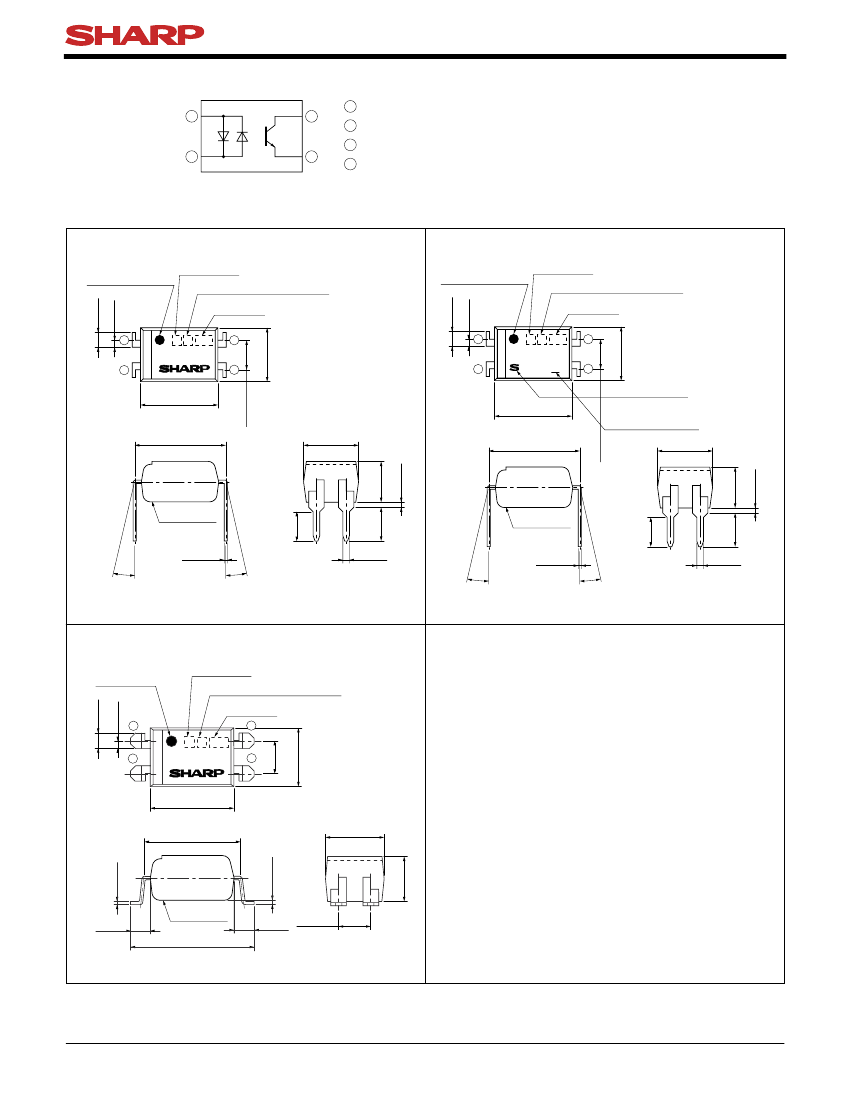

Preview

Download Datasheet

View All

PC814XJ0000F Series

PC814XJ0000F

Series

∗

DIP 4pin

AC Input Photocoupler

4-channel package type is also available.

(model No.

PC844XJ0000F Series)

■

Description

PC814XJ0000F Series

contains an IRED optically

coupled to a phototransistor.

It is packaged in a 4pin DIP, available in SMT gullw-

ing lead-form option.

Input-output isolation voltage(rms) is 5.0kV.

Collector-emitter voltage is 80V and CTR is 20% to

300% at input current of

±1mA.

■

Agency approvals/Compliance

1. Recognized by UL1577, file No. E64380 (as model

No.

PC814)

2. Approved by VDE (DIN EN60747-5-2

(∗)

) (as an op-

tion), file No. 40008087 (as model No.

PC814)

3. Package resin : UL flammability grade (94V-0)

(∗)

DIN EN60747-5-2 : successor standard of DIN VDE0884

■

Features

1. 4pin DIP package

2. Double transfer mold package (Ideal for Flow Solder-

ing)

3. AC input type

4. High collector-emitter voltage (V

CEO

: 80V)

5. Current transfer ratio (CTR : MIN. 20% at I

=±1mA,

=5V)

6. High isolation voltage between input and output

iso(rms)

: 5.0 kV)

7. Lead-free and RoHS directive compliant

■

Applications

1. Programmable controllers

2. Telephone sets, telephone exchangers

3. System appliances

4. Signal transmission between circuits of different po-

tentials and impedances

Notice The content of data sheet is subject to change without prior notice.

In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP

devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.

Sheet No.: D2-A03503EN

Date Sep. 1. 2006

PC814XNYJ00F Related Products

	PC814XNYJ00F	PC814X1J000F	PC814X1YJ00F	PC814XJ0000F	PC814XP1J00F	PC814XPJ000F
Description	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	1 CHANNEL AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SHARP	SHARP	SHARP	SHARP	SHARP	SHARP
package instruction	ROHS COMPLIANT, PLASTIC, DIP-4	ROHS COMPLIANT, PLASTIC, DIP-4	ROHS COMPLIANT, PLASTIC, DIP-4	ROHS COMPLIANT, PLASTIC, DIP-4	ROHS COMPLIANT, PLASTIC, SMT, DIP-4	ROHS COMPLIANT, PLASTIC, SMT, DIP-4
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Coll-Emtr Bkdn Voltage-Mi	80 V	80 V	80 V	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	20%	50%	50%	20%	50%	20%
Maximum dark power	100 nA	100 nA	100 nA	100 nA	100 nA	100 nA
Maximum forward current	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
JESD-609 code	e2	e2	e2	e2	e2	e2
Number of components	1	1	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER	AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)
