TPSMB8.2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TPSMB8.2A

TPSMB8.2A: Description600 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size102KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

TPSMB8.2A Overview

600 W, UNIDIRECTIONAL, SILICON, TVS DIODE

TPSMB8.2A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Reach Compliance Code	unknow
Breakdown voltage nominal value	8.2 V
Maximum clamping voltage	12.1 V
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-609 code	e0
polarity	UNIDIRECTIONAL
Maximum repetitive peak reverse voltage	7.02 V
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

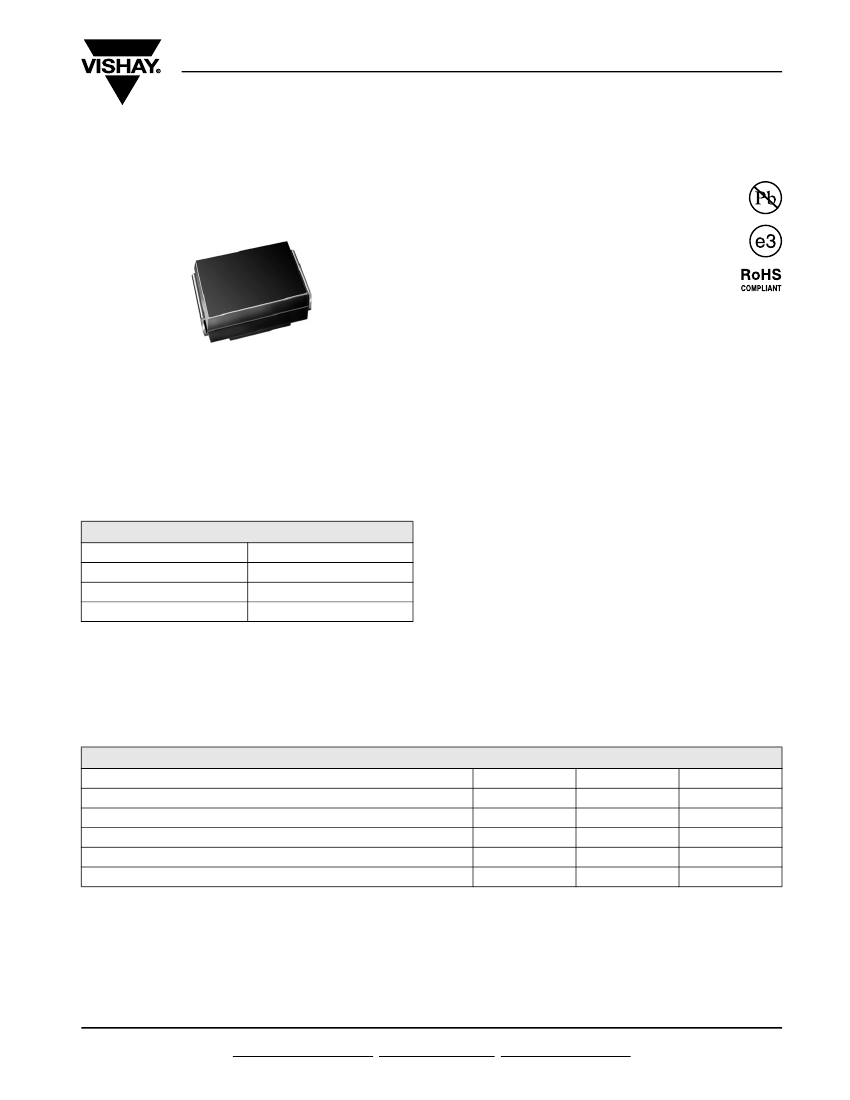

TPSMB6.8 thru TPSMB43A

Vishay General Semiconductor

Surface Mount Automotive Transient Voltage Suppressors

High Temperature Stability and High Reliability Conditions

FEATURES

• Patented PAR

construction

• Available in uni-directional polarity only

• 600 W peak pulse power capability with a

10/1000 µs waveform, repetitive rate (duty

cycle): 0.01 %

• Excellent clamping capability

• Very fast response time

• Low incremental surge resistance

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 260 °C

• Solder dip 260 °C, 40 s

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and

lighting on ICs, MOSFET, signal lines of sensor units

for consumer, computer, industrial, automotive and

telecommunication.

MECHANICAL DATA

Case:

DO-214AA (SMB)

Molding compound meets UL 94 V-0 flammability

rating

Base P/NHE3 - RoHS compliant, high reliability/

automotive grade (AEC Q101 qualified)

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

HE3 suffix meets JESD 201 class 2 whisker test

Polarity:

Color band denotes cathode end

ted*

aten

*Patent #'s

4,980,315

5,166,769

5,278,094

DO-214AA (SMB)

PRIMARY CHARACTERISTICS

PPM

FSM

max.

6.8 V to 43 V

600 W

75 A

185 °C

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak pulse power dissipation with a 10/1000 µs waveform

(1)(2)

(Fig. 1)

Peak pulse current with a 10/1000 µs waveform

(1)

(Fig. 3)

Peak forward surge current 8.3 ms single half sine-wave

(2)(3)

Instantaneous forward voltage at 50 A

(3)

Operating junction and storage temperature range

Notes:

(1) Non-repetitive current pulse, per Fig. 3 and derated above T

= 25 °C per Fig. 2

(2) Mounted on 0.2 x 0.2" (5.0 x 5.0 mm) land areas per figure

(3) Mounted on 8.3 ms single half sine-wave duty cycle = 4 pulses per minute maximum

SYMBOL

PPM

FSM

, T

STG

VALUE

600

See next table

3.5

- 65 to + 185

UNIT

°C

Document Number: 88406

Revision: 21-Oct-08

For technical questions within your region, please contact one of the following:

PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com

www.vishay.com
