DINLS-F3132SFW1-2-L: DescriptionBoard Euro Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Plug; CategoryThe connector The connector; File Size578KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

DINLS-F3132SFW1-2-L Overview

Board Euro Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Ivory Insulator, Plug

DINLS-F3132SFW1-2-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.413 inch
subject depth	0.453 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	IVORY
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DINL
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

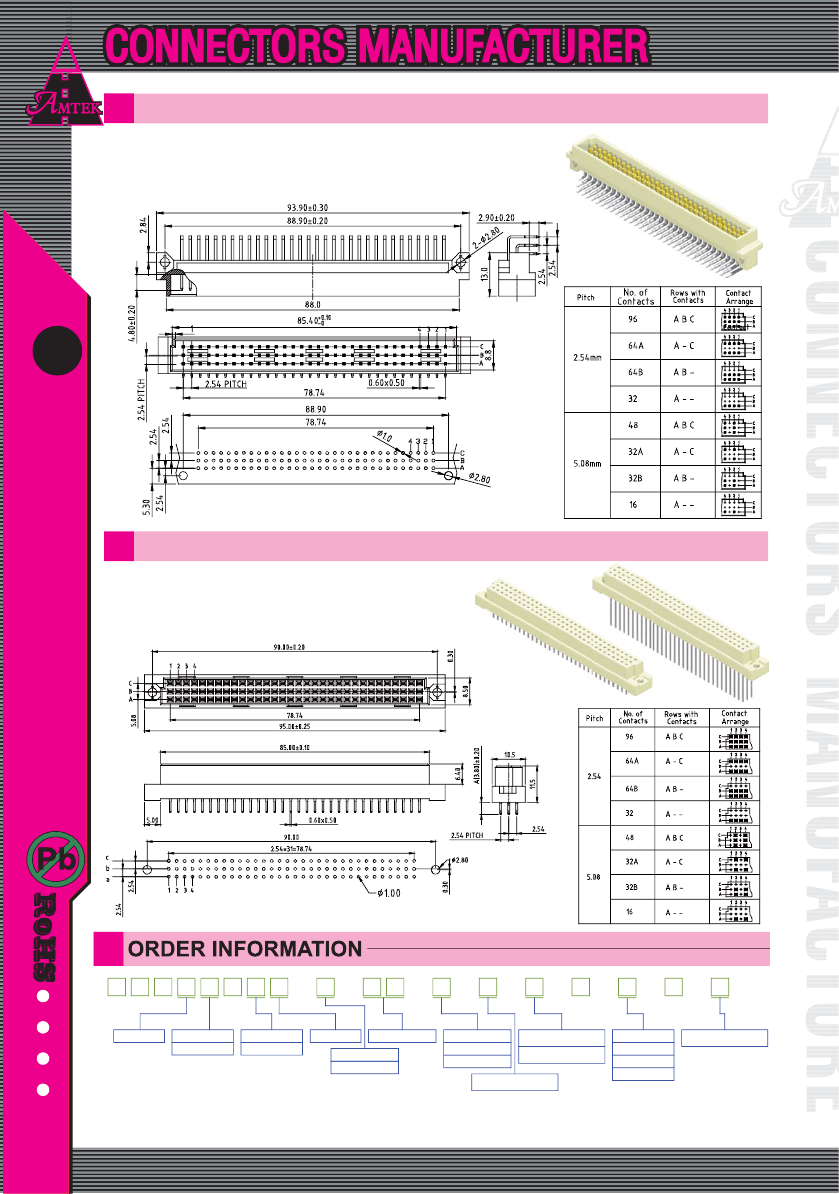

Preview

Download Datasheet

View All

DIN 41612 Long Body C Type Male

Specifications

Current Rate:2 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-55°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Selective Gold Plating

IN 41612 Conn. Series

Part No.:DINLR-M3XX-L

DIN 41612 Long Body C Type Female

Specifications

Current Rate:2 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:1000V AC for one minute

Operation Temperature:-55°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:PBT

Terminal:Copper Alloy

Plating:Selective Gold Plating

Part No.:DINLS-F3XX-L

I N L X

R :R ig ht A ng le

S :S traight

- X 3

M :M ale

F :F e m ale

3 :3 Row s

X X

N o. o f Co ntacts

S :S e le ctive

S F :S e le ctive 15"

S D :S e le ctive 30 u"

1 :D im . A = 4 .0

2 :D im . A = 2 .5

3:D im . A = 13.0

L :R o H S + P B T

L :L on g B ody

1 :W /O B oa rd lock

2 :W ith B o ardlock

1 :P itch 2.54m m

2 :P itch 5.08m m

For DINLS-F3XXX Only

W :Ivo ry Insulator

Standard Recommended

9-1

www.amtek-co.com.tw
