RoHS
2X4 RJ45 Connector
AR24-3769
10/100/1000 Base-T Giga Bit for Ethernet Application
Impedance: 100OHMS
RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
Standard Operating Temp: 0ºC to +70ºC
Contact Factory for Industrial Temp.
Available in other Circuit Designs
Optional Gold Plating Thickness
Other LED Patterns available
Electrical Specifications @ 25°C
Part
Number
AR24-3769
OCL(uH Min)
@ 100kHz, 0.1V
With 8mA DC Bias
350
Turns Ratio
chip: cable
(±2%)
1CT:1CT
Insertion Loss
(dB Max)
1-100MHz
-1.0
1-30MHz
-18
Return Loss
(dB Min)
30-60MHz
-18-20Log(F/30MHz)
60-80MHz
-12
Electrical Specifications @ 25°C
CMR
CDMR
Cross Talk
HI-POT
(dB Min)
(dB Min)
(dB Min)
(Vrms)
0.5-1MHz 10MHz 30MHz 50MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.3-1MHz 10MHz 30MHz 60MHz 100MHz 0.5mA/2Sec.
-50
-50
-30
1500
-47
-30
-42
-45
-50
-50
-40
-35
-37
-50
-50
-40
All specifications subject to change without notice.

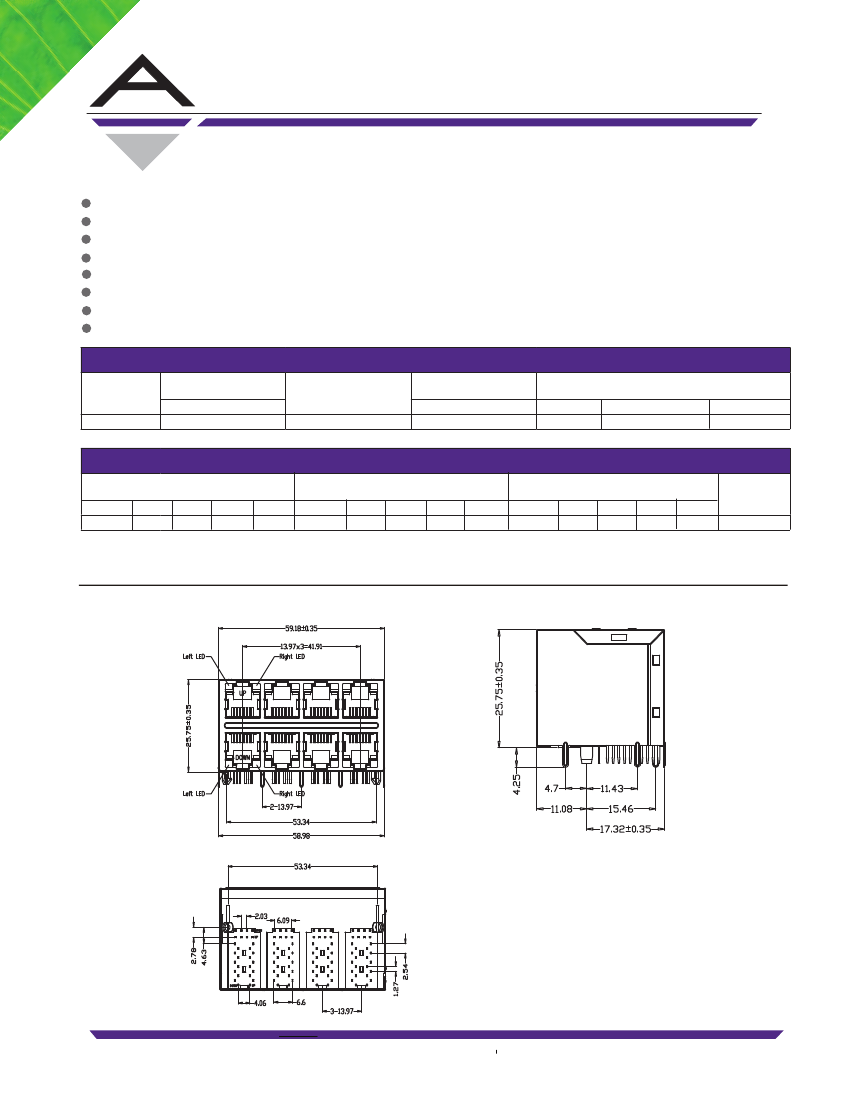

MECHANICAL
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
11/02/12
15
www.alliedcomponents.com
RoHS
RoHS
2X4 RJ45 Connector
AR24-3769

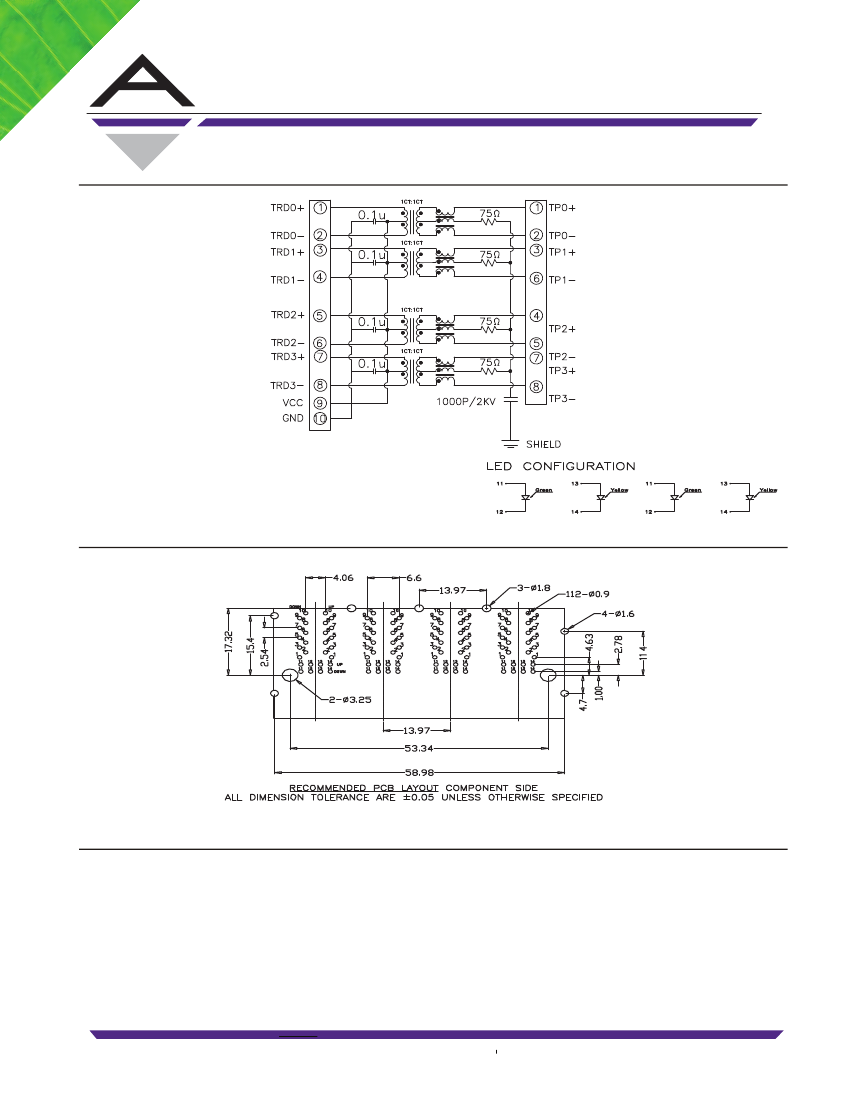

SCHEMATICS
PCB LAYOUT
NOTES
0.20mm THICKNESS BRASS C2680 H.
PLATING NICKEL 30u"-50u"
2. Housing-
Standard Material Nylon66, Glass filled
Polyester UL94V-0 Standard Color Black.
3. RJ Terminal- Plastic: PBT+30% GF, UL94V-0, Standard
Color Black.
Pin: 0.35mm Thickness Phos-Bronze C5210 EH.
Plating: Nickel 40u"-60u" for all and Sn 100%, and
30u” Gold Plating.
4. Input Terminal: Nylon66, Glass Filled, UL94V-0,
Standard Color Black.
Pin: 0.35mm Thickness Phos-Bronze C2680.
Plating: Nickel 40u"-60u" for all and Sn 100%.
1. Shield-
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
11/02/12
15
www.alliedcomponents.com
