BG153-099-A-0320-N-D: DescriptionBoard Connector, 99 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size143KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG153-099-A-0320-N-D Overview

Board Connector, 99 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,

BG153-099-A-0320-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.291 inch
subject depth	0.335 inch
body length	3.32 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BG153
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	99

Preview

Download Datasheet

View All

1

2

3

4

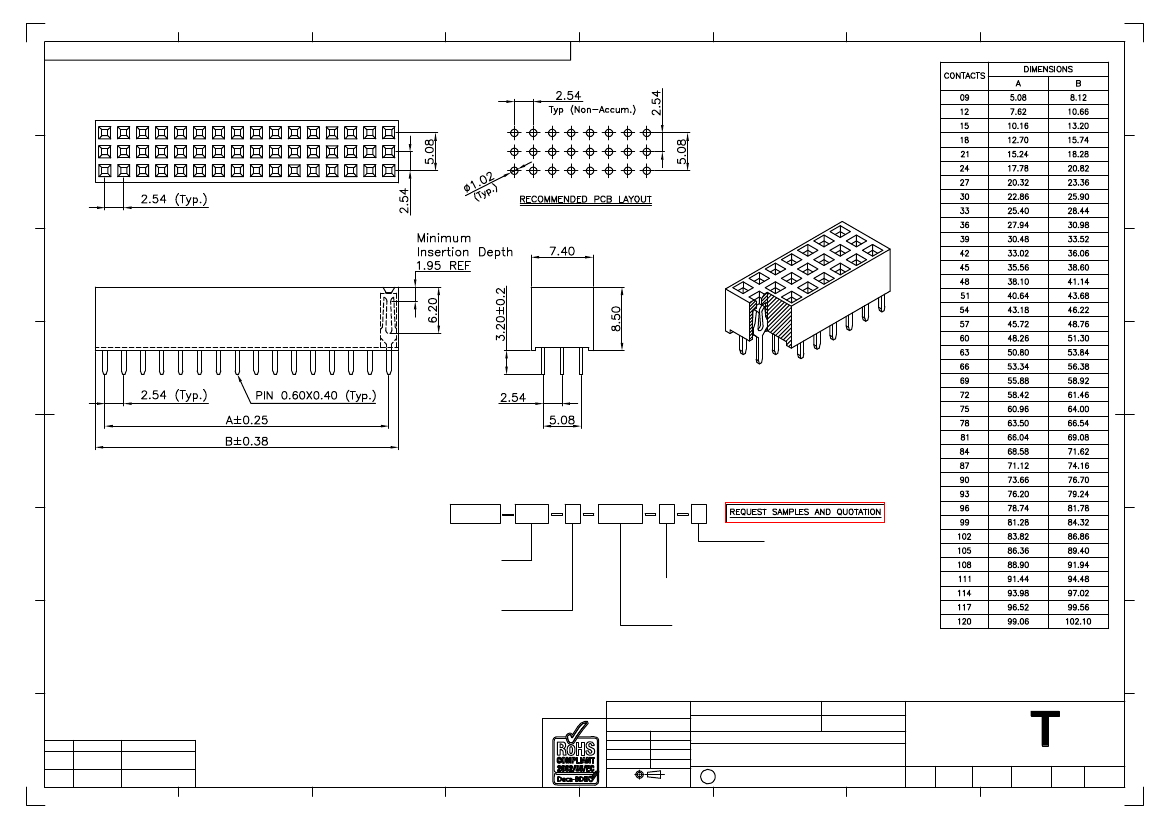

Global Connector Technology Ltd. - BG153: 2.54mm PITCH SOCKET, TRIPLE ROW, THROUGH HOLE, VERTICAL

A

5

6

7

8

A

B

C

D

E

Ordering Grid

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

F

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

:

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

SOLDERING PROCESS

可焊性

:

NYLON 6T (STANDARD

标准物料

) -

G

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

)

BG042

BG043

BG153

No. of Contacts

09 to 120

e.g. 12 = 012

XXX

X

0320

X

Packing Options

D = Tube (Standard)

F = Tube with Film

G = Plastic Box

F

Contact Plating

A = Gold Flash All Over (Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator Material

N = Nylon 6T (Standard)

L = LCP

Tail Length (1/100mm)

0320 = 3.20mm

G

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.20

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BG153

Description:-

08 APR 07

H

By

DETAIL

REV

DATE

BC

DRAWING

RELEASE

A

08/04/07

AJO

SELECTABLE

LENGTH REMOVED

B

16/07/12

2.54mm PITCH SOCKET, TRIPLE ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

GC

Material

See Note

H

Sheet No.

E & OE

1/1

C

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

B

Drawn by

BC

1

2

3

4

5

6

7

8
