MOD-R-1X12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MOD-R-1X12

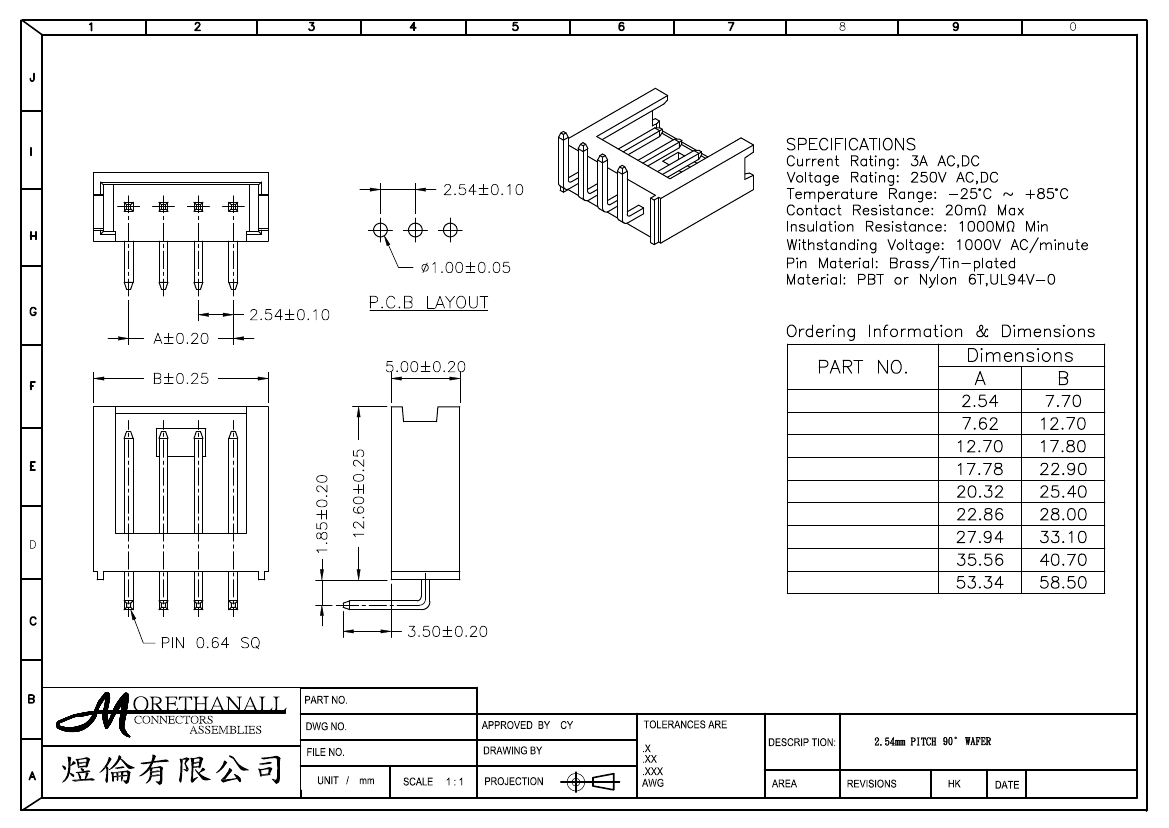

MOD-R-1X12: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size211KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

MOD-R-1X12 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

MOD-R-1X12 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.582 inch
body length	1.303 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	MOD-R
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

MOD-R-1X02

MOD-R-1X04

MOD-R-1X06

MOD-R-1X08

MOD-R-1X09

MOD-R-1X10

MOD-R-1X12

MOD-R-1X15

MOD-R-1X22

MOD-R-1Xxx

MOD-R-1X12 Related Products

	MOD-R-1X12	MOD-R-1X10	MOD-R-1X15	MOD-R-1X08	MOD-R-1X04	MOD-R-1X22	MOD-R-1X09	MOD-R-1X06	MOD-R-1X02
Description	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.582 inch	0.582 inch	0.582 inch	0.582 inch	0.582 inch	0.582 inch	0.582 inch	0.582 inch	0.582 inch
body length	1.303 inch	1.102 inch	1.602 inch	0.902 inch	0.5 inch	2.303 inch	1 inch	0.701 inch	0.303 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	MOD-R	MOD-R	MOD-R	MOD-R	MOD-R	MOD-R	MOD-R	MOD-R	MOD-R
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	10	15	8	4	22	9	6	2
Maker	-	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	-	-	-
