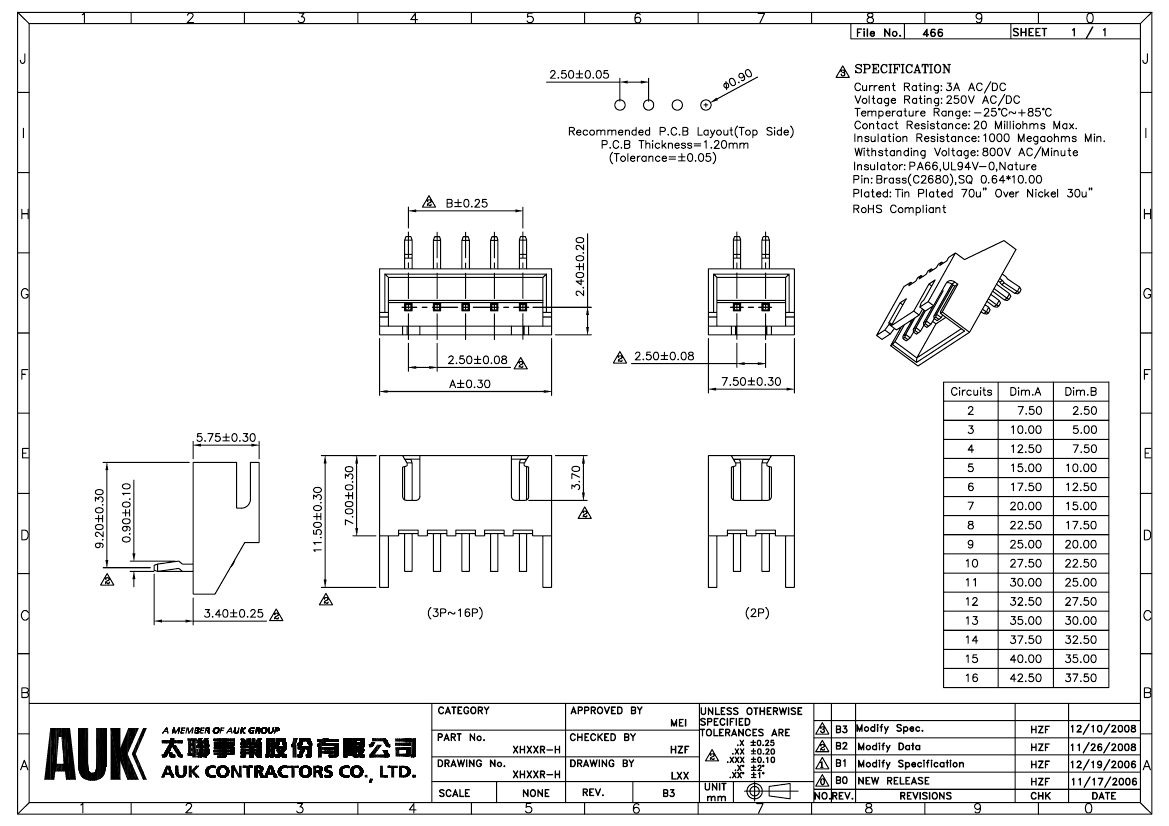

XH03R-H: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Guide Slot, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size181KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric Compare View All

XH03R-H Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Guide Slot, Natural Insulator, Receptacle

XH03R-H Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.226 inch
subject depth	0.453 inch
body length	0.394 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	XH
Plug contact pitch	0.098 inch
Installation option 1	GUIDE SLOT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	69u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	3
