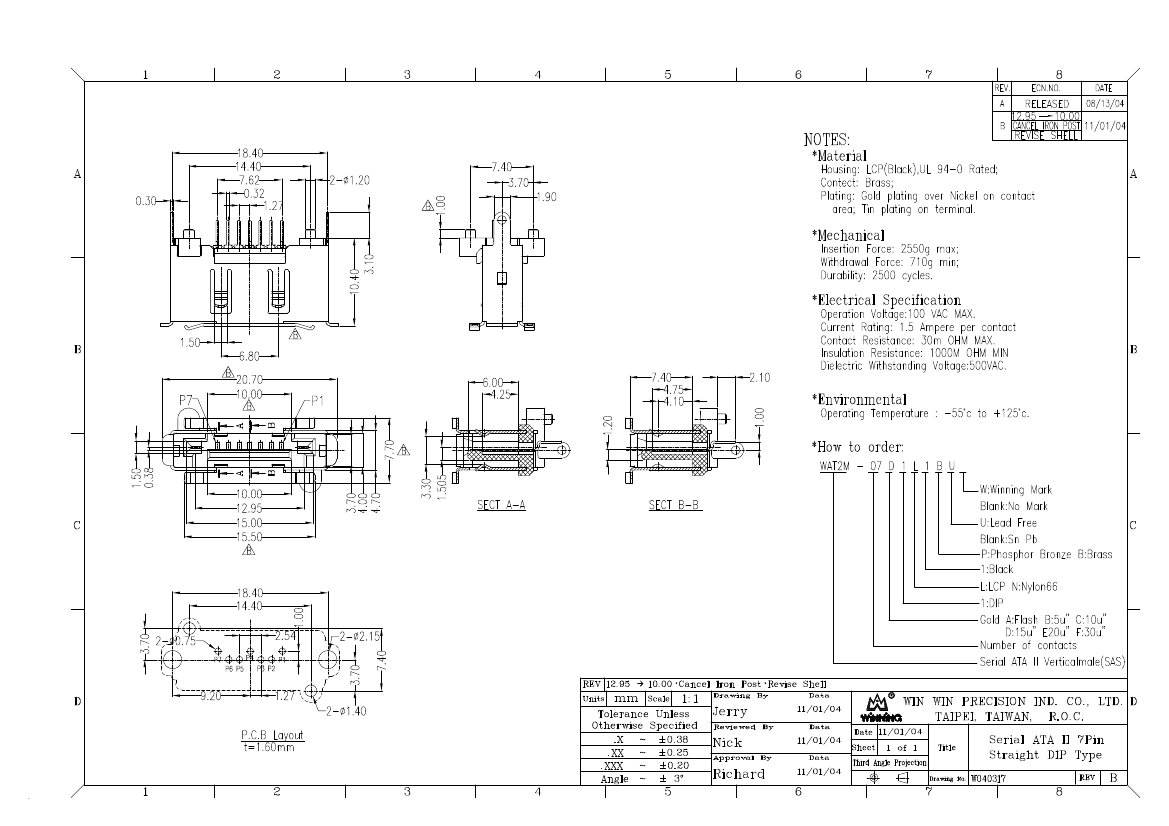

Telecom and Datacom Connector, 7 Contact(s), Male, Straight, Solder Terminal, Detent, Receptacle

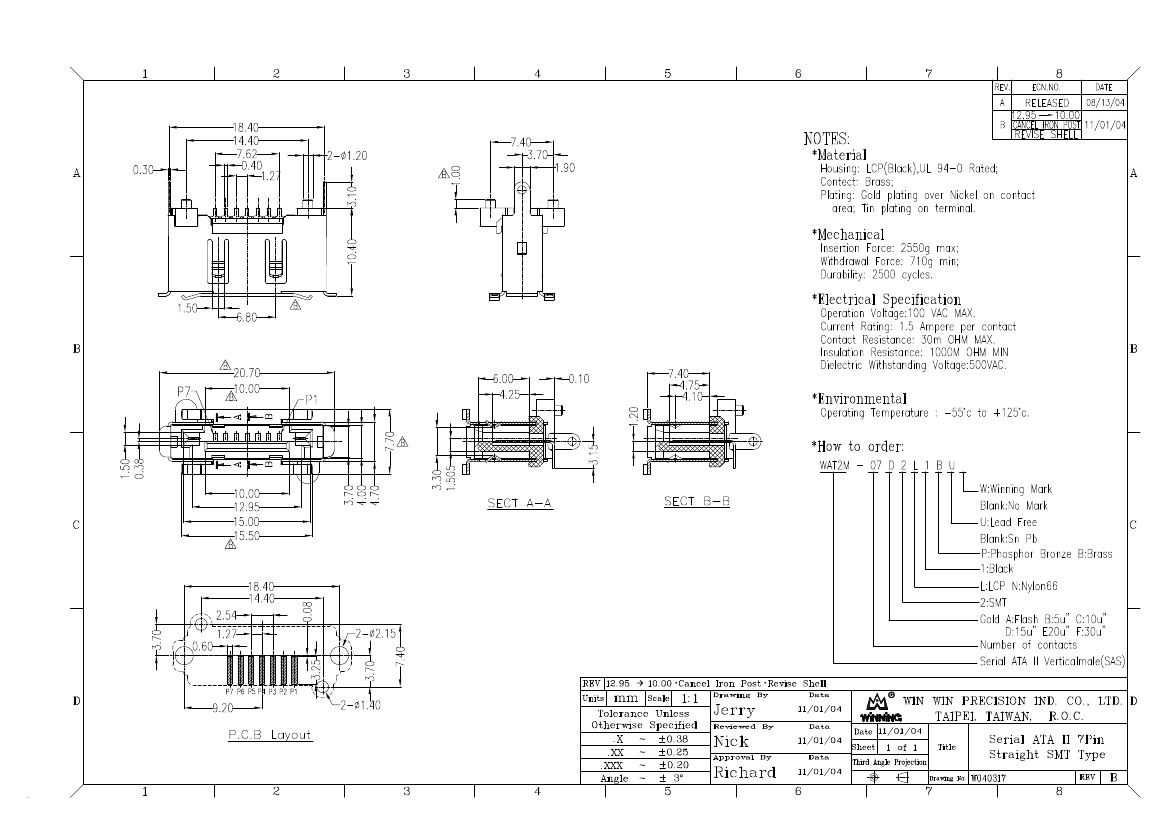

| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Other features | BLACK HOUSING |
| Board mount options | POLARIZATION POST |
| subject depth | 0.409 inch |
| body length | 0.815 inch |
| Body/casing type | RECEPTACLE |
| Connector type | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | MALE |
| Contact material | BRASS |
| Contact resistance | 30 mΩ |
| Contact style | USB, SER A FLAT |
| Dielectric withstand voltage | 500VAC V |
| Durability | 2500 Cycles |
| maximum insertion force | 3.4472 N |
| Insulation resistance | 1000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Installation option 1 | DETENT |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of ports | 1 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | MIXED |
| PCB contact row spacing | .9906 mm |
| Plating thickness | 10u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 1.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.122 inch |
| Termination type | SOLDER |
| Total number of contacts | 7 |
| Evacuation force-minimum value | 1.0008 N |
| WAT2M-07C1L1BW | WAT2M-07B2N1PW | WAT2M-07C1N1P | |
|---|---|---|---|
| Description | Telecom and Datacom Connector, 7 Contact(s), Male, Straight, Solder Terminal, Detent, Receptacle | Telecom and Datacom Connector, 7 Contact(s), Male, Straight, Surface Mount Terminal, Detent, Receptacle | Telecom and Datacom Connector, 7 Contact(s), Male, Straight, Solder Terminal, Detent, Receptacle |
| Reach Compliance Code | unknown | unknown | unknown |
| Other features | BLACK HOUSING | BLACK HOUSING | BLACK HOUSING |
| Board mount options | POLARIZATION POST | POLARIZATION POST | POLARIZATION POST |
| subject depth | 0.409 inch | 0.409 inch | 0.409 inch |
| body length | 0.815 inch | 0.815 inch | 0.815 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR | TELECOM AND DATACOM CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI |
| Contact point gender | MALE | MALE | MALE |
| Contact material | BRASS | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | USB, SER A FLAT | USB, SER A FLAT | USB, SER A FLAT |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| Durability | 2500 Cycles | 2500 Cycles | 2500 Cycles |
| maximum insertion force | 3.4472 N | 3.4472 N | 3.4472 N |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | NYLON | NYLON |
| Installation option 1 | DETENT | DETENT | DETENT |
| Installation option 2 | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 2 | 1 | 2 |
| Number of ports | 1 | 1 | 1 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | MIXED | RECTANGULAR | MIXED |
| Plating thickness | 10u inch | 5u inch | 10u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 1.5 A | 1.5 A | 1.5 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.122 inch | - | 0.122 inch |
| Termination type | SOLDER | SURFACE MOUNT | SOLDER |
| Total number of contacts | 7 | 7 | 7 |
| Evacuation force-minimum value | 1.0008 N | 1.0008 N | 1.0008 N |
| PCB contact row spacing | .9906 mm | - | .9906 mm |
