DBCIDCB13S22BG1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DBCIDCB13S22BG1

Preview

DBCIDCB13S22BG1: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerDUBILIER; Websitehttp://www.dubilier.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCB13S22BG1 Overview

Board Connector, 22 Contact(s), 1 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

DBCIDCB13S22BG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.079 inch
subject depth	0.179 inch
body length	1.732 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	B13
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	22

Preview

Download Datasheet

View All

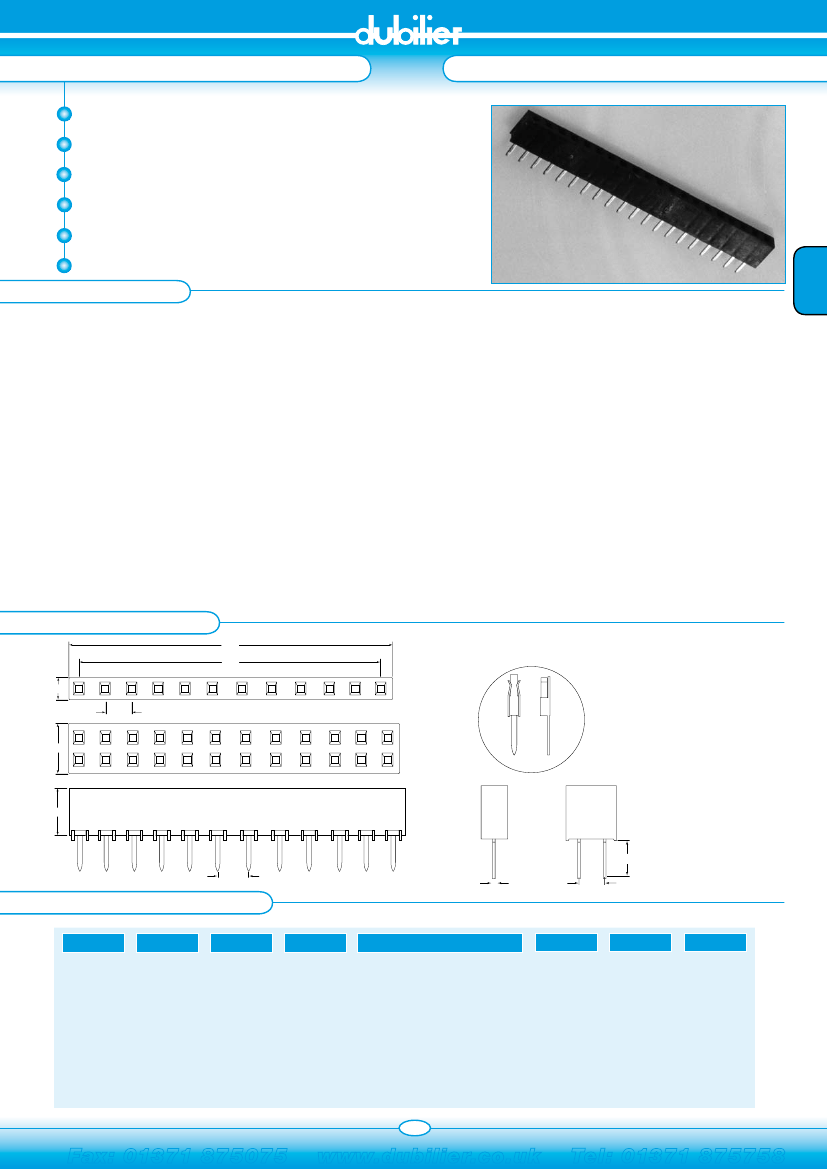

FEMALE HEADERS

Industry compatible

Competitively priced

Single or dual row

No. of contacts 02-80

Gold plated contacts

FEMALE HEADERS - 4.5mm PROFILE

SECTION 8

2.00mm pitch

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Phosphor Bronze

PBT & Glass-Fibre Reinforced UL-94V-0

Operating Temperature:

1 A DC

A

-40°C to + 105°C

Dielectric Withstanding

Voltage:

500V AC for One Minute

Contact Resistance:

2.0

A B

30M Ω Max

A

B

3000M Ω Min

B

2.0

Insulator Resistance:

2.0

A

B

2.0

OUTLINE DRAWING

4.0

A

B

2.0

A = 2.00mm x N° of Contacts

B = (2.00mm x N° of Contacts)-1

4.0

2.0

4.0

4.55

4.0

2.5

2.0

2.5

6

2.5

4.55

2.0

0.2

ORDERING INFORMATION

2.0

DBC

4.55

0.2

2.5

0.2

2.5

6

2.5

0.2

IDC

Connector

2.0

B13

Series

S

Nº of Rows

S = Single Row

D = Dual Row

Dubilier

Connectors

04

0.2

Nº of Contacts/per row

02=2way

Thro to

40=40way

0.2

B

B=Bronze

2.5

G

6

Contact Plating

G= Gold Flash

6

2.5

1

Colour

1=Black

Contact Material

2.0

0.2

211

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
