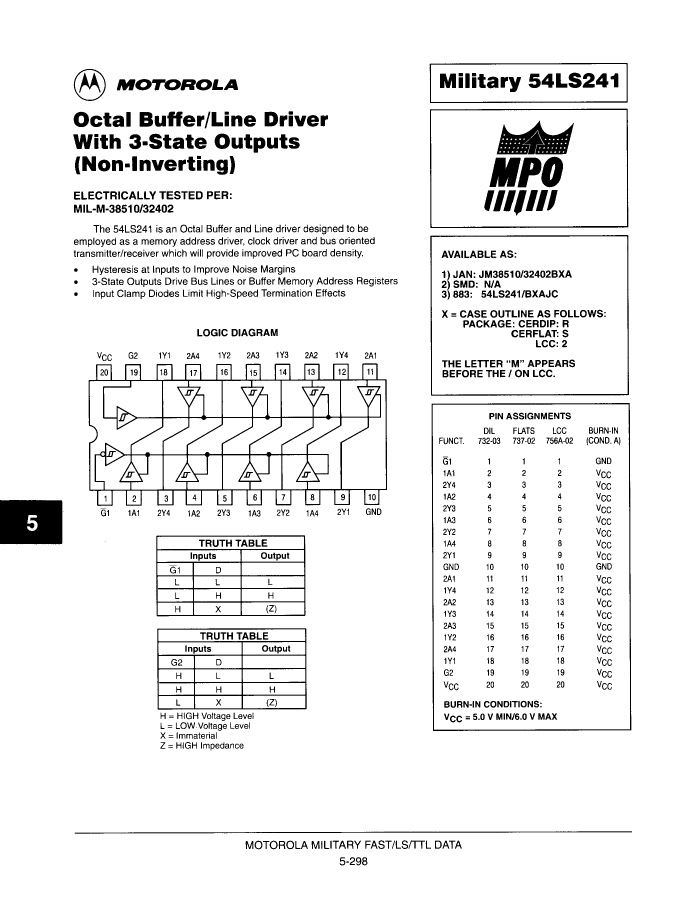

54LS241/B2AJC datasheet, PDF - EEWORLD Datasheet

54LS241/B2AJC: DescriptionIC,BUFFER/DRIVER,DUAL,4-BIT,LS-TTL,LLCC,20PIN,CERAMIC; Categorylogic logic; File Size190KB，4 Pages; ManufacturerFREESCALE (NXP)

Download Datasheet Parametric View All

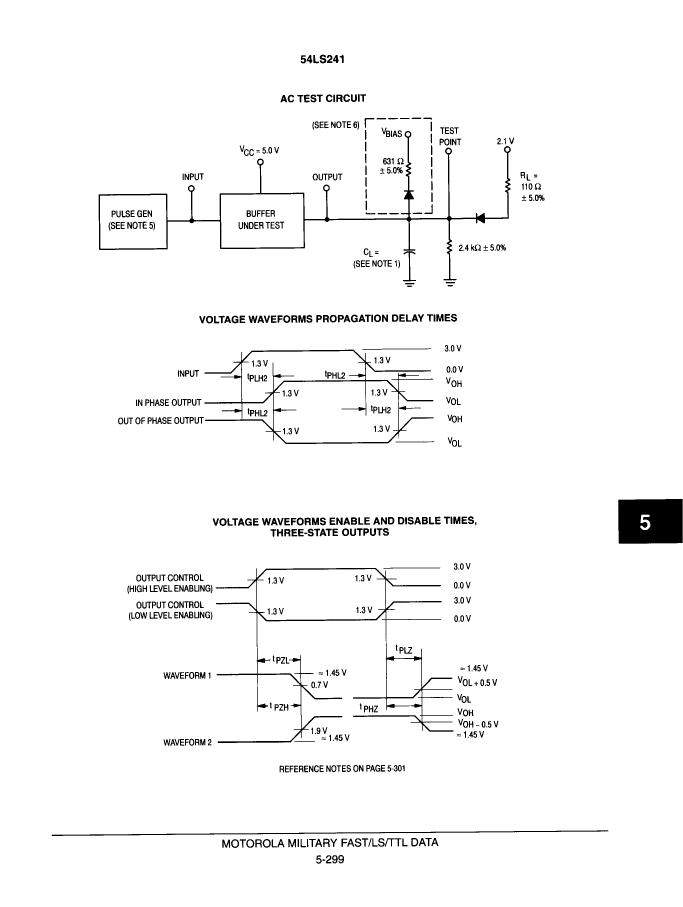

54LS241/B2AJC Overview

IC,BUFFER/DRIVER,DUAL,4-BIT,LS-TTL,LLCC,20PIN,CERAMIC

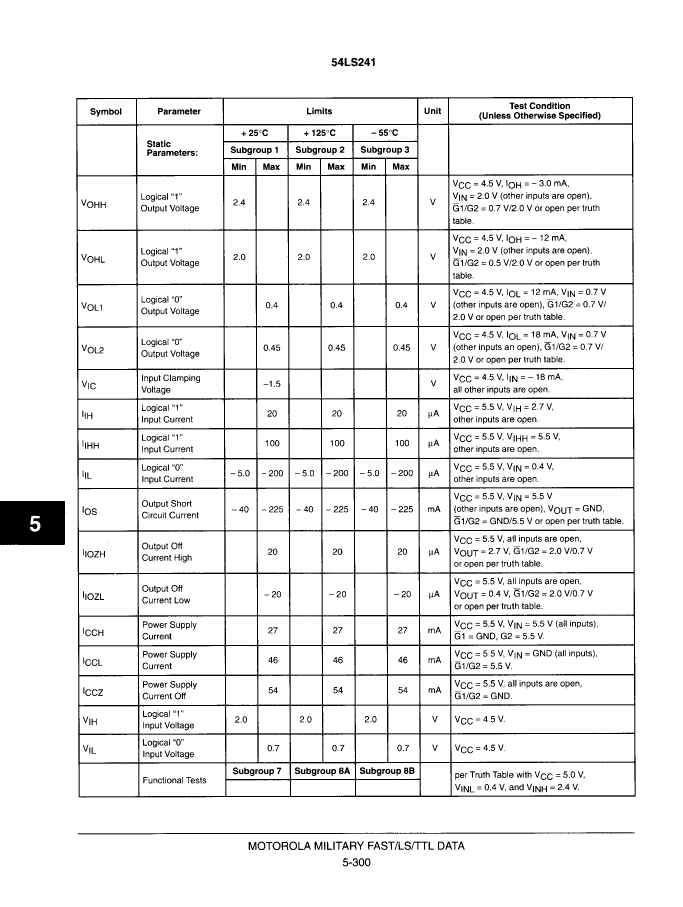

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Other features	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION
Control type	ENABLE LOW/HIGH
series	LS
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
length	8.89 mm
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.018 A
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	54 mA

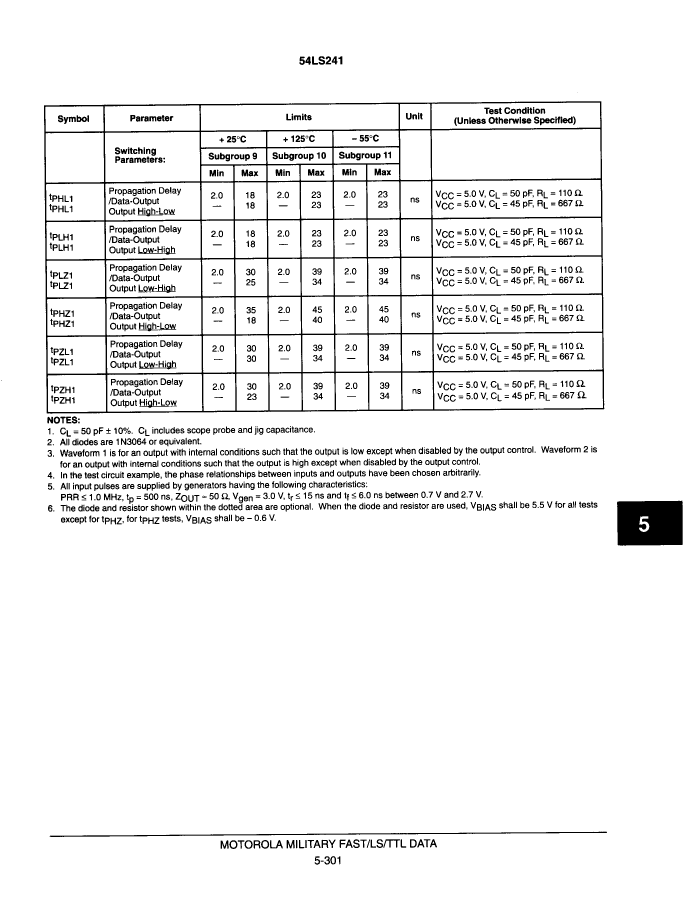

Prop。Delay @ Nom-Sup	23 ns
propagation delay (tpd)	23 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum seat height	1.9 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
