194330001: Description4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, CRIMP, PLUG; Categorysemiconductor Other integrated circuit (IC); File Size86KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

194330001 Overview

4 CONTACT(S), MALE, COMBINATION LINE CONNECTOR, CRIMP, PLUG

Preview

Download Datasheet

View All

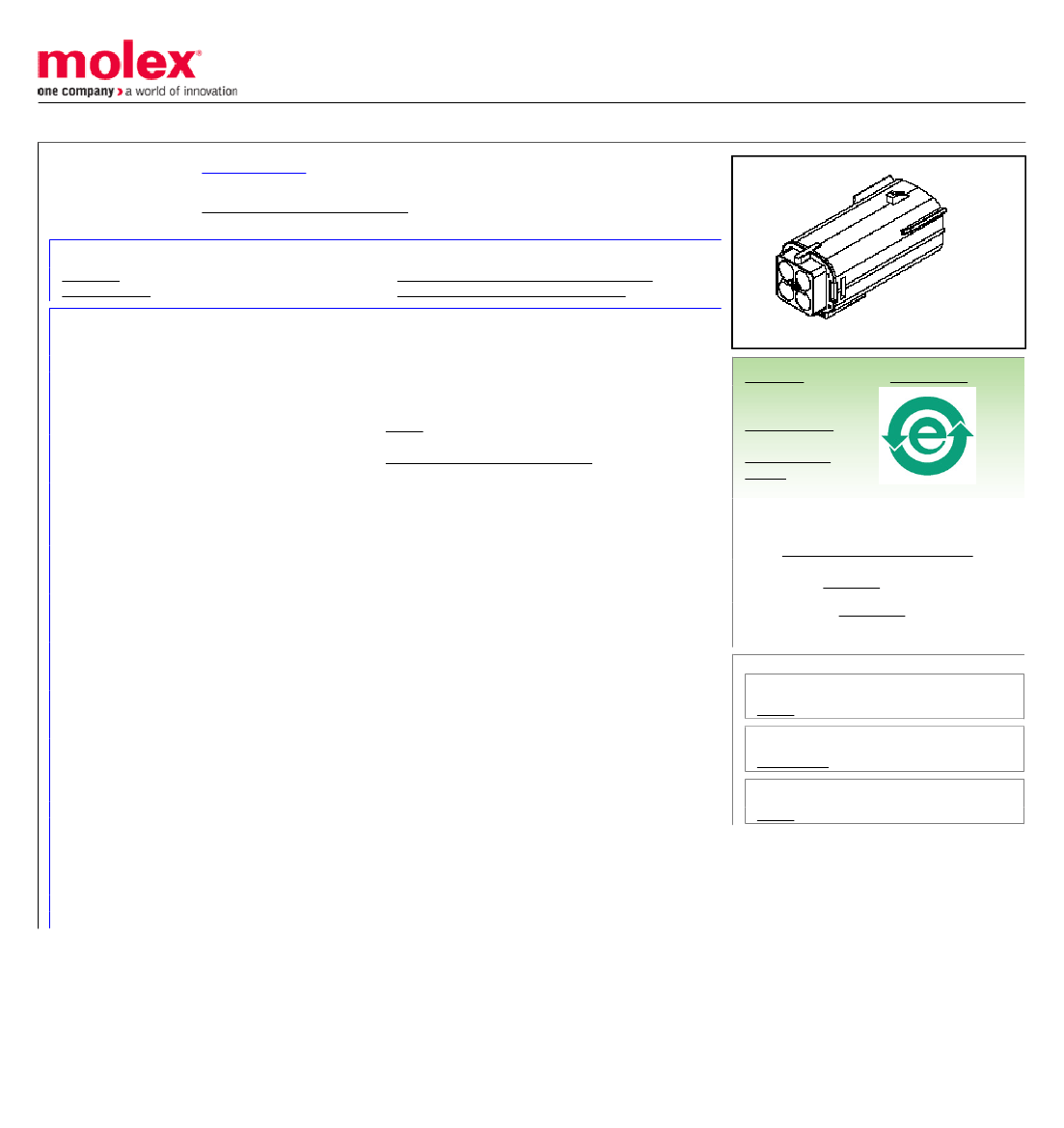

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

Documents:

3D Model

Drawing (PDF)

0194330001

Active

mx150l_sealed_connector_system

MX150L™ 4 Circuit Plug for 10-12 AWG Wire

Product Specification PS-19432-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

LR18689

E152602

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Agency Certification

CSA

General

Product Family

Series

Comments

Overview

Product Literature Order No

Product Name

Crimp Housings

19433

Mat Seal Color is Yellow, Polarized to Mating Part

mx150l_sealed_connector_system

987650-2181

MX150L™

Physical

Circuits (maximum)

Circuits Detail

Flammability

Gender

Glow-Wire Compliant

Keying to Mating Part

Lock to Mating Part

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

2x2

94V-0

Male

N/A

Yes

Bag

0.230 In

5.84 mm

Yes

-40°C to +125°C

Search Parts in this Series

19433Series

Mates With

19432-0001 Female Receptacle

Use With

19431 Male Terminal

Electrical

Current - Maximum per Contact

18A

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

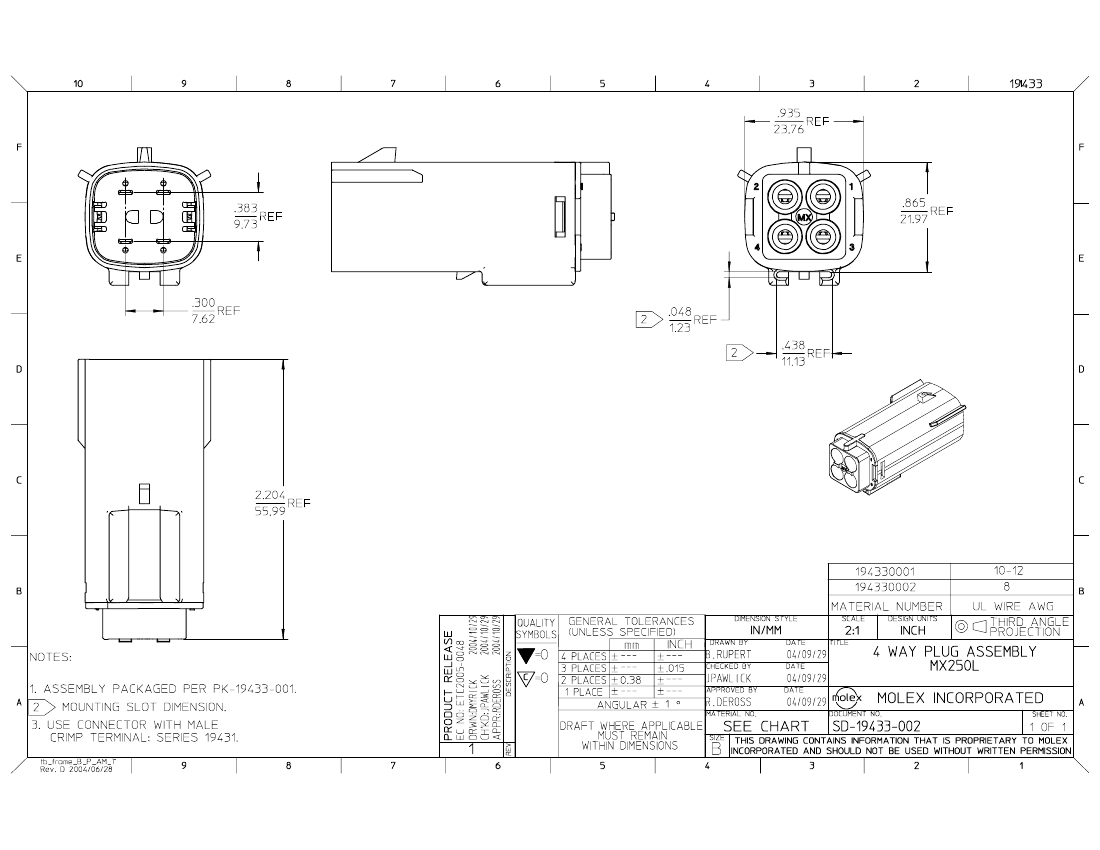

Sales Drawing

PK-19433-001

PS-19432-001

SD-19433-002

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
