36509-0033 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 36509-0033

36509-0033: DescriptionBoard Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator; CategoryThe connector The connector; File Size132KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

36509-0033 Overview

Board Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator

36509-0033 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.417 inch
body length	3.701 inch
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Insulator color	GRAY
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	36509
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	12u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	96

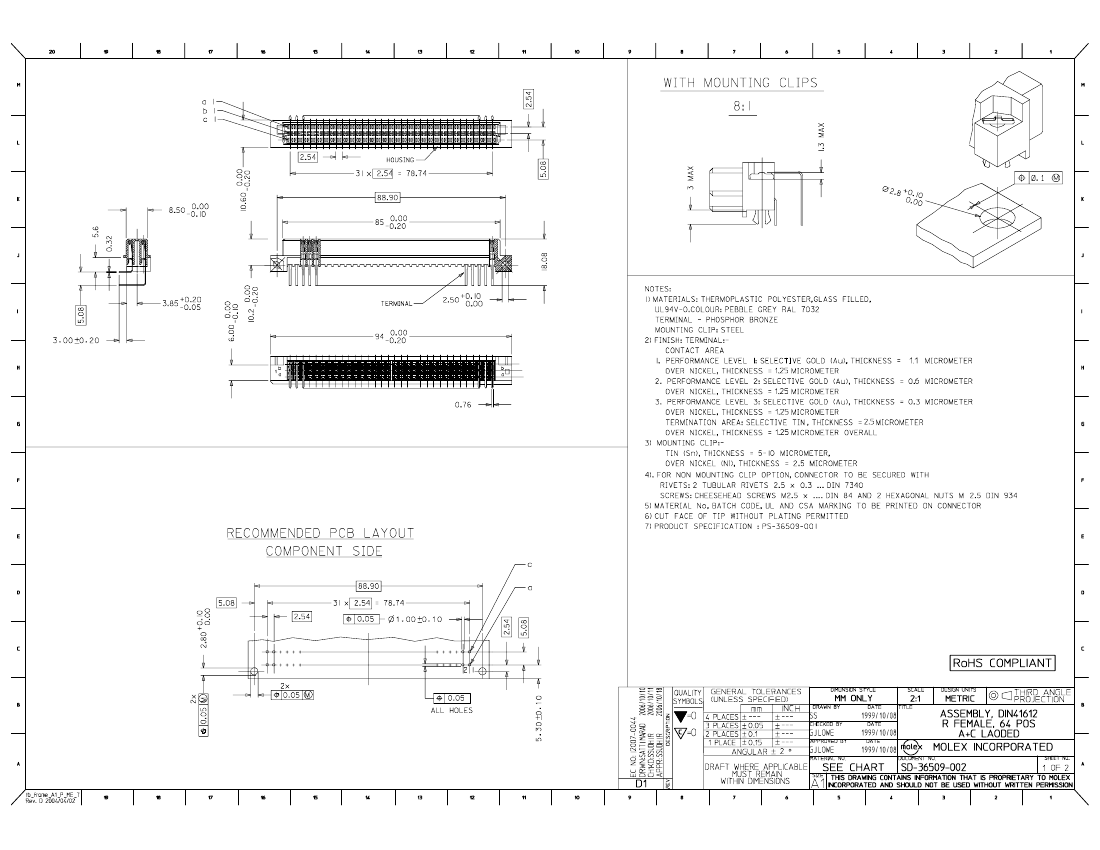

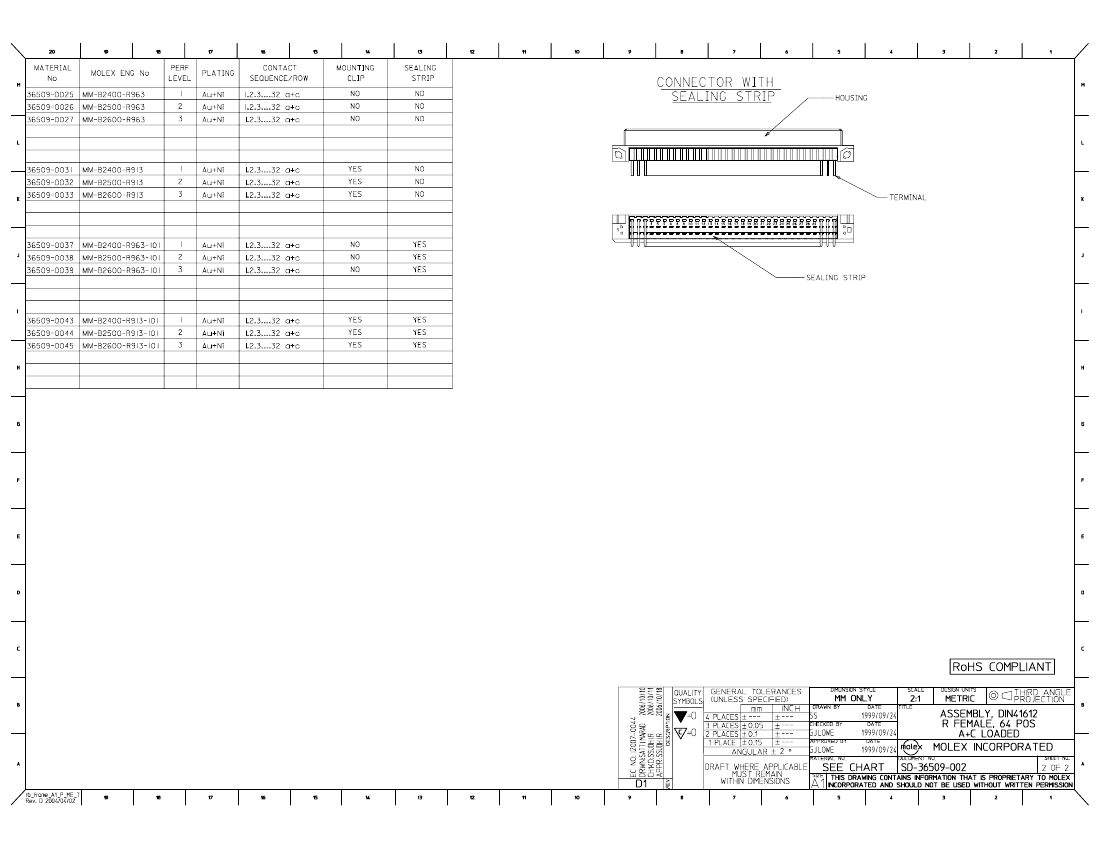

Preview

Download Datasheet

View All

36509-0033 Related Products

	36509-0033	36509-0031	36509-0037	36509-0039	36509-0043	36509-0045
Description	Board Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator	Board Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator	Board Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator	Board Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator	Board Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator	Board Euro Connector, 96 Contact(s), 2 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.417 inch	0.417 inch	0.417 inch	0.417 inch	0.417 inch	0.417 inch
body length	3.701 inch	3.701 inch	3.701 inch	3.701 inch	3.701 inch	3.701 inch
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	36509	36509	36509	36509	36509	36509
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Loaded row name	A,C	A,C	A,C	A,C	A,C	A,C
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Plating thickness	12u inch	43u inch	43u inch	12u inch	43u inch	12u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	96	96	96	96	96	96
