KBJ4A thru KBJ4M
Glass Passivated Single-Phase Bridge Rectifiers
Reverse Voltage 50 to 1000 Volts Forward Current 4.0 Amperes
Features
Ideal for printed circuit boards
High surge current capability
High case dielectric strength of 2000 V
RMS
Glass passivated chip junction
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Mechanical Data
Case: KBJ(3S)
Epoxy meets UL-94V-0 Flammability rating
Terminals: Plated leads solderable per MIL-STD-750,
Method 2026
High temperature soldering guaranteed:
260
o
C/10 seconds, 0.375 (9.5mm) lead length,
5lbs.(2.3kg) tension
Polarity: As marked on body
Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.
Recommended Torque: 5.7 cm-kg (5 inches-lbs)
Typical Applications
General purpose use in ac-to-dc bridge full wave rectification for
Monitor, TV, Printer, Switching Mode Power Supply, Adapter, Audio
equipment, and Home Appliances applications

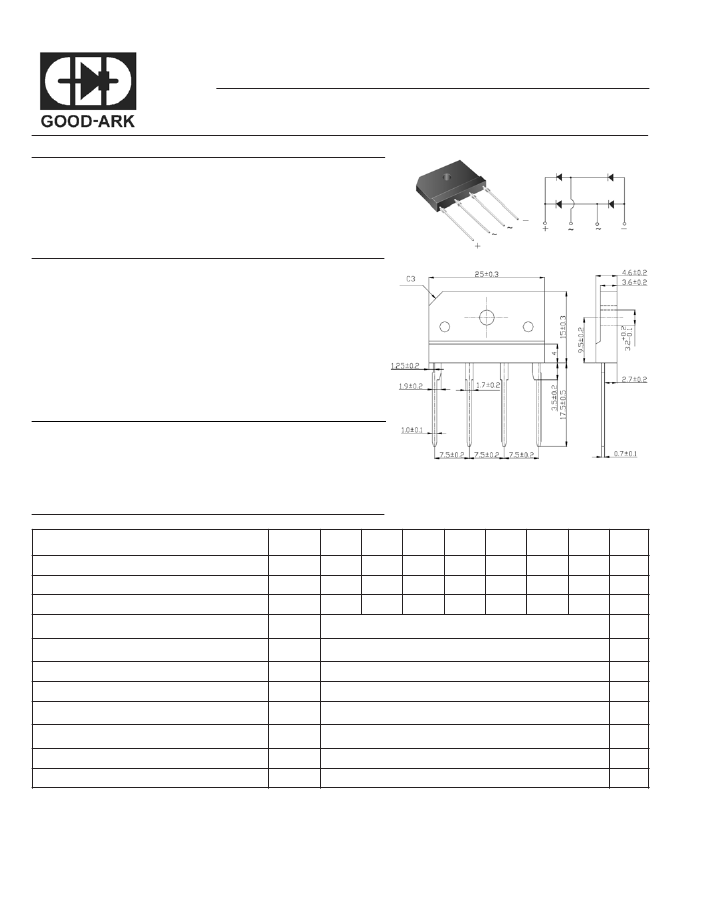

Package outline dimensions in millimeters

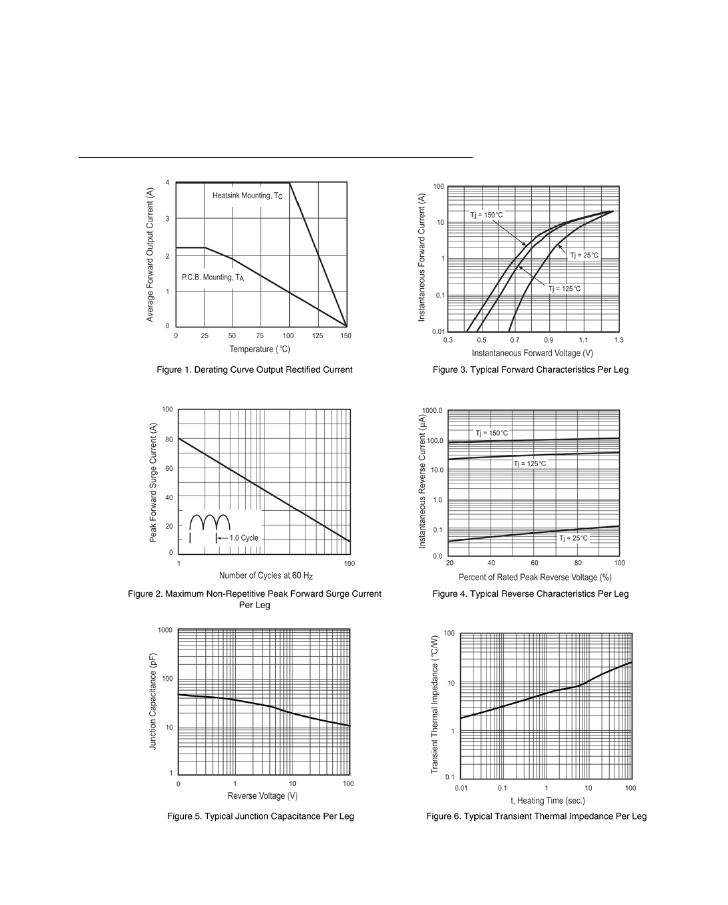

Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward
rectified output current at
T
C
=100
o
C
T
A
=25
o
C
Symbols
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θ
JA
R
θ
JC
V
ISO
T
J
, T
STG
K B J4A
50
35
50
K B J4B
100
70
100
K B J4D
200
140
200
K B J4G
400
280
400
4.0
(1)
2.3
(2)
80.0
26
1.0
5.0
250.0
26
(2)
5
(1)
2000
-55 to +150
o
K B J4J
600
420
600
K B J4K
800
560
800
K B J4M
1000
700
1000
Units
Volts
Volts
Volts
Amps
Amps
A
2
se c
Volt
uA
C/W
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage drop per leg at 2.0A
Maximum DC reverse current
at rated DC blocking voltage per leg
Typical thermal resistance per leg
Dielectric strength (Therminals to case, AC 1 minute)
Operating junction and storage temperature range
T
A
=25
o
C
T
A
=125
o
C
Volts
o
C
Notes:
1. Unit case mounted on 6.3x6.3x0.15cm thick Al plate heatsink.
2. Units mounted on P.C.B. with 0.5 x 0.5" (13 x 13 mm) copper pads and 0.375" (9.5 mm) lead length
3. Recommended mounting position is to bolt down on heatsink with silicone thermal compound for maximum heat transfer with #6 screw
