DTEM1024 SERIES
16~36 Watts
Medical AC/DC Desktop Power Supplies

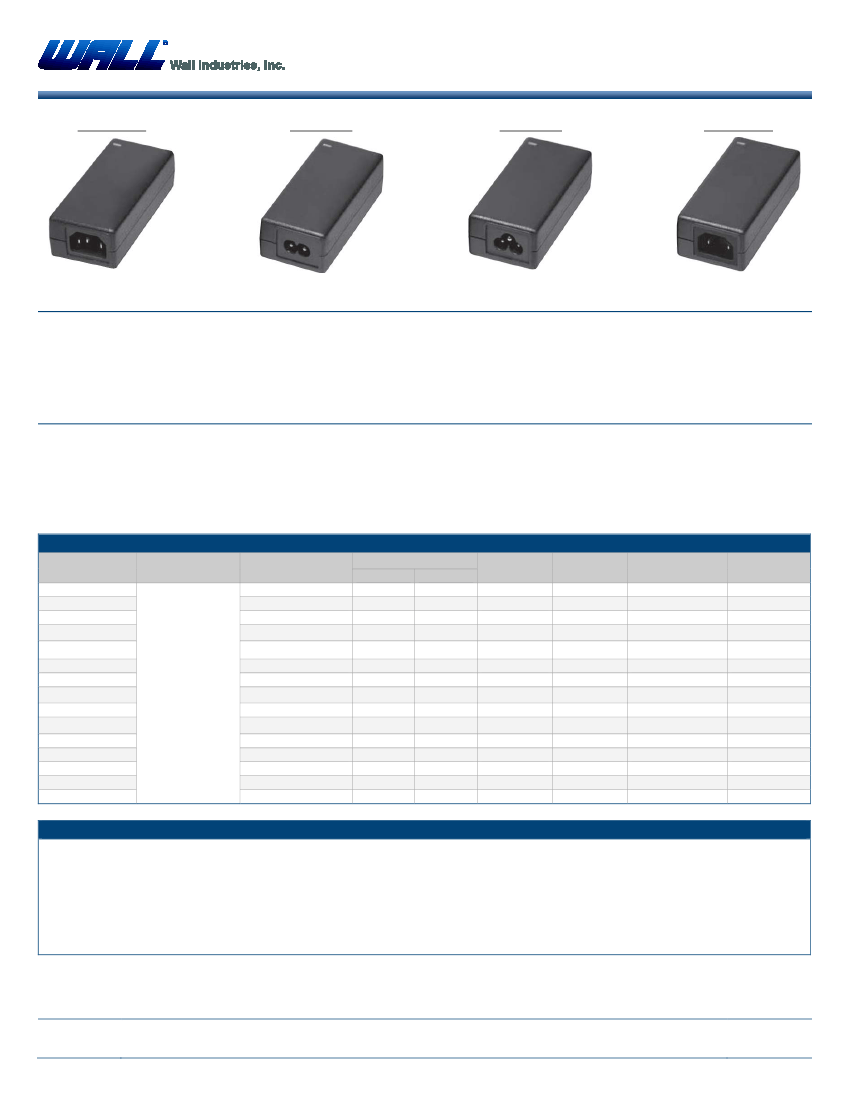

IEC-320-C6
IEC-320-C18
IEC-320-C14
IEC-320-C8
Size:
3.94 x 1.77 x 1.22
inches
Size:
3.94 x 1.77 x 1.22 inches
Size:
3.94 x 1.77 x 1.22 inches
Size:
3.94 x 1.77 x 1.22
inches
FEATURES
•
Single Outputs
•
RoHS & WEEE Compliance
•
Efficiency Meets CEC Level V, VI
•
Short Circuit & Over Voltage Protection
•
IEC-320-C14, IEC-320-C8, IEC-320-C6, & IEC-320-C18
AC Inlets Available
•
UL/cUL 60601: 3rd Edition Medical Approvals
•
TUV/SUD EN/IEC 606001 approvals for Class II
•
100~240VAC Input Voltage Range
•
MTBF > 30,000 Hours
•
Optional Output Connectors Available
•
CB, CE, FCC approvals
DESCRIPTION
The DTEM1024 series of medical AC/DC desktop power supplies provides up to 36 Watts of continuous output power in a 3.94” x 1.77” x 1.22”
package. All models have a single output and a wide input voltage range of 100~240VAC. This series is RoHS and WEEE compliant and meets
CEC Level V, VI requirements. This series also has UL/cUL 60601 and TUV/SUD EN/IEC 60601 3rd edition (for class II) medical approvals. All
models are protected against short circuit and over voltage conditions. Four AC inlet connector types are available for this series: IEC-320-C14,
IEC-320-C8, IEC-320-C6, and IEC-320-C18. Optional output connectors are also available please call factory for ordering details.
MODEL SELECTION TABLE
Model Number
(1)
DTEM1024Ax
DTEM1024Bx
DTEM1024Cx
DTEM1024Dx
DTEM1024Ex
DTEM1024Fx
DTEM1024Gx
DTEM1024Hx
DTEM1024Jx
DTEM1024Kx
DTEM1024Mx
DTEM1024Nx
DTEM1024Px
DTEM1024Qx
DTEM1024Rx
Input Voltage
Range
Output Voltage
(2)
5 ~ 8 VDC
5 ~ 8 VDC
5 ~ 8 VDC
9 ~ 11 VDC
9 ~ 11 VDC
9 ~ 11 VDC
12 ~ 17 VDC
12 ~ 17 VDC
18 ~ 24 VDC
18 ~ 24 VDC
36 ~ 48 VDC
36 ~ 48 VDC
12V
12V
24V
Output Current
Min
Max
0A
2.0A
0A
3.0A
0A
4.0A
0A
1.5A
0A
2.0A
0A
3.0A
0A
1.66A
0A
2.5A
0A
1.33A
0A
1.66A
0A
0.55A
0A
0.83A
0A
3.0A
0A
2.0A
0A
1.5A
Load
Regulation
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
±5%
Line
Ripple & Noise
(4)
Output Power
Regulation
(3)
±1%
100mVp-p
16W
±1%
100mVp-p
20W
±1%
100mVp-p
24W
±1%
250mVp-p
18W
±1%
250mVp-p
24W
±1%
250mVp-p
27W
±1%
250mVp-p
20W
±1%
250mVp-p
30W
±1%
350mVp-p
24W
±1%
350mVp-p
30W
±1%
480mVp-p
20W
±1%
480mVp-p
30W
±1%
250mVp-p
36W
±1%
250mVp-p
24W
±1%
350mVp-p
36W
100 ~ 240 VAC
NOTES
1. The “x” in the model number represents the type of AC inlet connector: “x” can be “1” for IEC-320-C14 type, “2” for IEC-320-C8 type, “3” for IEC-
320-C6, or “6” for IEC-320-C18 type.
2. The output voltage is specified as a range (Ex: 36~48 VDC); the customer must specify what they want the voltage set at.
3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
4. Ripple and Noise is measured at nominal line and full load with 20MHz bandwidth and a 0.1µF ceramic capacitor and 47µF aluminum
capacitors in parallel across the output.
5. LED option available.
6. Optional output connectors are available. Please call factory for ordering details.
09/22/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-
9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 1 of 3
Rev B
DTEM1024 SERIES
16~36 Watts
Medical AC/DC Desktop Power Supplies
TECHNICAL SPECIFICATIONS: DTEM1024 SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage
Input Frequency
Input Current
Inrush Current
OUTPUT SPECIFICATIONS
Output Voltage
Line Regulation
Load Regulation
Output Power
Output Current
Minimum Load
Ripple & Noise (20MHz BW)
Hold-up Time
Turn-on Time
PROTECTION
Over Voltage Protection
Short Circuit Protection
GENERAL SPECIFICATIONS
Efficiency
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Cooling
MTBF
PHYSICAL SPECIFICATIONS
Weight
Dimensions (L x W x H)
Cold start
TEST CONDITIONS
Min
100
50
0.5
Typ
Max
240
60
1
60
Unit
VAC
Hz
A
A
See Table
Defined by changing ±10% of input voltage from
nominal line at rated load
-1
-5
+1
+5
See Table
See Table
0
Measured at nominal line and full load with 0.1µF
ceramic and 47µF aluminum capacitors in parallel
8.3
3
Automatic recovery
Automatic recovery
Meet CEC Level V, VI
0
-20
10
5
30,000
+40
+85
90
95
Free air convection
hours
°C
°C
%
%
See Table
ms
s
A
%
%
AC Inlet Connector
Output Connectors
SAFETY & COMPLIANCE
Safety Approvals
Compliance
Suffix “1”
Suffix “2”
Suffix “3”
Suffix “6”
Call factory for ordering details
7.05oz (200g)
3.94 x 1.77 x 1.22 inches (100 x 45 x 31
mm)
IEC-320-C14
IEC-320-C8
IEC-320-C6
IEC-320-C18
Several options available
UL/cUL UL60601: 3rd edition
TUV/SUD EN/IEC 60601-1: 3rd edition
CB, CE, and FCC
RoHS, WEEE, CEC Level V, VI
For class II only
09/22/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-
9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 2 of 3
Rev B
DTEM1024 SERIES
16~36 Watts
Medical AC/DC Desktop Power Supplies

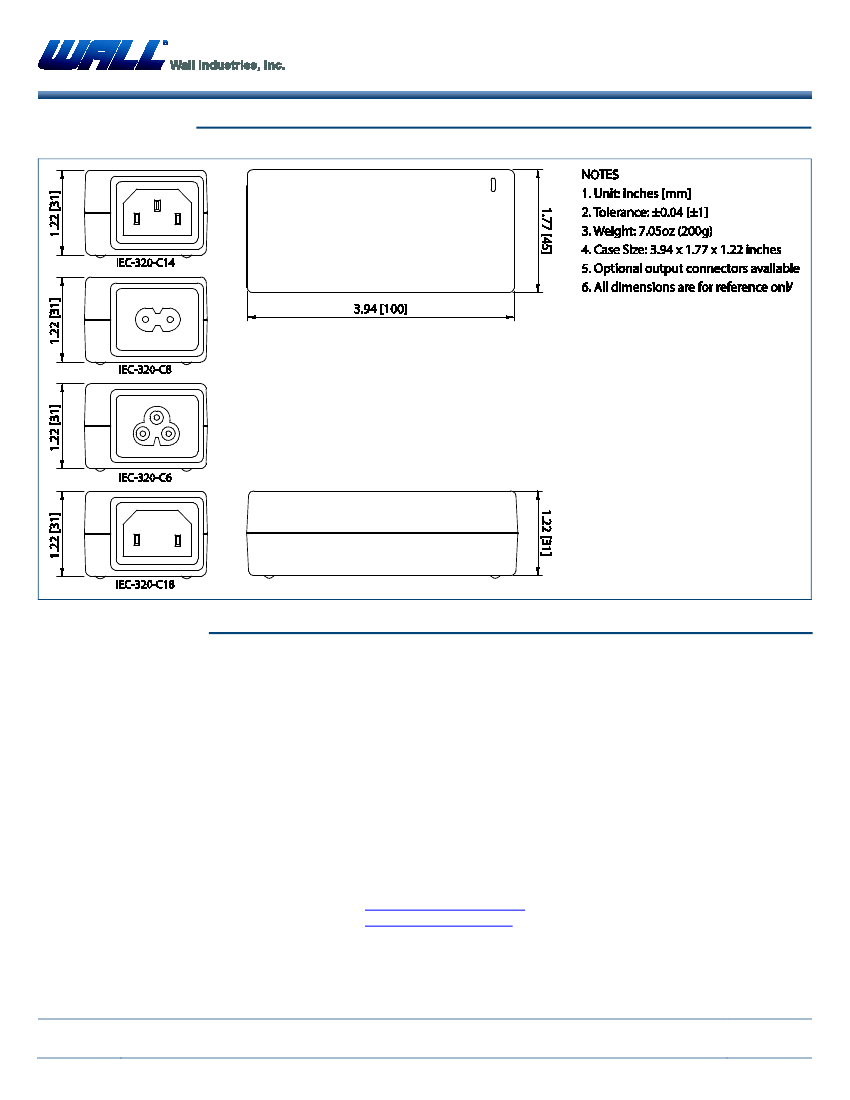

MECHANICAL
DRAWING
COMPANY
INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development
engineers will provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008
certification is just one example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working closely
with its customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to provide
ongoing support for your project above and beyond the design and production phases. Give us a call today to discuss your
future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)597-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
37 Industrial Drive
Exeter, NH 03833
09/22/2014
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-
9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 3 of 3
