Applied Motion Products, Inc.
404 Westridge Dr.
Watsonville, CA 95076, USA
1-800-525-1609
Tel (831) 761-6555
Fax (831) 761-
6544
Product Datasheet
www.Applied-Motion.com

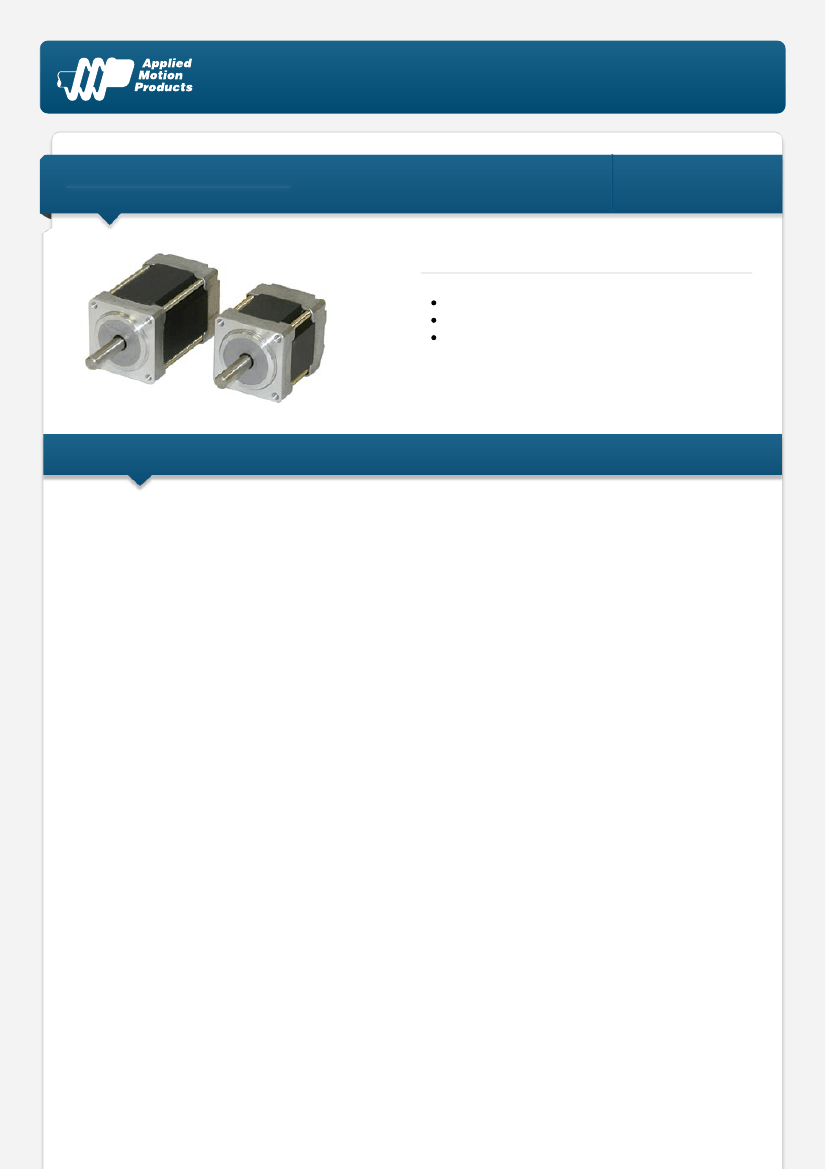

HT11-013
NEMA 11 High Torque Step Motor
1pc. - 109.00
50pc. - 81.75
Product Features
2-phase Hybrid Step Motor
High Torque Design
Standard NEMA 11 Dimensions
Description
Product Description:
The HT11-013 two-phase stepper motor is suitable for a wide range of motion control applications.
Specifications
Part Number:
Frame Size:
Motor Type:
Part Number w/Double
Shaft:
Motor Length:
Number of Lead
Wires:
Lead Wire
Configuration:
Lead Wire/Cable
Length:
Lead Wire Gauge:
Bipolar Holding
Torque:
Step Angle:
Bipolar Parallel
Current:
Bipolar Parallel
Resistance:
Bipolar Parallel
Inductance:
Rotor Inertia:
Integral Gearhead:
Storage Temperature:
Operating
Temperature:
Insulation Class:
Shaft Run Out:
Radial Play:
End Play:
Perpendicularity:
Concentricity:
HT11-013
NEMA 11
High torque
HT11-013D
1.87 inches
4
flying leads, no connector
7.9 inches inches
26 AWG
15.3 oz-in
1.8 deg
1.0 A/phase
2.0 Ohms/phase
2.6 mH/phase
2.55E-04 oz-in-sec
2
No
-40 to 70 °C
-20 to 40 °C
Class B (130 ºC)
0.001 inch T.I.R. max
0.001 inch max w/ 1.1 lb load
0.003 inch max w/ 2.2 lb load
0.002 inches
0.002 inches
