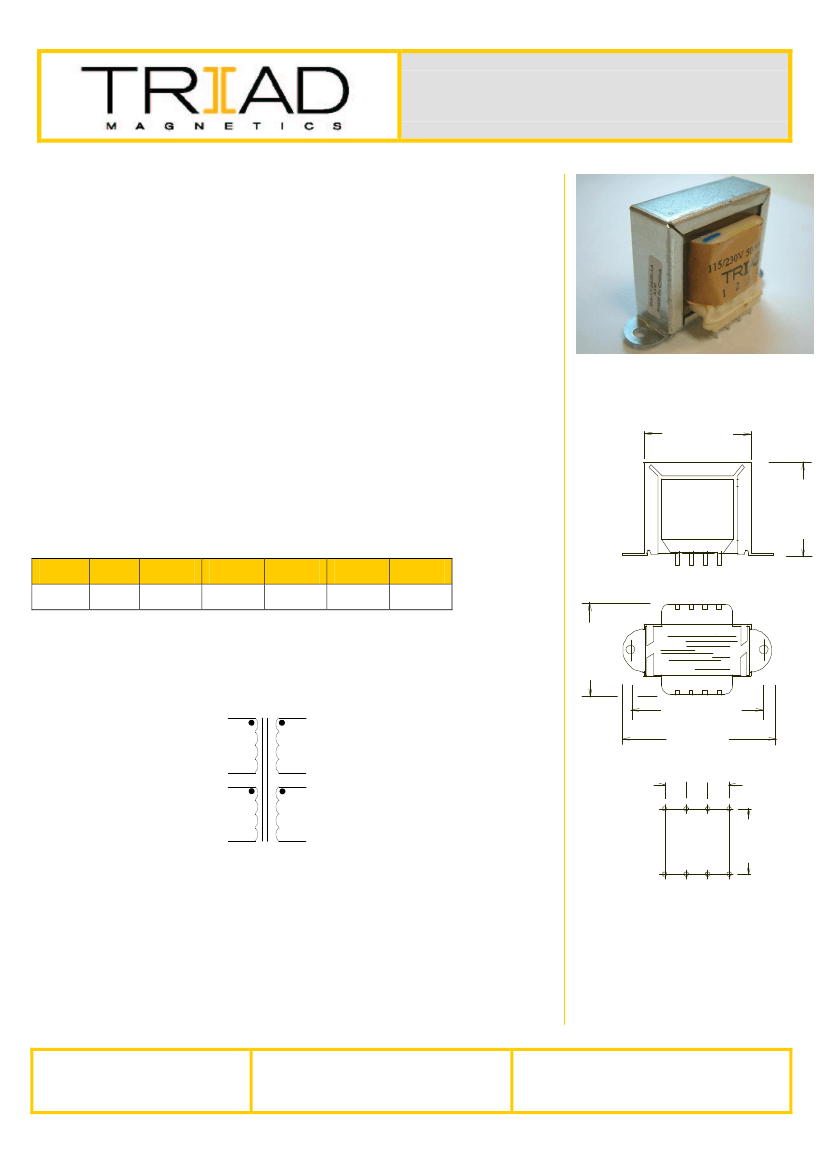

P
OWE R
T
RAN S FO R M E R
PC Mount: Dual Primary
F-348XP
Electrical Specifications (@25C)
1. Maximum Power: 4.5 VA
2. Primary:
Series:230V@50/60 Hz
Parallel: 115V@50/60Hz
3. Secondary: Series: 12.6V CT @ 0.350 Amps
Parallel: 6.3V CT @ 0.700 Amps
Description:
The F-348XP is part of a wide selection of plug-in types that meet the needs of PC
boards and solid state power supply design. This transformer can satisfy power as
well as control and instrumentation applications.
Construction:
Wound on a single channel nylon bobbin. Materials are UL recognized, Class B
(130º C) rated.
D
Safety:
These products are 100% hipot tested with an insulation of 1500V between
primary and secondary windings.
1 2 3 4
A
Dimensions:
A
1.375
B
2.375
C
1.250
D
1.625
E
.250
Units: In inches
F
1.109
G
2.00
Mounting holes: 0.187 in.
Pin length: 0.187 in.
Pin size: 0.20 x .041 in.
Weight: 6.5 oz
C
Schematic:
1
5
G
B
2
3
6
7
E
8
7
E
6
E
5
4
8
F
Primary:
Secondary:
Series - 1 to 4, Jumper 2 to 3
Parallel - 1 to 4, Jumper 1 to 3 and 2 to 4
Series - 5 to 8, Jumper 6 to 7
Parallel - 5 to 8, Jumper 5 to 7 and 6 to 8
1
2
3
4
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet
the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
