DS25-MT-A-YC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DS25-MT-A-YC

DS25-MT-A-YC: DescriptionD Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DS25-MT-A-YC Overview

D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle

DS25-MT-A-YC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.201 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	DS50
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-50 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	YELLOW CHROMATE
Shell material	STEEL
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	25

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Board lock material:

Board lock plating:

Shell material:

Shell plating:

Jackscrew material:

Jackscrew plating:

Withstanding:

Operating temperature:

5 amps

Brass, stamped pin

Gold flash or gold

15 milliohms max.

PBT + glass fiber, UL94-V0

Brass

Tin or nickel

Steel

Tin or zinc

Brass, 4.75x5.0x10

Nickel

500VAC for 1 min.

-50°C to +105°C

2.77 PITCH

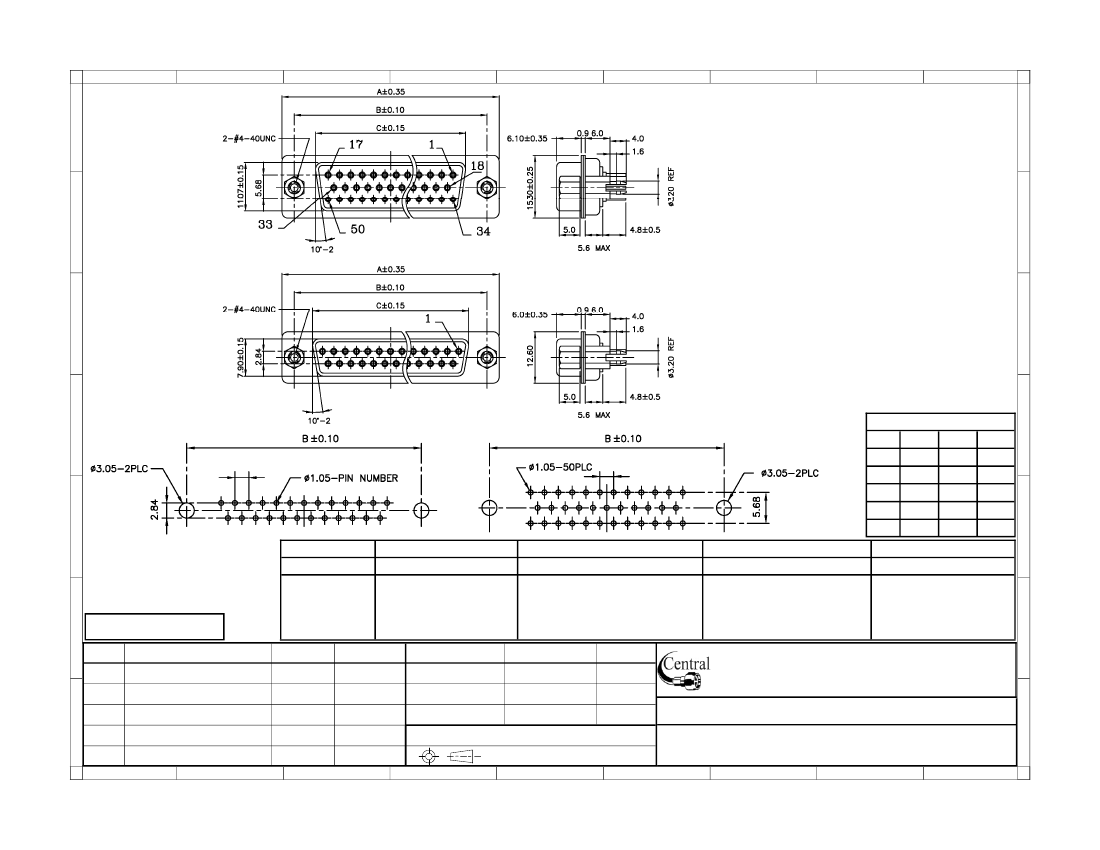

PC Board Layout

2.77 PITCH

Dimensions

Pos.

09 30.80 24.99

15 39.15 33.32

25 53.00 47.04

37 69.30 63.50

50 67.00 61.00

16.30

24.65

38.40

54.80

52.80

RoHS compliant

Rev.

Description

Series

Type

Tail options

DSXX

D-sub connector FT=Female vertical mount A=Standard for .052” to .125” PCB

XX=Pins

MT=Male vertical mount B=Wire wrap

9, 15, 25, 37, 50 MHT=Male high profile

FHT=Female high profile

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

10/17/03

10/17/03 Part No.:

Face options

Other options

XXX

[blank]=.120” thru hole

[blank]=None

RCN=Clinch nut

FF=Ferrite filter

RJS=Jackscrew

YC=Yellow chromate shell

RSB=Standoff with board locks

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

DSXX-FT-A-RJS-RSB

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: D-subminiature connector, PCB straight type, stamped

pin, female, boardlocks
