Ordering number : EN6084E
CPH3105/CPH3205
Bipolar Transistor
(–)50V, (–)3A, Low VCE(sat), (PNP)NPN Single CPH3
Applications
•
http://onsemi.com
DC-DC converters, relay drivers, lamp drivers, motor drivers, flash
Features
•
•
•
•
•
•
Adoption of FBIT, MBIT processes
Large current capacity
Low collector-to-emitter saturation voltage
High-speed switching
Ultrasmall package facilitates miniaturization in end products (mounting height : 0.9mm)
High allowable power dissipation
Specifications
( ): CPH3105
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCES
VCEO
VEBO
IC
ICP
IB
PC
Tj
Tstg
When mounted on ceramic substrate (600mm ×0.8mm)
2
Conditions
Ratings
(-
-50)100
(--50)100
(-
-)50
(--)6
(-
-)3
(--)6
(-
-)600
0.9
150
-
-55 to +150
Unit
V
V
V
V
A
A
mA
W
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

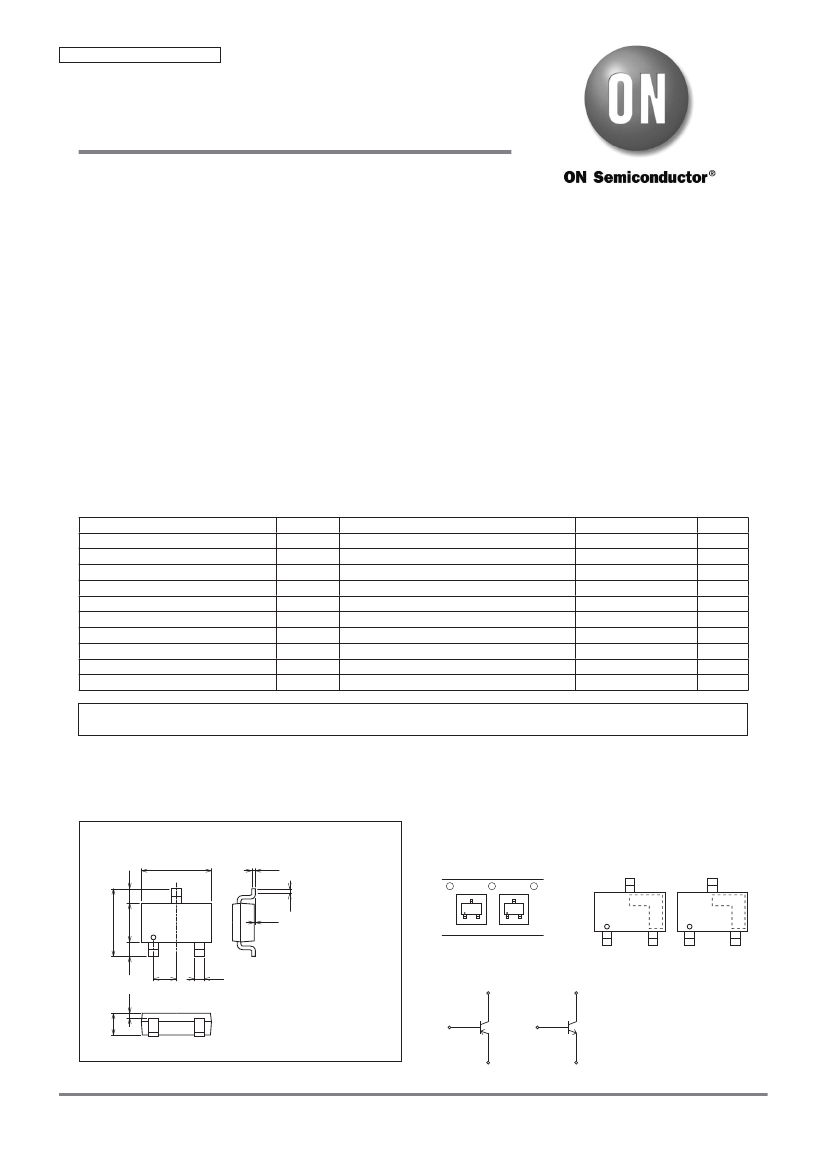

Package Dimensions
unit : mm (typ)
7015A-003
CPH3105-TL-E
CPH3205-TL-E
0.2
Product & Package Information
• Package
: CPH3
• JEITA, JEDEC
: SC-59, TO-236, SOT-23
• Minimum Packing Quantity : 3,000 pcs./reel
0.6
2.9
3
0.15
Packing Type: TL
Marking
LOT No.
LOT No.
2.8
1.6
0.05
TL
0.6
1
0.95
2
0.4
1 : Base
2 : Emitter
3 : Collector
CPH3
Electrical Connection
3
3
CPH3105
0.9
0.2
1
1
CPH3105
2
CPH3205
2
Semiconductor Components Industries, LLC, 2013
September, 2013
70412 TKIM/62005EA MSIM TB-00001407/63004 TSIM TB-00000304/41000 TS(KOTO) TA-2926 No.6084-1/7
CE
CPH3205
AE
CPH3105 / CPH3205
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-On Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
hFE
fT
Cob
VCE(sat)1
VCE(sat)2
VBE(sat)
V(BR)CBO
V(BR)CES
V(BR)CEO
V(BR)EBO
ton
tstg
tf
Conditions
VCB=(--)40V, IE=0A
VEB=(--)4V, IC=0A
VCE=(--)2V, IC=(--)100mA
VCE=(--)10V, IC=(--)500mA
VCB=(--)10V, f=1MHz
IC=(--)1A, IB=(--)50mA
IC=(--)2A, IB=(--)100mA
IC=(--)2A, IB=(--)100mA
IC=(--)10μA, IE=0A
IC=(--)100μA,RBE=0Ω
IC=(--)1mA, RBE=∞
IE=(--)10μA, IC=0A
See specified Test Circuit.
(--50)100
(--50)100
(--)50
(--)6
(30)35
(230)300
(15)22
200
(360)380
(24)13
(--100)80
(--185)140
(-
-)0.88
(--200)120
(--500)210
(-
-)1.2
Ratings
min
typ
max
(-
-)1
(--)1
560
MHz
pF
mV
mV
V
V
V
V
V
ns
ns
ns
Unit
μA
μA

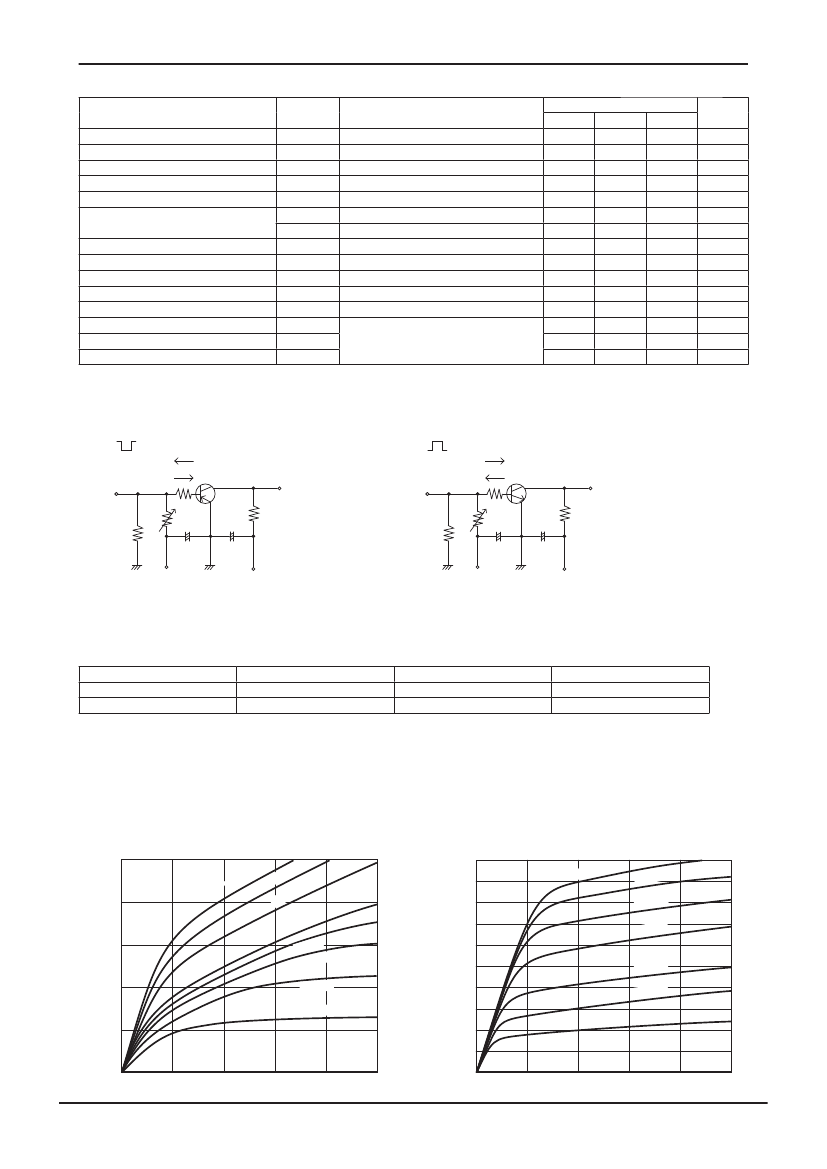

Switching Time Test Circuit
PW=20μs
DC≤1%
INPUT
VR
50Ω
IB1
IB2
OUTPUT
RB
+
100μF
+
470μF
VCC= --25V
PW=20μs
DC≤1%
INPUT
VR
50Ω
IB1
IB2
OUTPUT
RB
+
100μF
+
470μF
VCC=25V
RL
RL
VBE=5V
VBE= --5V
--10IB1=10IB2=IC= --1A
CPH3105
10IB1= --10IB2=IC=1A
CPH3205
Ordering Information
Device
CPH3105-TL-E
CPH3205-TL-E
Package
CPH3
CPH3
Shipping
3,000pcs./reel
3,000pcs./reel
memo
Pb Free
Pb Free
--2.0
IC -- VCE
CPH3105
5.0
IC -- VCE
CPH3205
100m
A
Collector Current, IC -- A
--10
--1.2
mA
Collector Current, IC -- A
--1.6
A
0m
30mA
--4
--
mA
--20
4.5
4.0
3.5
3.0
2.5
2.0
1.5
80mA
60mA
40mA
--8mA
--6mA
--4mA
--2mA
20mA
10mA
5mA
--0.8
--0.4
1.0
0.5
0
0
--0.2
--0.4
--0.6
IB=0mA
--0.8
--1.0
IT08051
0
0
0.4
0.8
1.2
1.6
IB=0mA
2.0
IT08052
Collector-to-Emitter Voltage, VCE -- V
Collector-to-Emitter Voltage, VCE -- V
No.6084-2/7
CPH3105 / CPH3205

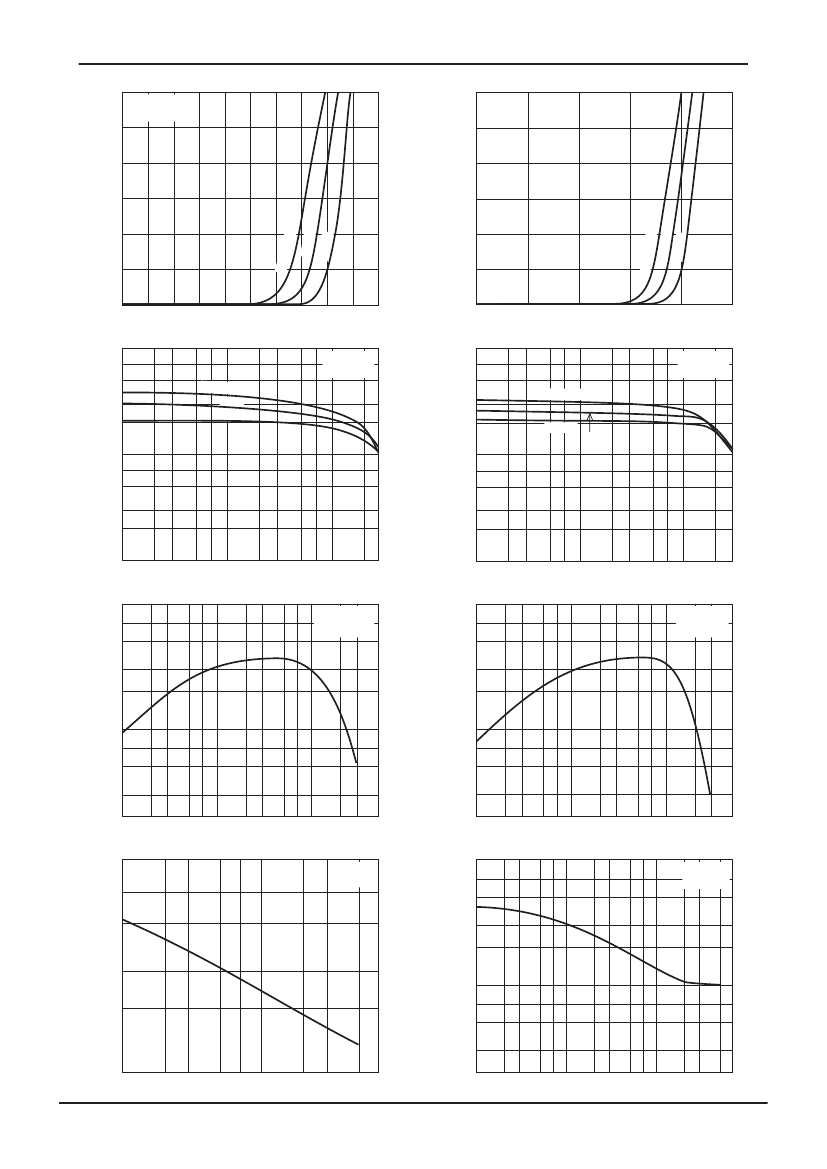

3.0
IC -- VBE
CPH3105
VCE= --2V
3.0
IC -- VBE
CPH3205
VCE=2V
2.5
2.5
Collector Current, IC -- A
2.0
Collector Current, IC -- A
2.0
1.5
1.5
0.5
0.5
0
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0
0
0.2
0.4
0.6
0.8
1.0
IT08054
Base-to-Emitter Voltage, VBE -- V
1000
7
5
IT08053
1000
hFE -- IC
CPH3105
VCE= --2V
DC Current Gain, hFE
Base-to-Emitter Voltage, VBE -- V
hFE -- IC
7
5
DC Current Gain, hFE
3
2
Ta=75°C
25
°C
--25
°
C
Ta=75°C
3
2
--25
°
C
25
°
C
100
7
5
3
2
100
7
5
3
2
10
0.01
10
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
2
3
5
7
0.1
2
3
Ta=75
°
C
25
°
C
--25
°
C
CPH3205
VCE=2V
5
7 1.0
2
Ta=7
5
°
C
25
°
C
--25
°
C
1.0
1.0
3
Collector Current, IC -- A
1000
IT08055
1000
f T -- IC
Collector Current, IC -- A
IT08056
f T -- IC
Gain-Bandwidth Product, f T -- MHz
Gain-Bandwidth Product, f T -- MHz
7
5
3
2
CPH3105
VCE= --10V
7
5
3
2
CPH3205
VCE=10V
100
7
5
3
2
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
5
100
7
5
3
2
0.01
2
3
5
7 0.1
2
3
5
7 1.0
2
3
5
Collector Current, IC -- A
100
IT08057
100
Cob -- VCB
Collector Current, IC -- A
IT08058
Cob -- VCB
Output Capacitance, Cob -- pF
5
Output Capacitance, Cob -- pF
7
CPH3105
f=1MHz
7
5
3
2
CPH3205
f=1MHz
3
10
7
5
3
2
10
--1.0
2
3
5
7
--10
2
3
5
7
2
0.1
2
3
5 7 1.0
2
3
5 7 10
2
3
5 7
IT08060
Collector-to-Base Voltage, VCB -- V
IT08059
Collector-to-Base Voltage, VCB -- V
No.6084-3/7
CPH3105 / CPH3205
--10000
7
5
3
2
VCE(sat) -- IC
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
CPH3105
IC / IB=20
1000
7
5
3
2
VCE(sat) -- IC
CPH3205
IC / IB=20
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
--1000
7
5
3
2
--100
7
5
3
2
--10
--0.01
2
3
100
7
5
3
2
5
°
C
a=7
T
°
C
--25
C
25
°
5 7 --0.1
2
3
5 7 --1.0
2
3
C
5
°
C
=7
5
°
Ta
--2
°
C
25
2
3
5
7 0.1
2
3
5
7 1.0
2
3
5
Collector Current, IC -- A
--10000
7
5
3
2
5 7 --10
IT08061
10
0.01
VCE(sat) -- IC
Collector Current, IC -- A
1000
IT08062
VCE(sat) -- IC
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- mV
CPH3105
IC / IB=50
7
5
3
2
CPH3205
IC / IB=50
--1000
7
5
3
2
--100
7
5
3
2
--10
--0.01
2
3
100
7
5
3
2
C
75
°
Ta=
°
C
C
--25
25
°
5
°
C
a=7
T
°
C
C
--25
25
°
5 7 --0.1
2
3
5 7 --1.0
2
3
Collector Current, IC -- A
5
5 7 --10
IT08063
10
0.01
2
3
5
7 0.1
2
3
5
7 1.0
2
3
5
VBE(sat) -- IC
Collector Current, IC -- A
5
IT08064
VBE(sat) -- IC
Base-to-Emitter
Saturation Voltage, VBE(sat) -- mV
Base-to-Emitter
Saturation Voltage, VBE(sat) -- mV
3
2
CPH3105
IC / IB=50
3
2
CPH3205
IC / IB=50
--1000
7
5
3
2
Ta= --25
°C
1000
7
5
3
2
Ta= --25
°C
75
°
C
25°C
75
°
C
25°C
--100
--0.01
2
3
5 7 --0.1
2
3
5 7 --1.0
2
3
Collector Current, IC -- A
10
7
5
5 7 --10
IT08065
100
0.01
2
3
5
7 0.1
2
3
5 7 1.0
2
3
5

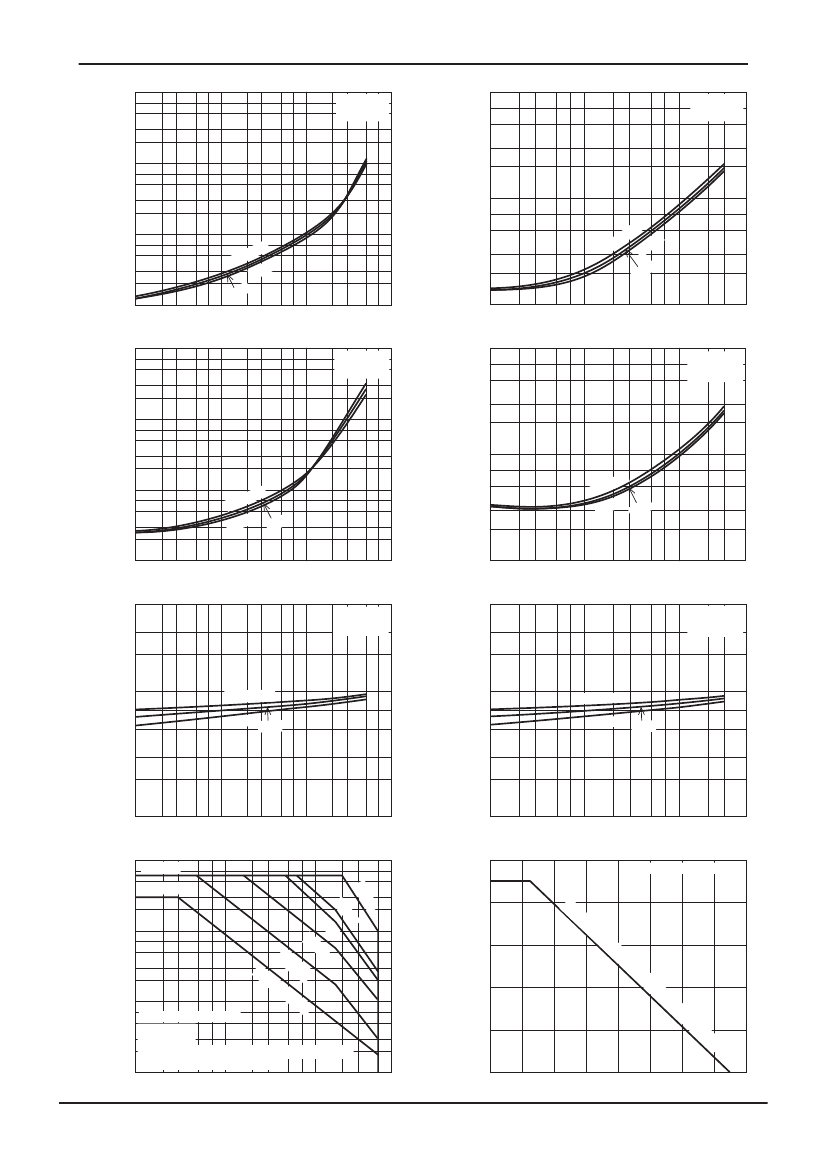

ASO
Collector Current, IC -- A
1.0
0.9
IT08066
PC -- Ta
ICP=6A
Collector Dissipation, PC -- W
IC=3A
0
50
1m
CPH3105 / CPH3205
10
0
μ
0.8
Collector Current, IC -- A
3
2
1.0
7
5
3
2
0.1
7
5
3
2
M
s
ou
10
10
m
0m
s
s
nt
μ
s
ed
s
0.6
on
ac
DC
er
am
ic
op
bo
era
t
0.4
ar
d
ion
(6
0
0.01
0.1
CPH3105 / CPH3205
Ta=25°C
Single pulse
Mounted on a ceramic board(600mm
2
×0.8mm)
For PNP, minus sign is omitted.
2
3
5
7 1.0
2
3
5
7 10
2
3
5
7
0m
0.2
m
2
×
0
.8
m
m
)
160
0
0
20
40
60
80
100
120
140
IT08067
Collector-to-Emitter Voltage, VCE -- V
Ambient Temperature, Ta --
°C
IT08068
No.6084-4/7
CPH3105 / CPH3205

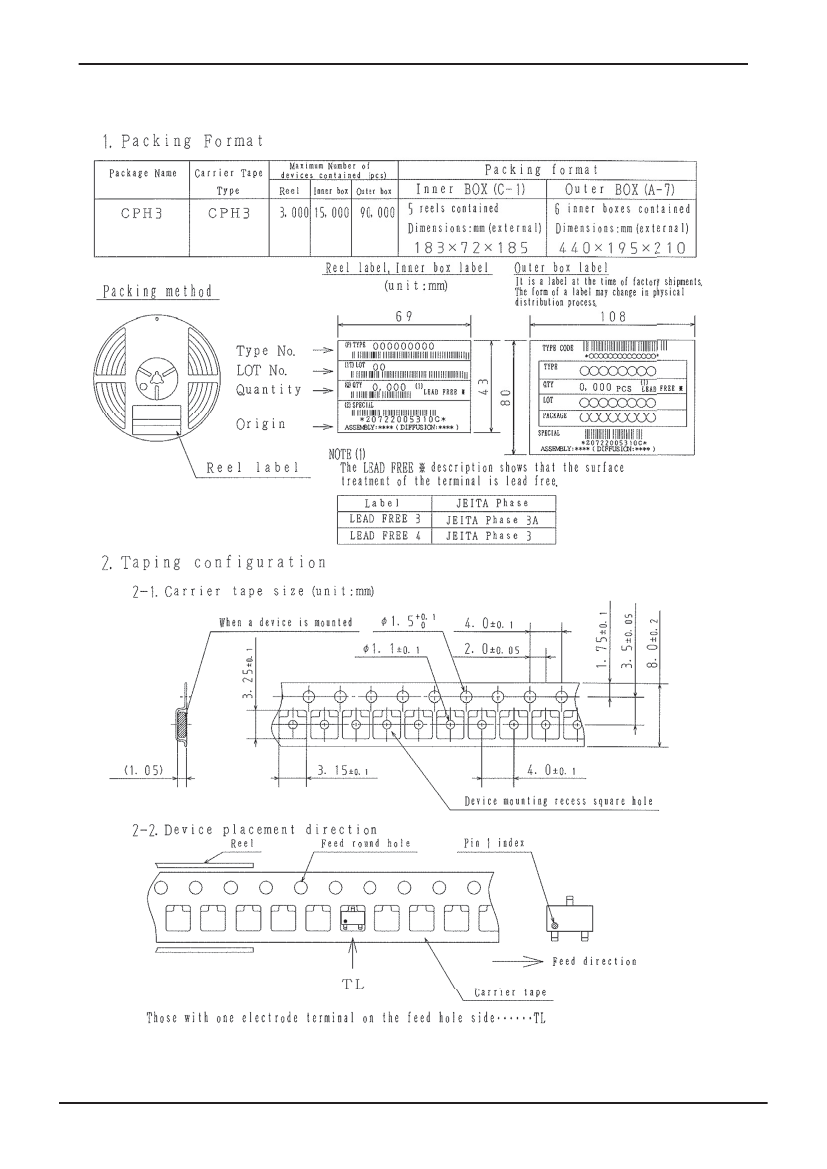

Embossed Taping Specification
CPH3105-TL-E, CPH3205-TL-E
No.6084-5/7
