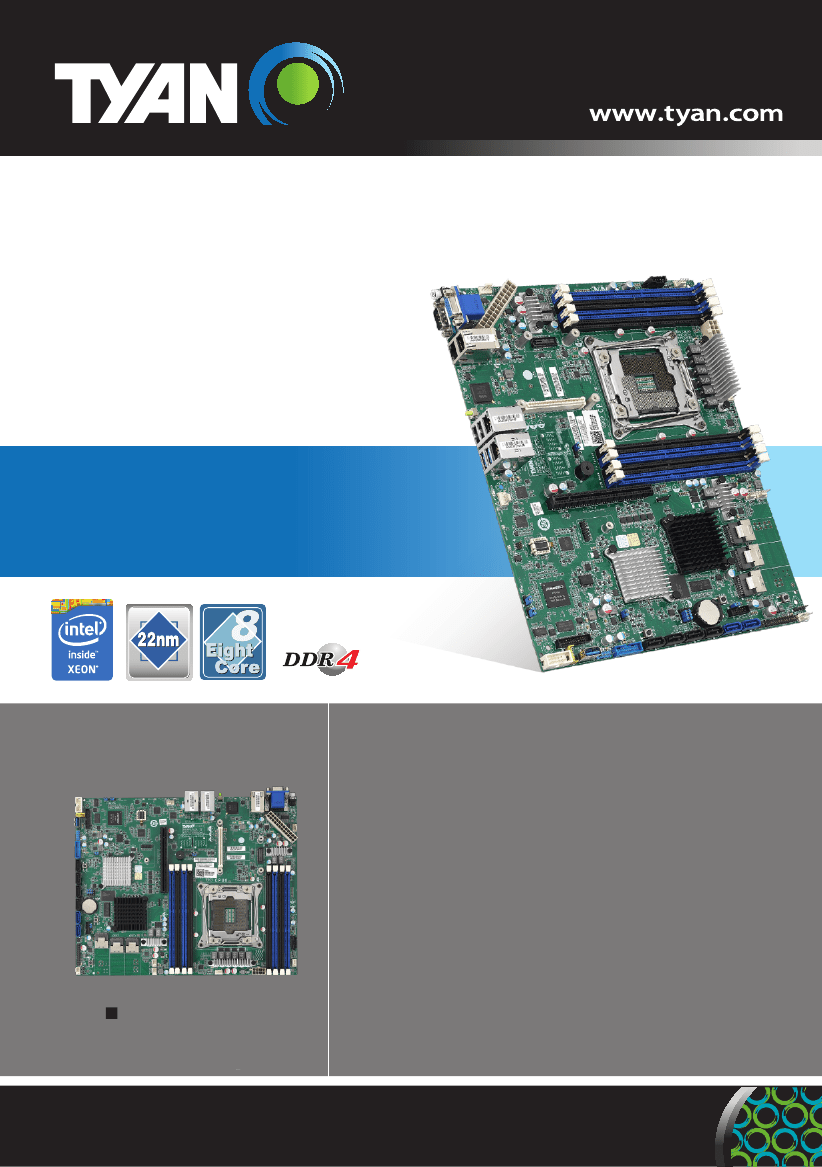

SINGLE-SOCKET
SERVER
PLATFORM
S5620WGM4NR / S5620WGM2NR
S5620GM2NR
S5620
Single-socket server implementation for
CSP deployment
●
Single
Intel
®
C612 Chipset
LGA2011 socket supports (1) Intel® Xeon® processor
E5-2600/E5-1600 v3 series processors
●
Intel® C612
●
(8) 288-pin DDR4 DIMM slots RDIMM 2133/1866/1600MHz;
LRDIMM/LRDIMM 3DS 2133/1600MHz
●
Support up to 256GB RDIMM/512GB LRDIMM/1,024GB LDRIMM 3DS
(*Follow latest Intel DDR4 Memory POR)
●
(1) PCI-E Gen3 x16 slot
●
(1) OCP Mezz. slot
●
(10) SATA ports by (6) SATA-III and (1) mini-SAS connectors running
at 6.0 Gb/s
●
(8) SATA/SAS ports by (2) mini-SAS connectors running at 6.0Gb/s
(-W SKU)
●
(4) GbE RJ45 (via Intel® I350-AM2/ I210, 1port shared with IPMI)
(2) GbE RJ45 (via Intel® I210, 1port shared with IPMI) (-2NR SKU)
●
ATX (12" x 9.6", 305mm x 243.8mm)
Specifications are subject to change without notice. Items pictured may only be representative.
S5620WGM4NR S5620WGM2NR / S5620GM2NR
S7070WGM2NR //S7070WA2NR / S7070A2NR
S7070GM2NR
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-1600 v3 series
processors
LGA2011 / (1)
Mini SAS (6.0Gb/s)*4
Mini SAS (6.0Gb/s)*4
LSI2308
PCI Express x8
PCI Express x16
Mini SAS HD
Mini SAS HD
PCIE Gen3 x8
PCIE Gen3 x8
PCIE Gen3 x16
PCIE Gen3 x4
PCIE Gen3 x4
S562
S7070
Socket Type / Q'ty
Chipset / PCH
Super I/O
Specifications

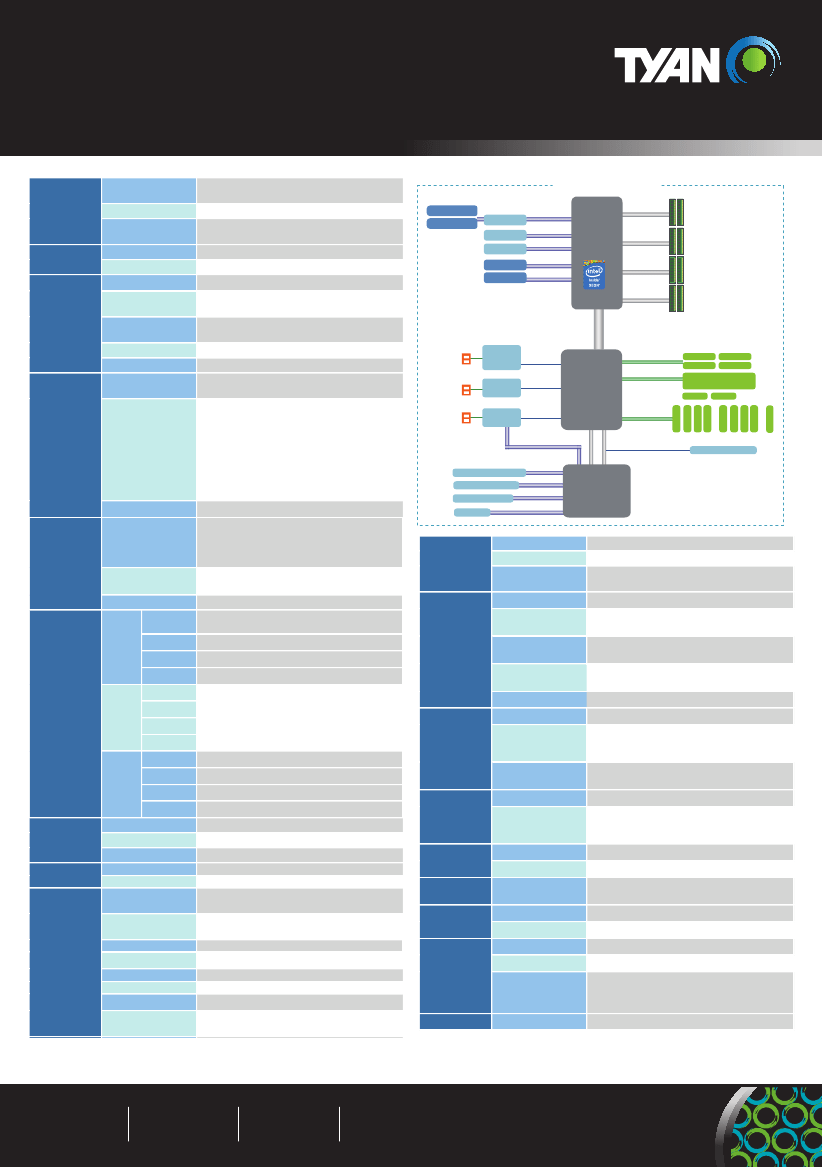

Block Diagram
DDR4 channel A
Processor
Thermal Design
Max up to 160W
Power (TDP)wattage
Chipset
Intel C612
-
RDIMM DDR4 2133/1866/1600 / LRDIMM DDR4
2133/1600 / LRDIMM 3DS DDR4 2133/1600
Up to 256GB RDIMM/ 512GB LRDIMM/ 1,024GB
LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
CPU 0
Haswell
EP - EP
(Socket R3)
RDIMM / LRDIMM
1600/1866/2133 MHz
DDR4 channel B
RDIMM / LRDIMM
1600/1866/2133 MHz
DDR4 channel C
RDIMM / LRDIMM
1600/1866/2133 MHz
Supported DIMM Qty
(8) DIMM slots
DIMM Type / Speed
DDR4 channel D
RDIMM / LRDIMM
1600/1866/2133 MHz
DMI Gen2 x4
Memory
4GB/S
Capacity
Mem ory channel
Mem ory voltage
PCI-E
4 Channels per CPU
1.2V
(1) PCI-E Gen3 x16 slot
(1) OCP Mezz. slot
M7062-B811-1T, PCI-E Gen3 x8, Broadcom 10GbE
Mezz Card / M7062-B810-2T, PCI-E Gen3 x8,
Broadcom 10GbE Mezz Card / M7076-X540-2T,
PCI-E Gen3 x8, Intel 10GbE Mezz Card / M7076-
I350, PCI-E Gen3 x8, Intel (2)GbE Mezz Card /
M7062-I599-1T, PCI-E Gen3 x8, Intel 10GbE Mezz
Card / M7062-I599-2T, PCI-E Gen3 x8, Intel 10GbE
Mezz Card
-
Total (4) GbE ports,
(1) port shared w ith IPMI (-4NR SKU)
Total (2) GbE ports,
(1) port shared w ith IPMI (-2NR SKU)
Intel I350-AM2 / Intel I210 (-4NR SKU)
Intel I210 (-2NR SKU)
RJ45
(2) Mini-SAS connectors (totally support 8 ports)
(-W SKU)
Dual Port
RJ45
Rear
Intel i350_AM2
PCIE Gen2 x2
Gb Lan
sSATA (6.0Gb/s) *4
sSATA0
sSATA2
sSATA1
sSATA3
RJ45
+ USB 2.0
Rear
PCH
Intel i210_AT
Gb Lan
PCIE Gen2 x1
SATA (6.0Gb/s) *6
MINI SAS(6.0Gb/s)*4
SATA0/ 1/ 2/ 3
SATA4
USB 2.0
USB 2.0
USB 3.0
USB 3.0
SATA5
USB 3.0
USB 2.0
USB 2.0
USB 3.0
USB 3.0
RJ45
+ USB 2.0
Rear
Intel i210_AT
Gb Lan
Wellsburg
C612
PCIE Gen2
LPC
PCIE Gen2 x1
USB2.0*3 / 3.0 *9
Expansion
Slots
Rear
Recom m ended
TYAN® OCP Card
NC SI Interface
Front
TPM / Debug Header
DDR3 Frame Buffer Memory
D-Sub Connector
Smart Fan Controller
COM Port
DDR III
RGB
PWM
UART
BMC
ASpeed AST2400
PCI
Port Q'ty
SAS
(2) Mini-SAS (4-in-1) connectors
(1) 2x12-pin SSI front panel header
(6) SATA-III + (4) SATA ports by (1) mini-SAS
connector
Onboard Aspeed AST2400
Monitors voltage for CPU, memory, chipset &
pow er supply
Monitors temperature for CPU & memory & system
environment
Over temperature w arning indicator / Fan & PSU
fail LED indicator
Watchdog timer support
Onboard Aspeed AST2400 (-M SKU)
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
24-bit high quality video compression / 10/100
Mb/s MAC interface
AMI / 16MB
User-configurable H/W monitoring / SMBIOS
2.7/PnP/Wake on LAN / PXE boot support / ACPI
3.0/ACPI sleeping states S1,S4,S5
ATX
12"x9.6" (305x243.8mm)
Please refer to our Intel OS supported list.
Class A
Yes
10° C ~ 35° C (50° F~ 95° F)
90%, non-condensing at 35° C
Non-operating Relative Humidity: 10% to 95%
(non-condensing)
LAN
Controller
Connector type
Connector
SAS
Input /Output
Front Panel
SATA
Chipset
Voltage
Controller
LSI SAS2308
Speed
RAID
6.0 Gb/s
RAID 0/1/1E/10 (LSI Integrated RAID)
System
Monitoring
Tem perature
LED
Others
Onboard Chipset
Connector
(6) SATA
Storage
SATA
Controller
Intel C612
Speed
RAID
6.0 Gb/s
RAID 0/1/10/5 (Intel RST)
Connector
(1) Mini-SAS (4-ports)
SSATA
Controller
Intel C612
Speed
RAID
Connector type
6.0 Gb/s
RAID 0/1/10/5 (Intel RST) only for 4 SATA devices
D-Sub 15-pin
Aspeed AST2400
Up to 1920x1200
-
-
(4)
(5)
(1)
(1)
-
-
-
SSI 24-pin + 8-pin + 8-pin pow er connectors
Total (4) GbE ports, (1) shared with IPMI (-4NR SKU)
Total (2) GbE ports, (1) shared with IPMI (-2NR SKU)
Server
Management
AST2400 IPMI
Featur
AST2400 iKVM
Feature
BIOS
Brand / ROM size
Feature
Graphic
Audio
Chipset
Resolution
Chipset
Version
USB
COM
Audio
Form Factor
Operating
System
Regulation
Form Factor
Board Dim ension
OS supported list
FCC (DoC)
CE (DoC)
Operating Tem p.
USB3.0 ports (2 at rear, 2 via cable)
USB3.0 ports (2 at rear, 2 via cable, Type-A)
port (at rear)
header
Input /Output
VGA
DVI
Display Port
Pow er
RJ-45
(1) D-Sub 15-pin VGA port
Operating
Environment
Non-operating Tem p.
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Hum idity
RoHS
RoHS 6/6 Com plaint
Yes
