SMP Male Limited Detent Connector Solder
Attachment Thru Hole PCB .127 inch Pin Length
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Attachment Method (Shield/Contact)
Body Style
SMP Male, Limited Detent
MIL-STD-348
Thru Hole
Solder
Straight
PE44936
Electrical Specifications
Impedance
50 Ohms
Mechanical Specifications
Size
Length
Width/Dia.
.
0.267 in [6.78 mm]
0.187 in [4.75 mm]
0.082 lbs [37.19 g]
SMP Male
Beryllium Copper, Gold
MIL-G-45204
Beryllium Copper, Gold
MIL-G-45204
Ultem
Weight
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Male Limited Detent Connector Solder Attachment Thru Hole PCB .127 inch Pin Length
PE44936
PE44936 REV 1.0
1
SMP Male Limited Detent Connector Solder
Attachment Thru Hole PCB .127 inch Pin Length
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
PE44936
SMP Male Limited Detent Connector Solder Attachment Thru Hole PCB .127 inch Pin Length from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMP Male Limited Detent Connector Solder Attachment Thru Hole PCB .127 inch Pin Length
PE44936
URL:
http://www.pasternack.com/smp-male-standard-thru-hole-pcb-connector-pe44936-p.aspx
PE44936 REV 1.0
2
SMP Male Limited Detent Connector Solder Attachment
Thru Hole PCB .127 inch Pin Length
PE44936

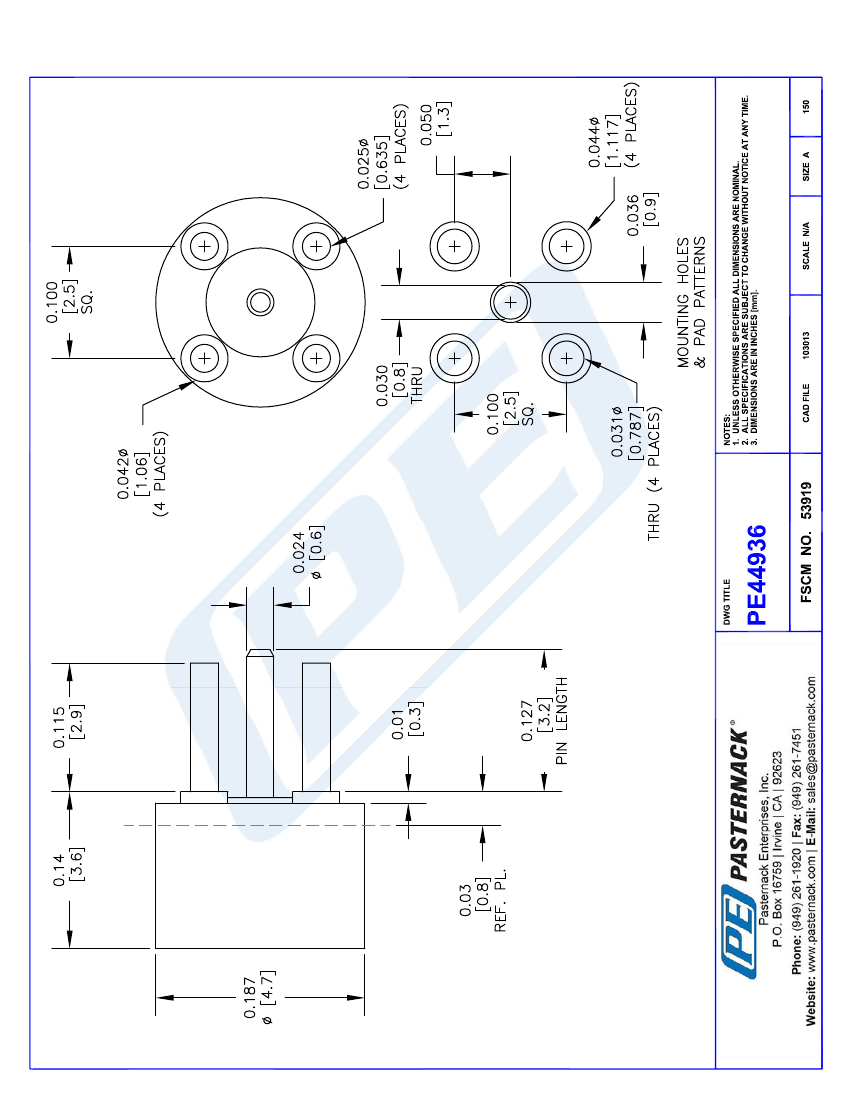

CAD Drawing
© 2014 Pasternack Enterprises All Rights Reserved
PE44936 REV 1.0
3
