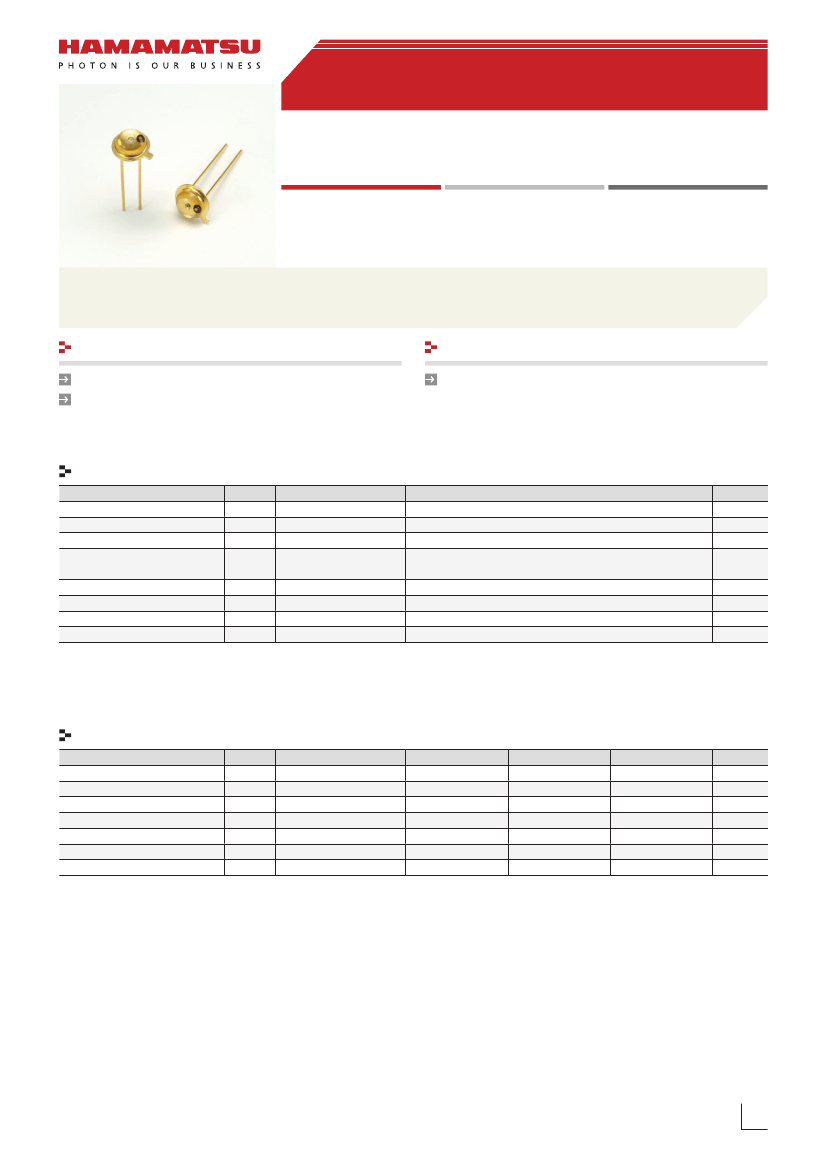

Infrared LED
L9338
For optical switches
The L9338 is an infrared LED developed for optical switches and is available at a low cost due to the improved manufacturing
process.
Features
High reliability
Low price
Applications
Optical switches
Absolute maximum ratings (Ta=25 °C, unless otherwise noted)
Parameter
Symbol
Condition
Reverse voltage
V
R
Forward current
I
F
Forward current reduction rate
-
Ta>25 °C
Pulse width=10
μs
Pulse forward current
I
FP
Duty ratio=1%
Pulse forward current reduction rate
-
Ta>25 °C
Power dissipation
P
Operating temperature
Topr
Storage temperature
Tstg
Value
5
80
1.1
1.0
13
150
-30 to +85
-40 to +100
*
1
Unit
V
mA
mA/°C
A
mA/°C
mW
°C
°C
*1:
Guaranteed to resist temperature cycle test of up to 5 cycles
Note: Exceeding the absolute maximum ratings even momentarily may cause a drop in product quality. Always be sure to use the
product within the absolute maximum ratings.
Electrical and optical characteristics (Ta=25 °C)
Parameter
Peak emission wavelength
Spectral half width
Forward voltage
Pulse forward voltage
Reverse current
Radiant
fl
ux
Cutoff frequency*
2
Symbol
λp
∆λ
V
F
V
FP
I
R
ɸe
fc
Condition
I
F
=50 mA
I
F
=50 mA
I
F
=50 mA
I
F
=1 A
V
R
=5 V
I
F
=50 mA
I
F
=50 mA ± 4 mAp-p
Min.
920
-
-
-
-
10
0.1
Typ.
945
60
1.34
3.1
-
15
0.3
Max.
970
-
1.42
3.8
5
-
-
Unit
nm
nm
V
V
μA
mW
MHz
*2:
Frequency at which the optical output drops by 3 dB from that at 10 kHz
www.hamamatsu.com
1

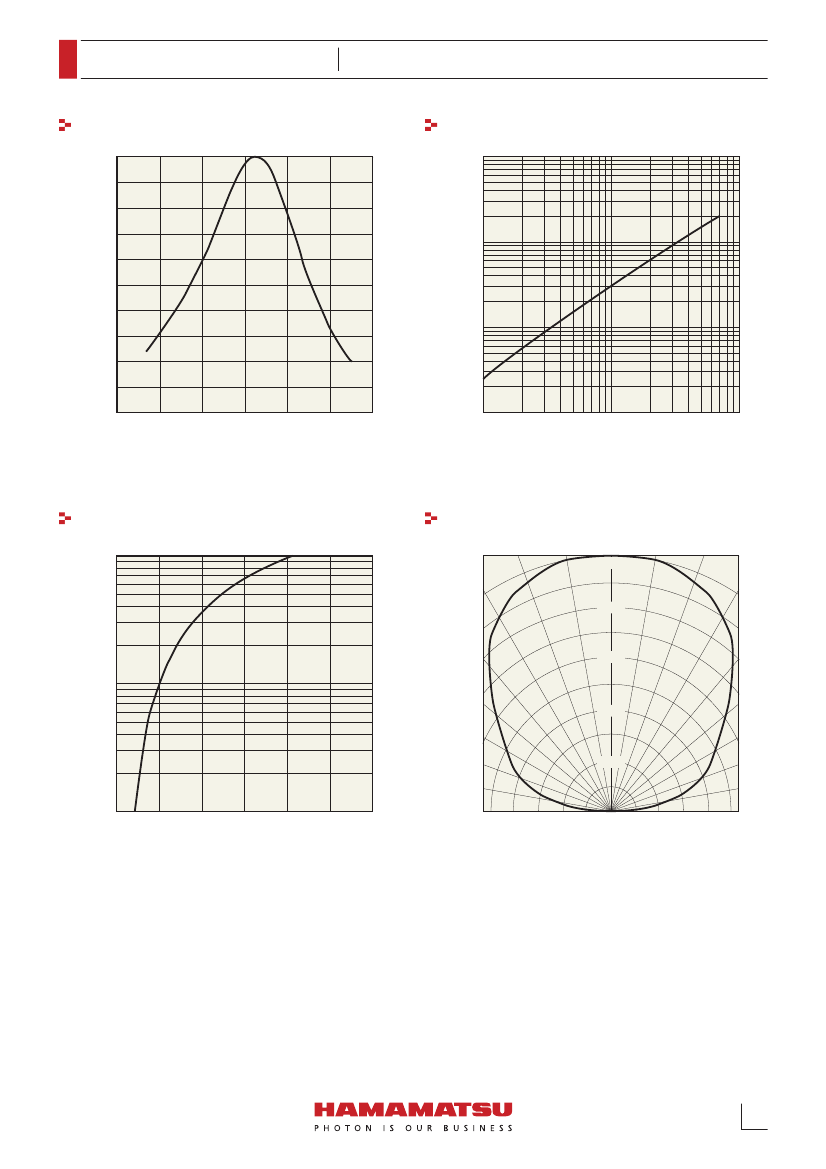

Infrared LED
L9338
Dimensional outline (unit: mm)
Clear epoxy resin ϕ4.2 ± 0.1
2.3 ± 0.3
1.12 ± 0.1
13.5 ± 1
KLEDA0081EA
ϕ5.4 ± 0.1
ϕ0.45 ± 0.05
lead
ϕ2.54 ± 0.2
Common to case
