Part Number

Search

PE4028

Description
SMA Male Right Angle Connector Clamp/Solder Attachment For RG316, RG174, RG188
CategoryThe connector    The connector
File Size453KB,3 Pages
ManufacturerPasternack Enterprises
Websitehttps://www.pasternack.com/
Download Datasheet Parametric View All

PE4028 Overview

SMA Male Right Angle Connector Clamp/Solder Attachment For RG316, RG174, RG188

PE4028 Parametric

Parameter NameAttribute value
MakerPasternack Enterprises
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeRF SMA CONNECTOR
Manufacturer's serial numberPE4028
SMA Male Right Angle Connector Clamp/Solder
Attachment For RG316, RG174, RG188

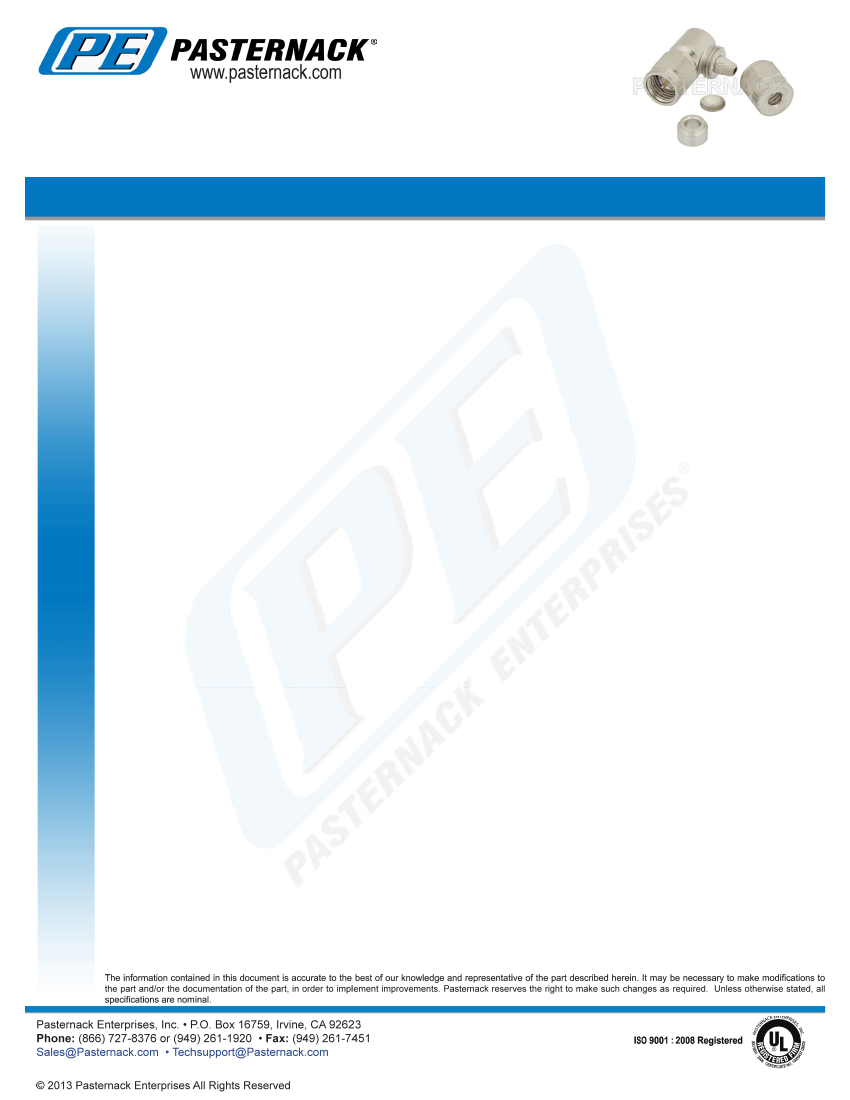

TECHNICAL DATA SHEET
SMA Male Right Angle Connector Clamp/Solder Attachment For RG316, RG174, RG188
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMA Male
MIL-C-39012
RG316,RG174,RG188
Clamp/Solder
Right Angle
PE4028
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 12.4
50
1.52:1
250
750
Mechanical Specifications
Temperature
Operating Range, deg C

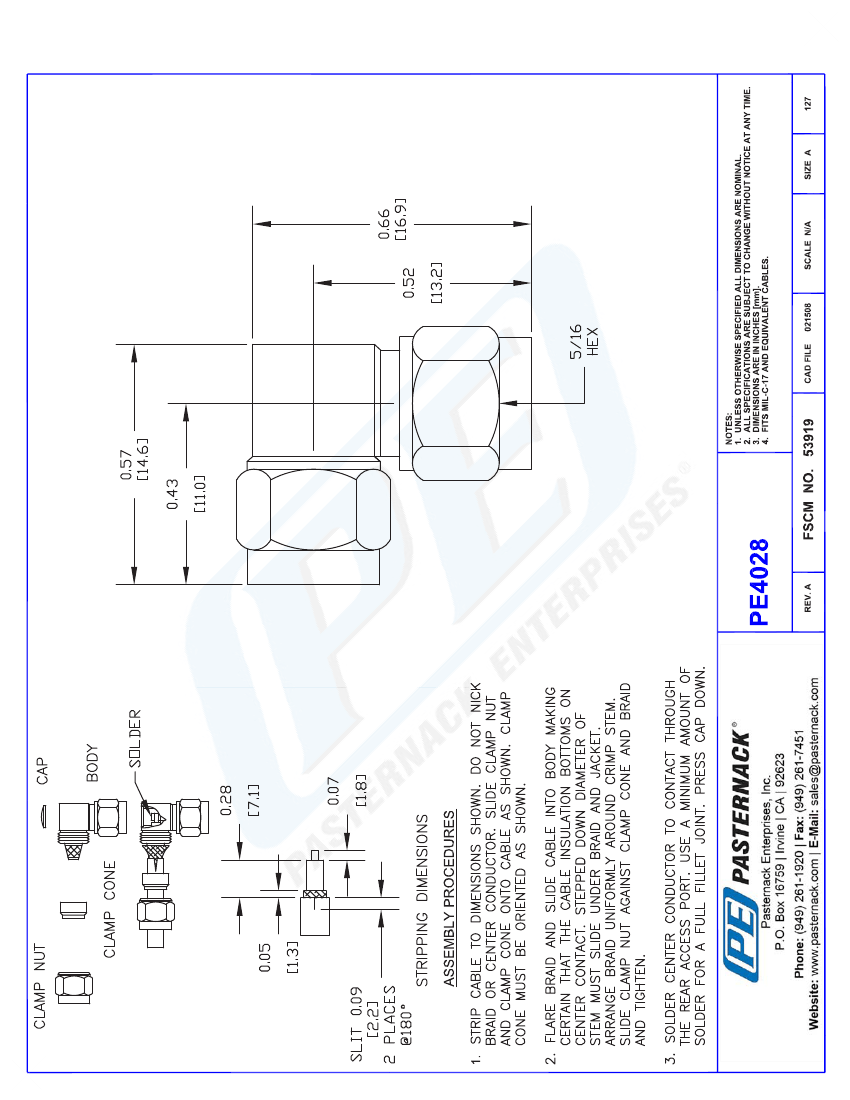

Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
0.664 [16.87]
0.312 [7.92]
0.574 [14.58]
0.013 [5.9]
SMA Male
500
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
5/16
5 [0.57]
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Mating Cycles
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications:
SMA Male Right Angle Connector Clamp/Solder Attachment For RG316, RG174,
RG188 PE4028
PE4028 REV
1
