SHV Plug Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SHV Plug
MIL-STD-348A
RG58,RG55,RG141,RG142,RG223,RG400
Clamp/Solder
Straight
PE4316
SHV Plug Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400
Electrical Specifications
Frequency Range, MHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 300
50
1.3:1
3,500
5,000
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
1.77 [44.96]
0.571 [15]
0.055 [24.95]
SHV Plug
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SHV Plug Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223,
RG400 PE4316
PE4316 REV
1
SHV Plug Connector Clamp/Solder Attachment For
RG58, RG55, RG141, RG142, RG223, RG400
TECHNICAL DATA SHEET
PE4316
URL:
http://www.pasternack.com/shv-plug-standard-rg58-rg55-rg141-rg142-rg223-rg400-connector-pe4316-p.aspx
SHV Plug Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400 from Pasternack
Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s
broadest selection of RF, microwave and fiber optic products.
PE4316 REV
2
PE4316

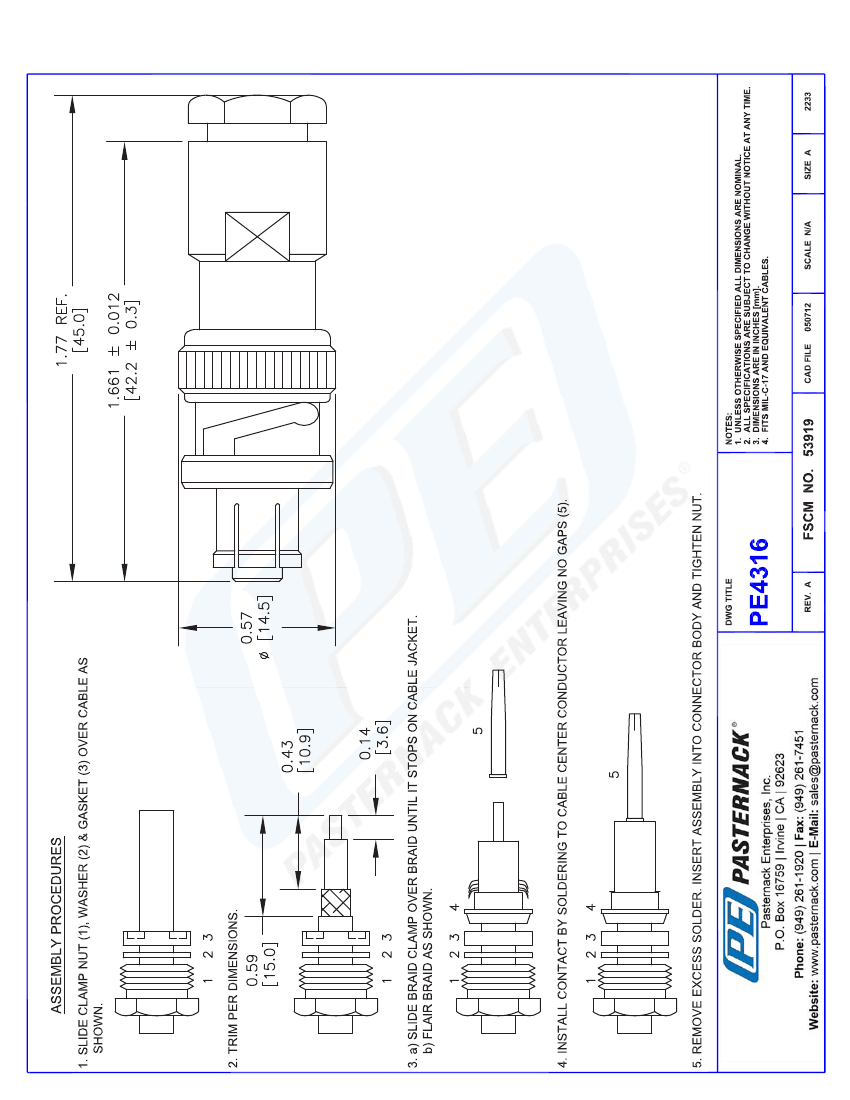

CAD Drawing
