N Female Connector Crimp/Solder Attachment 4 Hole Flange
For RG214, RG9, RG225, RG393, .718 inch Hole Spacing
TECHNICAL DATA SHEET
PE44066
N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG214, RG9, RG225, RG393, .718 inch
Hole Spacing
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
N Female
RG214,RG9,RG225,RG393
Crimp/Solder
Straight
4 Hole Flange
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
1.645 [41.78]
1 [25.40]
1 [25.4]
0.082 [37.19]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
N Female
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG214, RG9, RG225,
RG393, .718 inch Hole Spacing PE44066
PE44066 REV 01
1
N Female Connector Crimp/Solder Attachment 4 Hole Flange
For RG214, RG9, RG225, RG393, .718 inch Hole Spacing
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44066
N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG214, RG9, RG225, RG393, .718 inch Hole Spacing from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic
products maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Connector Crimp/Solder Attachment 4 Hole Flange For RG214, RG9, RG225, RG393,
.718 inch Hole Spacing PE44066
URL:
http://www.pasternack.com/n-female-standard-rg214-rg9-rg225-rg393-connector-pe44066-p.aspx
PE44066 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
PE44066

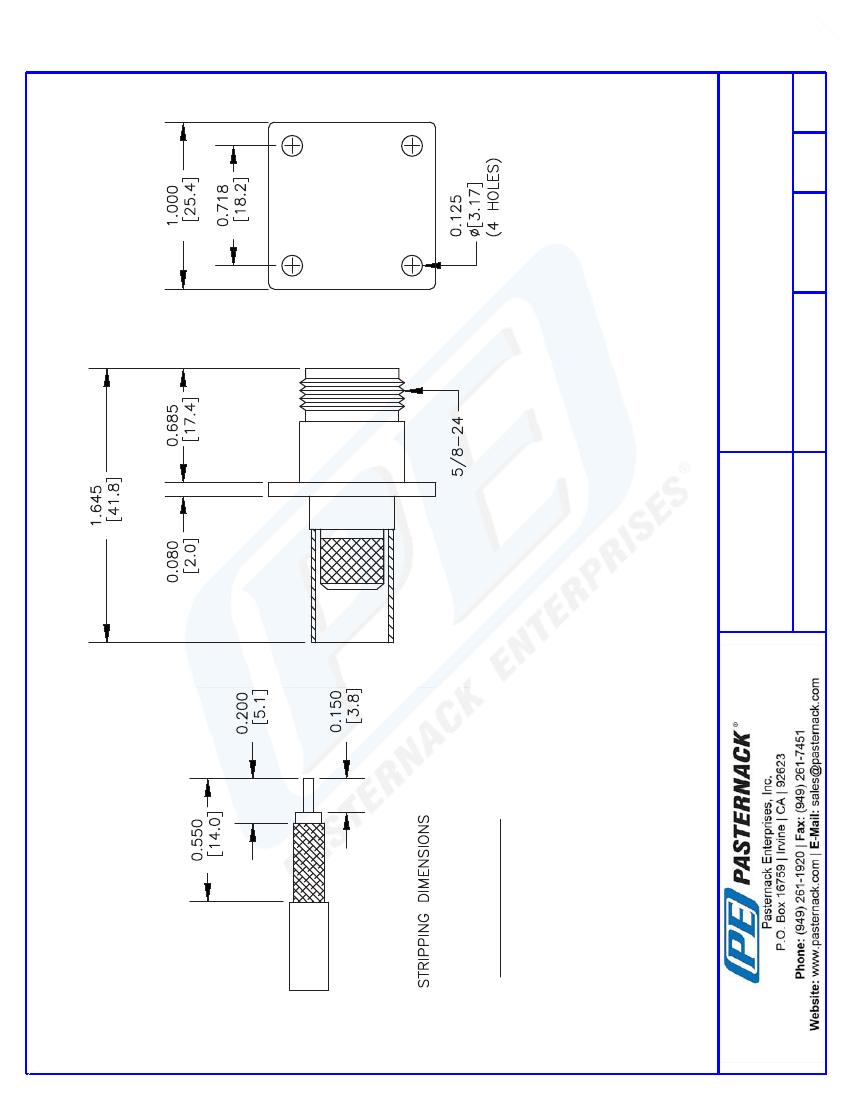

CAD Drawing
N Female Connector Crimp/Solder Attachment 4 Hole Flange For
RG214, RG9, RG225, RG393, .718 inch Hole Spacing
PE44066 REV 01
CRIMP SIZE REQUIRED
CONTACT: SOLDER
FERRULE: .429" HEX CRIMP TOOL
PE44066
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
CAD FILE
062402
SCALE N/A
SIZE A
XXXX
3
