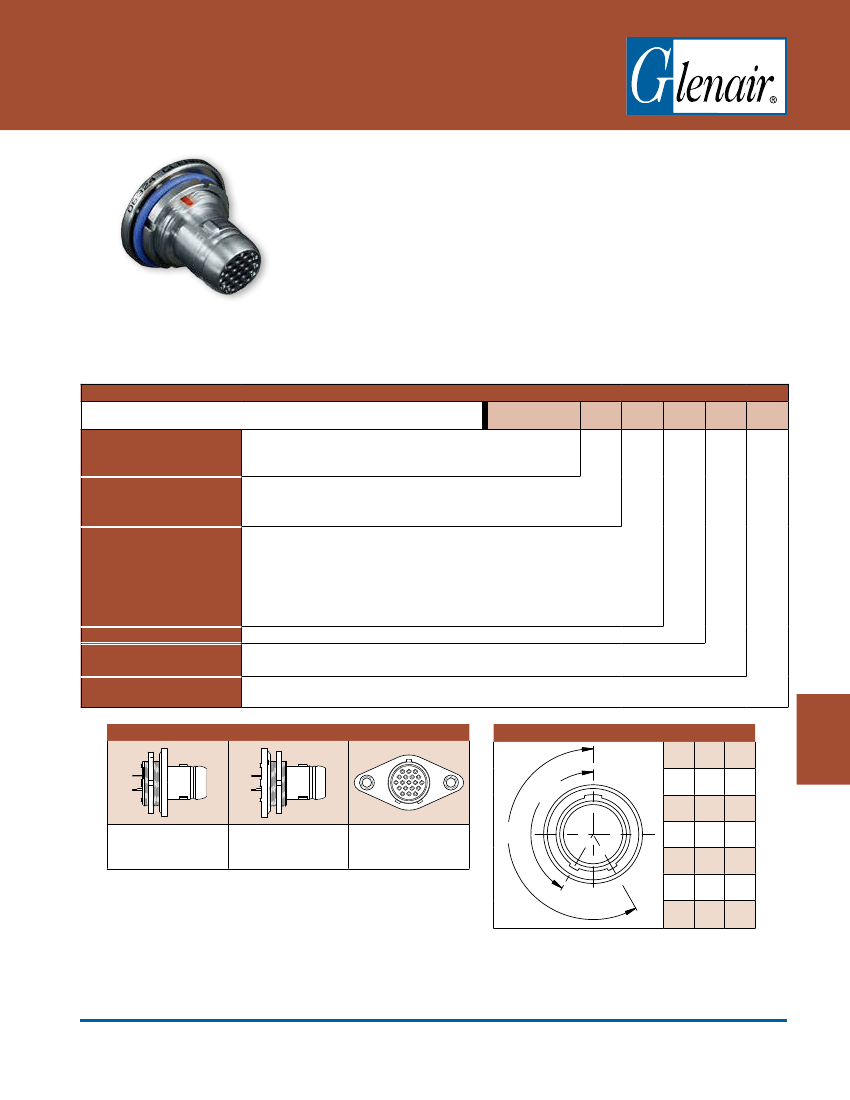

804-009, 804-021 Ordering Information
Panel Mount Plugs
save space inside the box compared to Series 804 removable
contact receptacles. Factory-installed non-removable contacts. Solder cup or
printed circuit board terminals. Available in front or rear panel and flange mount
versions.
Ingress Protection, Unmated
Specify
804-009
connectors for applications where
open face water immersion is not a requirement. For IP67 ingress protection and
MIL-STD-810 Method 512 immersion requirements, specify
804-021
watertight
connectors certified to meet one atmosphere pressure differential in open face
condition from -40° to +70°C.
"Push-Pull" Quick-Disconnect
Canted spring securely retains the mating plug.
How To Order
Sample Part Number
804-009
= Panel Mount Plug, Standard Potting
Series
804-021
= Panel Mount Plug
,Resilient Silicone Potting for
Watertight Seal from -40° to +70°C (1 ATM Pressure Differential)
-00
= Front Panel Mount Jam Nut (See Table IV)
-02
= Flange Mount
-07
= Rear Panel Mount Jam Nut (See Table III)
C
= Aluminum / Black Anodize (Non-Conductive); RoHS Compliant
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
804-009
-07
NF
10-26
E
A
Shell Style (See Table I)
Shell Material and Finish
Shell Size - Insert Arrangement
See Contact Arrangements Page G-2
P
= Pin, PC Tail
E
= Pin, Solder Cup
Contact Type
S
= Socket, PC Tail
F
= Socket, Solder Cup
Shell Key Positions
(See Table II)
Omit
= Single Master Key
A
= Normal
B
= Pos. B
C
= Pos. C
Table I: Shell Style
D
= Pos. D
E
= Pos. E
F
= Pos. F
Table II: Alternate Keyway Positions
Pos.
A°
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A
B
-00
Jam Nut, Front Panel
Mount
-07
Jam Nut, Rear Panel
Mount
-02
Flange Mount
B°
C
D
E
F
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-11
E-Mail: sales@glenair.com
Series 804
Series 804 Push-Pull Mighty Mouse
PC Tail or Solder Cup Panel Mount Plug
G
RF/Wirelessly
