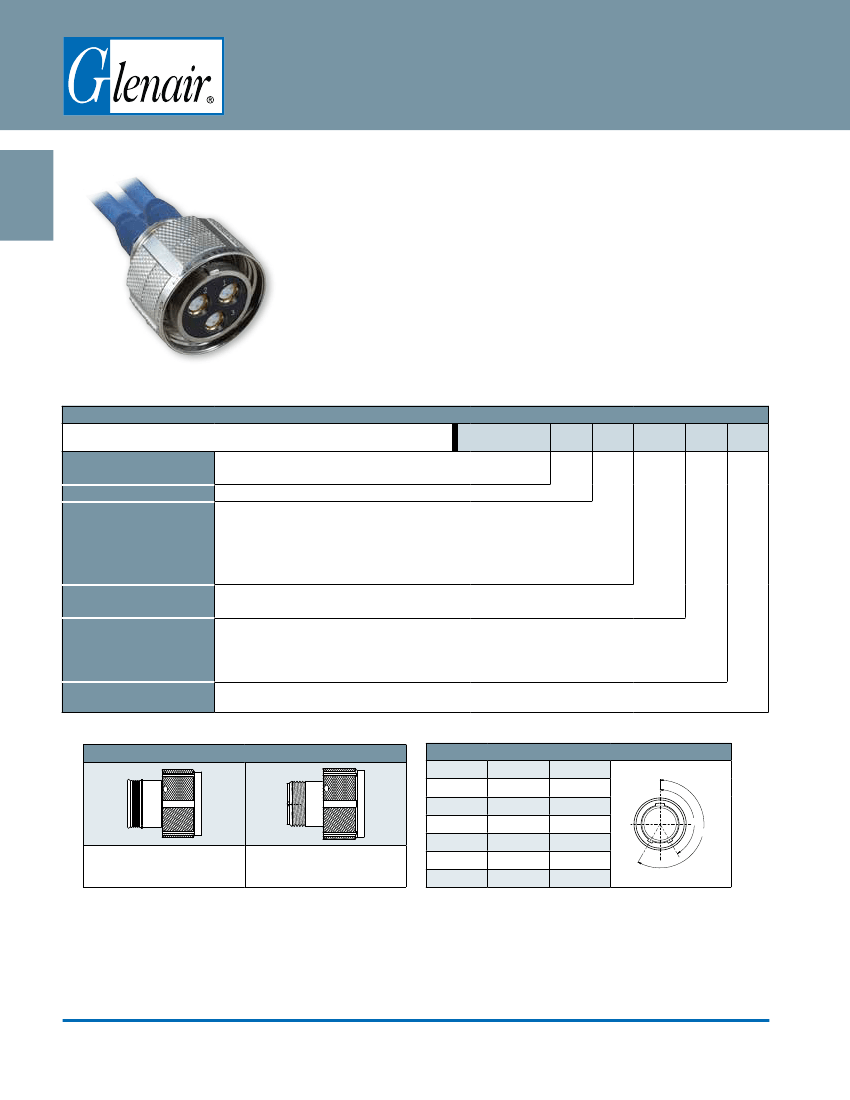

Series 805 Mighty Mouse Size #8 Connector Plug
with Quadrax, Twinax, Coax or Power Contacts
805-001 and 805-002 - Shell Style -16 Ordering Information
Series 805 Plug Connectors with Size #8 Contacts
Series 805 Mighty Mouse plugs feature damage-resistant triple start ACME mating
threads, anti-decoupling ratchet and ground spring for EMI protection. New Mighty
Mouse contact arrangements accept size #8 contacts for power, Ethernet or high
frequency coax applications. Available with integral band platform or accessory
attachment threads, these plugs are supplied with power contacts for AWG #8 wire
(contact types P or S). Or, specify contact types A or B for connectors supplied less
power contacts for use with quadrax, twinax or coax contacts purchased separately.
Contacts are crimp type and are snap-in, rear-release with plastic extraction
tool sold separately. Aluminum or stainless steel shell, thermoplastic insulators,
fluorosilicone rubber seals.
Optional wire sealing boot is recommended. See boot ordering information on
page K- 17.
How To Order
Sample Part Number
Series (See Table I)
Shell Style
805-001
= Plug with Banding Platform
805-002
= Plug with Rear Accessory Thread
-16
= Plug with Anti-Decoupling Ratchet
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZR
= Aluminum / Zinc-Nickel with Non-Reflective Black Chromate RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
10-1, 18-2, 19-3, 21-4, 23-5, 18-208, 19-205, 21-201, 21-202, 23-200
(See page K-2)
Connector supplied
with size #8 contacts
P
= Pin with #8 Power Contacts
S
= Socket with #8 AWG Power Contacts
Shell Key Positions
A
= Normal
(See Shell Key Position Table)
B
= Pos. B
C
= Pos. C
D
= Pos. D
Connector supplied without contacts (Order
quadrax, twinax or coax contacts separately.)
A
= Pin Connector, Less Contacts
B
= Socket Connector, Less Contacts
E
= Pos. E
F
= Pos. F
Mighty Mouse
with #8 Contacts
K
805-001
-16
M
19-205
P
A
Shell Material and Finish
Shell Size - Insert
Arrangement (See Table II)
Contact Type
Table I: Series
Position
A
B
C
D
805-001
Plug with Banding Platform
805-002
Plug with Accessory Thread
E
F
Table II: Shell Key Positions
A°
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
A°
B°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-16
