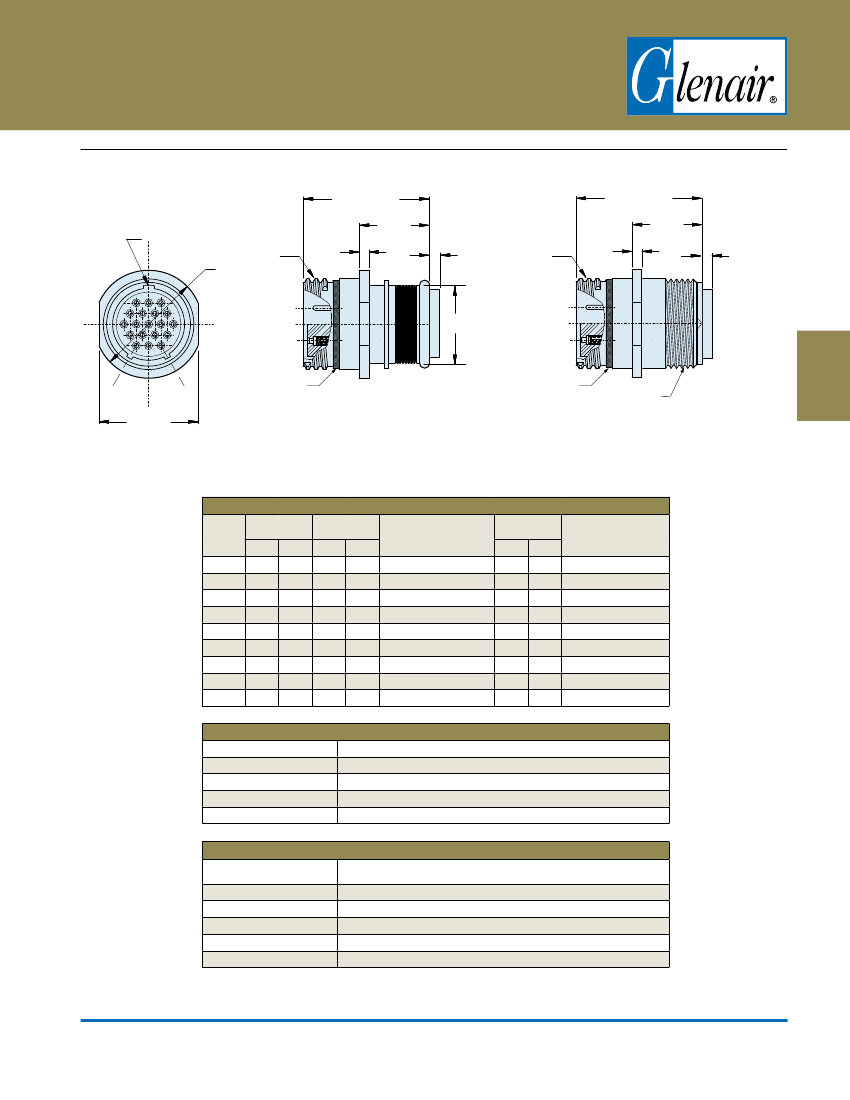

805-003-01 and 805-004-01 Dimensions
In-line cable receptacle - shell style 01
1.030 (26.16)
MAX
.430
(10.92)
MAX
.060
(1.52)
1.030 (26.16)
MAX
.430
(10.92)
MAX
.060
(1.52)
MASTER
KEYWAY
øA
C
THREAD
.150 (3.81)
C
MAX
*
THREAD
.150 (3.81)
MAX
*
øD
RED FULL MATE
INDICATOR BAND
B FLAT
RED FULL MATE
INDICATOR BAND
RECEPTACLE WITH
INTEGRAL BAND
PLATFORM
805-003-01
E THREAD
RECEPTACLE WITH
ACCESSORY THREAD
805-004-01
*Grommet protrudes for
power/combo arrangements
Dimensions
Shell
Size
8
9
10
11
12
15
18
19
23
ØA
In.
.540
.605
.668
.730
.793
.980
1.165
1.235
1.485
mm.
13.72
15.37
16.96
18.54
20.14
In.
.510
.575
.638
.700
.763
B
mm.
12.95
14.61
16.21
17.78
19.38
C Threads
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
1.1250-.1P-.3L-TS-2A
1.1875-.1P-.3L-TS-2A
1.4375-.1P-.3L-TS-2A
ØD
In.
.316
.397
.472
.519
.585
.687
.884
.884
1.134
mm.
8.05
10.08
12.01
13.18
14.86
17.45
22.45
22.45
28.80
E Threads
Accessory
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
.7500-20 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
1.1875-18 UNEF-2A
24.89 .950 24.13
29.59 1.135 28.83
31.37 1.205 30.61
37.72
1.455 36.96
Performance Specifications
DWV
Insulation Resistance
Operating Temperature
Immersion, Mated
EMI
23 500 VAC Sea level, 20HD 750 VAC, 12 AND 16 1800 VAC
5000 Megohms Minimum
-55° C. to +150° C.
MIL-STD-810 Method 512. One Meter for One Hour.
65 dB Minimum from 1 GHz. to 10 GHz.
Materials and Finishes
Connector Shell
Insulator
Seals
Pin Contact
Socket Contact
Contact Retainer Clip
Aluminum or Stainless Steel
Liquid Crystal Polymer (LCP)
Fluorosilicone Rubber, Blue
Copper Alloy, Gold over Nickel Plating
Copper Alloy, Gold over Nickel Plating, with SST Hood
Copper alloy, Unplated
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
