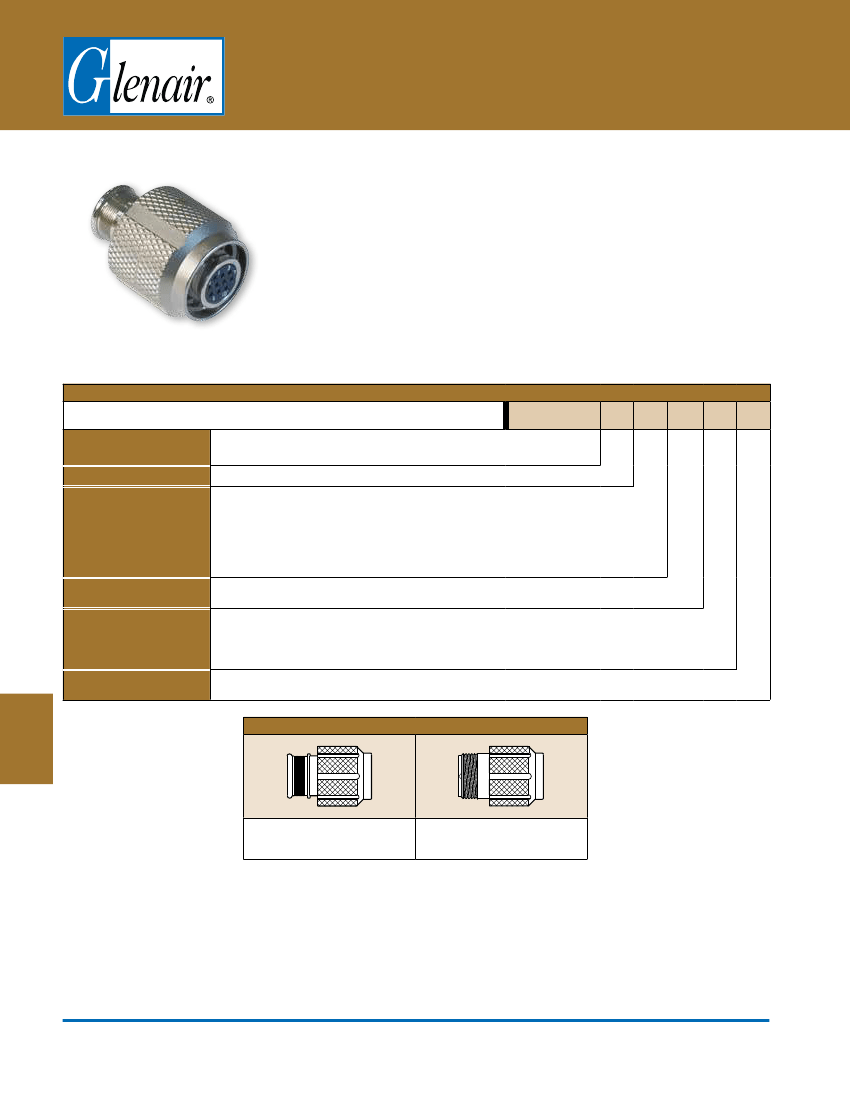

Series 805 Mighty Mouse
High-Speed
Triple-Start ACME Threads Plug Connector
805-020 and 805-021 Ordering Information
Glenair Series 805 Mighty Mouse
High-Speed
connectors feature Triple-start
modified stub ACME mating threads for improved protection against cross-mating
and thread damage. Connector shells are machined aluminum or stainless steel.
The connector is equipped with special PFA (Teflon) insulators and is optimized
for use with high-speed differential wire such as our 963-001 cable. Five insert
arrangements are offered with 4, 7, 10, 19 and 26 #23 AWG contacts, packaged
separately. Terminate contacts with standard M22520 tools. Metal clips inside the
connector body lock contact into place. Contacts are removable. Fluorosilicone
seals and rear grommet protect connector from water ingress. Terminate cable
shield directly to connector body with Band-Master™ ATS strap, or choose rear
accessory thread to attach optional cable clamp or backshell.
Series 805
High-Speed
Sample Part Number
Series (See Table I)
Shell Style
-16
=
Plug
Shell Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table II)
Connector supplied
with contacts
P
= Pin
S
= Socket
A
= Normal
How To Order
805-020
805-020
= With Banding Platform
805-021=
With Accessory Thread
-16
M
9-10
P
A
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
8-4, 8-7, 9-10, 11-19, 12-26
(See Page R-3)
Connector supplied
without contacts
A
= Pin Connector, less contacts
B
= Socket Connector, less contacts
D
= Pos. D
E
= Pos. F
F
= Pos. F
Connector supplied
with 30 AWG Crimp Barrel
G
= #23 Pin
H
= #23 Socket
B
= Pos. B
C
= Pos. C
R
Table I: Series
805-020
Plug with Banding Platform
805-021
Plug with Accessory Thread
Dimensions in Inches (millimeters) are subject to change without notice.
