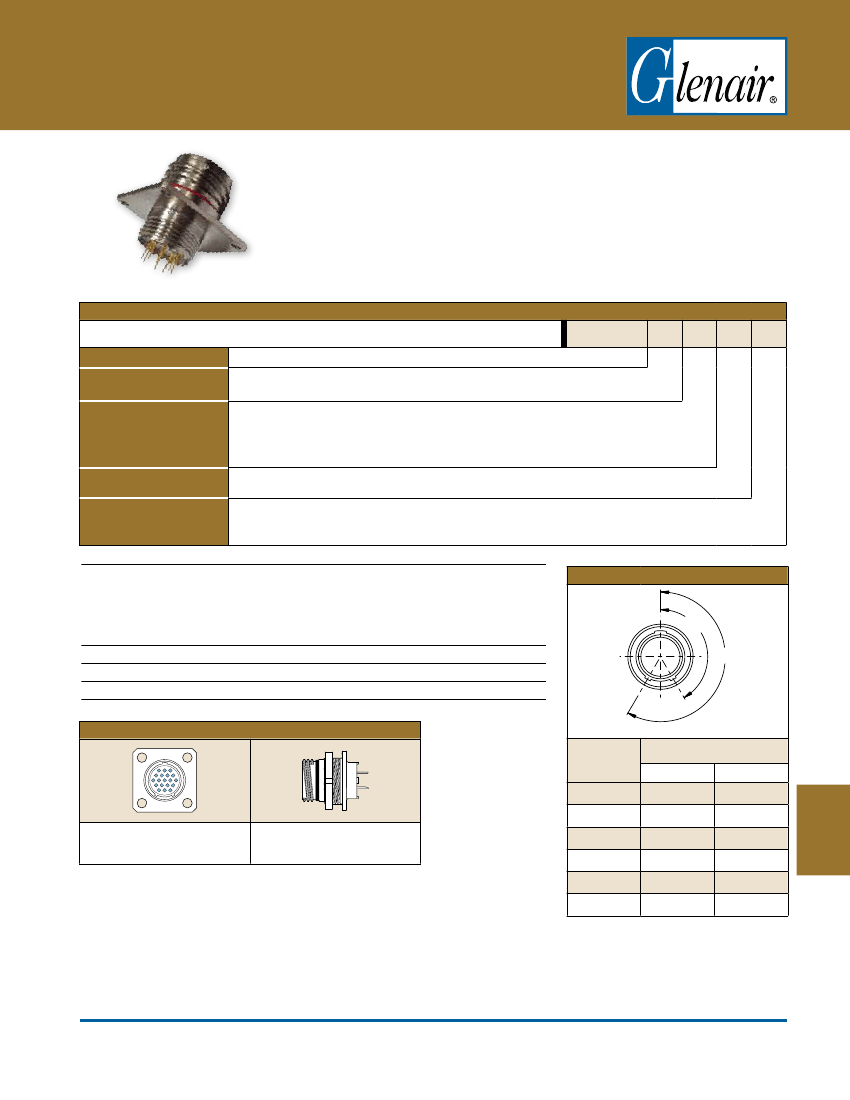

805-111 Ordering Information
CAT-MASTER™
series 805 receptacle
is available with CAT 6 or CAT 7 cable
and offers improved signal integrity,
reduced crosstalk, and enhanced
attenuation performance compared to
standard shielded contacts.
Unmated Water Immersion,
For MIL-
STD-810 Method 512G immersion
requirements, specify mod code “MOD-
518”. These connectors are 100% tested
to maintain a helium leak rate of 1 x 10
-4
cc/second at one atmosphere pressure
differential from -40C to +70C.
How To Order
Sample Part Number
Series
Shell Style
805-111
= PC Tail Receptacle
-02 =
Square Flange
-07
= Rear Panel Mout Jam Nut
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. E
F
= Pos. F
805-111
-02
M
A
Shell Material and Finish
Shell Key Position
(See Table I)
Sealing Level
(Open Face)
Omit
= IP64, “Splash Proof”
518
= IP67 Mod Code 518 Connector Tested 100% For Helium Leak Rate Of 1 X 10-4 CC/Second Max at One
Atmosphere Pressure Differential
Performance Specifications
When mated to 805-109 plug, connector meets electrical transmission requirements per IEC 11801
(Ref. CAT 7)
NOTES
Table I: Key Positions
Characteristic
Min Return Loss (dB)
Max Insertion Loss (dB)
Min Next (dB)
@ 1 MHz
30
0.10
80
@ 100 MHz
28
0.20
72.4
@ 250 MHz @ 600 MHz
20
12.4
0.32
0.49
66.4
60.7
A°
B°
Table I: Shell Style
Key Position
Normal (A)
B
-02
Square Flange
-07
Jam Nut
C
D
E
F
Key Rotation
A
150°
75°
95°
40°
75°
95°
B
210°
210°
230°
275°
275°
210°
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
H-37
E-Mail: sales@glenair.com
Series 805
Series 805 Mighty Mouse Triple-Start ACME Thread
CAT–MASTER™ 10Gbase-T CAT 6 & 7 PCB Receptacle
