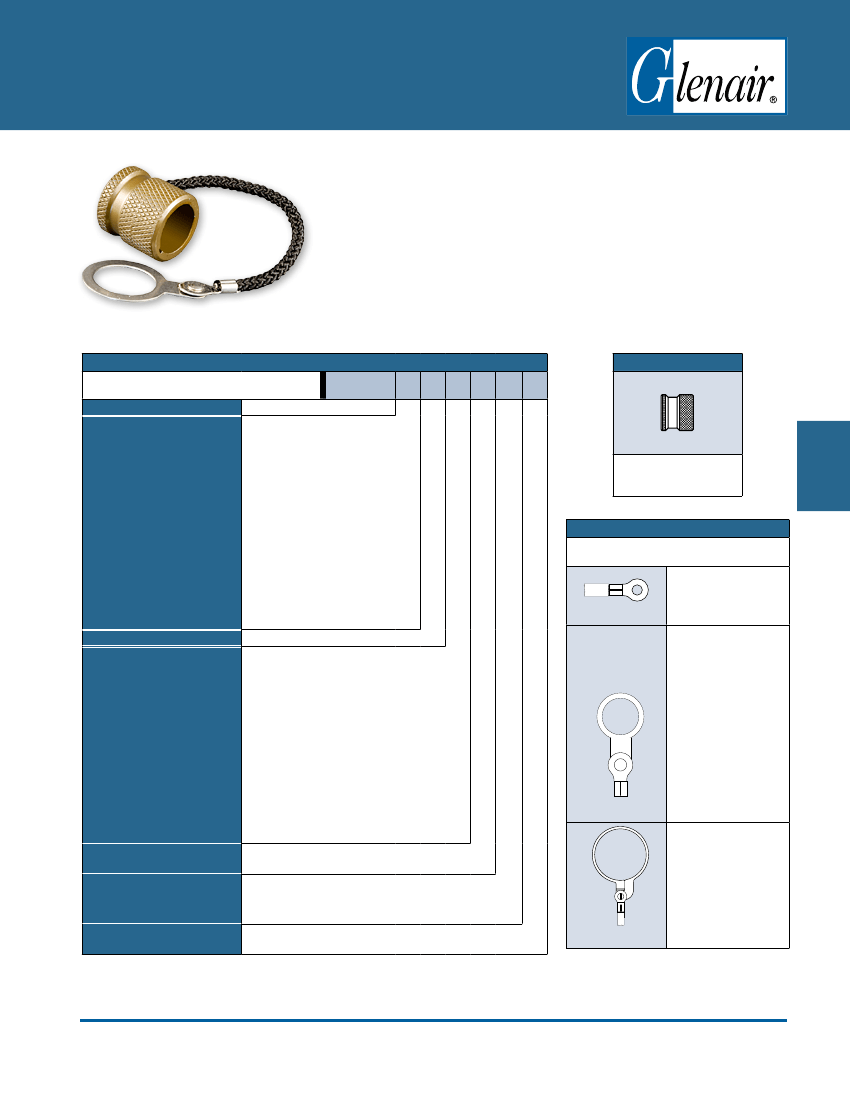

809-198 Ordering Information
Protect Connectors From Damage
Machined aluminum covers prevent
ingress of contamination and water.
Stainless Steel Fittings and Rings
Choose small diameter eye fittings for
panel attachment. Larger rings fit under
the jam nut or over cable jackets. Split
rings can be installed on fully assembled
cables.
Polyurethane-Coated SST Wire
Rope
offers high strength, excellent
abrasion resistance and good
flexibility. Or, choose Teflon
®
jacket for
high temperature exposure.
Braided Nylon Rope
provides
excellent flexibility and good abrasion
resistance, and can be ordered with
slip knot fittings for easy installation
on any size cable.
Table I: Cover Style
M
9
H
6
-14
A
How To Order
Sample Part Number
Series (See Table I)
809-198
809-198
= Receptacle Cover
C
= Aluminum / Black Anodize
(Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel
RoHS Compliant
NF
= Aluminum / Cadmium with
Olive Drab Chromate
ZN
= Aluminum / Zinc-Nickel with
Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with
Black Chromate
MT
= Aluminum / Nickel-PTFE RoHS
Compliant
Z1
= Stainless Steel / Passivated
RoHS Compliant
5, 6, 7, 8, 9, 10, 11, 12, 14, 15
D
= Bead Chain, CRES, Passivate
F
= Wire Rope, Nylon Jacket
G
= Nylon Rope
H
= SST Wire Rope, Teflon® Jacket
N
= No Attachment
R
= Wire Rope, PVC Jacket
S
= SST Sash Chain
SK
= Nylon Rope With Slip Knot
T
= SST Wire Rope, No Jacket
U
= SST Wire Rope, Polyurethane Jacket
“SST” = Stainless Steel
Attachment Length (inches)
Attachment Code
(See Table II)
Alternate Key Position
Omit for attachment Type N (No Attachment)
Example: “-6” equals six inch length
Small Ring =
01
thru
06
Large Ring =
14
thru
33
Split Ring =
50
thru
68
Omit for master keyway only, for all other positions indicate
A,
B, C, D, E,
or
F
Dimensions in Inches (millimeters) are subject to change without notice.
809-198
Push-Pull Plug Cover
Shell Material / Finish
Table II: Attachment Code
Omit for attachment Type
N
(No Attachment)
and
SK
(Slip Knot)
-01
– .126 (3.20) I.D.
-02
– .145 (3.68) I.D.
-04
– .188 (4.78) I.D.
Small Ring
-06
– .197 (5.00) I.D.
-32
– .265 (6.73)
-29
– .315 (8.00)
-14
– .385 (9.78)
-33
– .510 (12.95)
-15
– .445 (11.30)
-16
– .570 (14.48)
-17
– .635 (16.13)
-18
– .695 (17.65)
-27
– .766 (19.46)
-26
– .950 (24.13)
-31
– .820 (20.83)
-28
– 1.015 (25.78)
-20
– 1.070 (27.18)
Solid Ring
-21
– 1.135 (28.83)
-50
– .420 (10.67) I.D.
-52
– .480 (12.19) I.D.
-54
– .635 (16.13) I.D.
-56
– .745 (18.92) I.D.
-58
– .885 (22.48) I.D.
-60
– 1.010 (25.65) I.D.
-64
– 1.125 (28.58) I.D.
-68
– 1.345 (34.16) I.D.
Shell Size
Attachment Type
Split Ring
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-63
E-Mail: sales@glenair.com
Accessories
Series 804 Push-Pull Mighty Mouse
Protective Plug Cover
