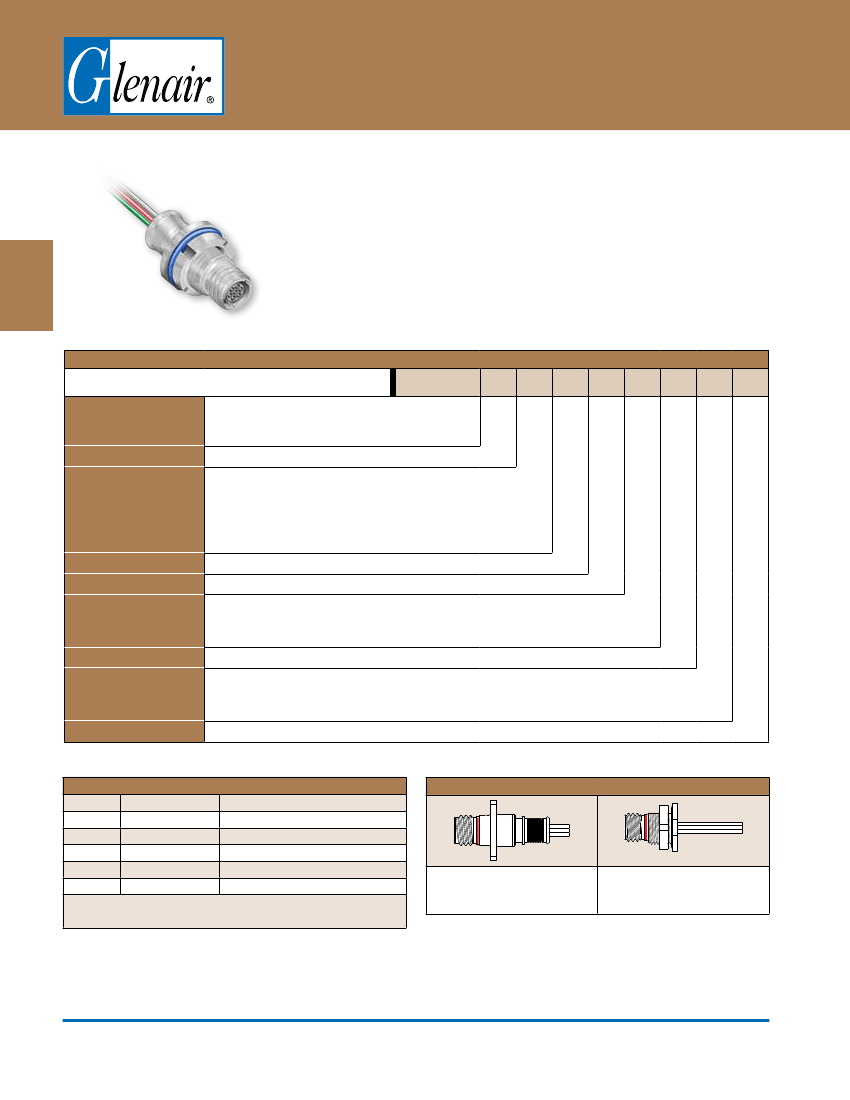

Series 811 Mighty Mouse High Density (HD)
Pre-Wired Jam Nut Receptacle Connectors
811-003-07 and 811-004-07
Jam Nut Pigtail Receptacles
Series 811 Mighty Mouse High Density rear panel
mount jam nut receptacles feature damage-resistant double-start ACME mating
threads. These receptacles are factory-terminated to insulated wire and backpotted
with epoxy. The TwistPin contact system meets requirements of MIL-DTL-83513 and
provides outstanding resistance to high levels of shock and vibration. Choose Type
K general purpose Teflon® wire or Type J lightweight space-grade Tefzel® wire. 3A
current rating, 600 VAC dielectric withstanding voltage.
Mighty Mouse
High Density
L
How To Order
Sample Part Number
Series
Material/Finish
811-003-07
811-003-07
= Jam Nut Mount with Band Platform
811-004-07
= Low Profile Jam Nut Mount, no Band
Platform
See Material and Finish Table
5-7
= 7 Contacts
6-12
= 12 Contacts
MT
5-7
P
A
6
K
7
-18
Shell Size - Insert Arr.
7-22
= 22 Contacts
8-30
= 30 Contacts
9-42
= 42 Contacts
P
= Pin Contacts
A
= Normal
6
= #26 AWG
S
= Socket Contacts
Alternate Key Positions:
B, C, D, E, F
Contact Type
Key Position
Wire size
Wire Type
Wire Color
Wire Length (inches)
8
= #28 AWG (Color code 1 or 7 only)
0
= #30 AWG (Wire Type J, color code 1 or 7 only)
K
= M22759/11
1
= White
5
= Color code per MIL-STD-681 (striped)*
7
= 10 Solid colors, repeating
12, 18, 36, 72
Specify any length from 2 inches to 144 inches
J
= M22759-33
E
= NEMA HP3-EB
*Size 28 AWG and Size 30 AWG J type wire not available in striped color code 5
Material and Finish
Code
ME
ZNU
MT
ZR
Material
Aluminum
Aluminum
Aluminum
Aluminum
Finish
Electroless Nickel
Zinc-Nickel-PTFE with Black Chromate
Nickel-PTFE
Zinc-Nickel with Black Chromate
Table I: Series
Z1
Stainless Steel
Passivated
ZR plating is RoHS compliat and non-reflective.
ZNU plateing is non-reflective and passes 1,00 hours salt spray testing
811-003-07
Panel Mount Jam Nut Receptacle
Banding Platform
811-004-07
Low Profile Panel Mount Jam Nut
Receptacle, No Band Platform
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-10
E-Mail: sales@glenair.com

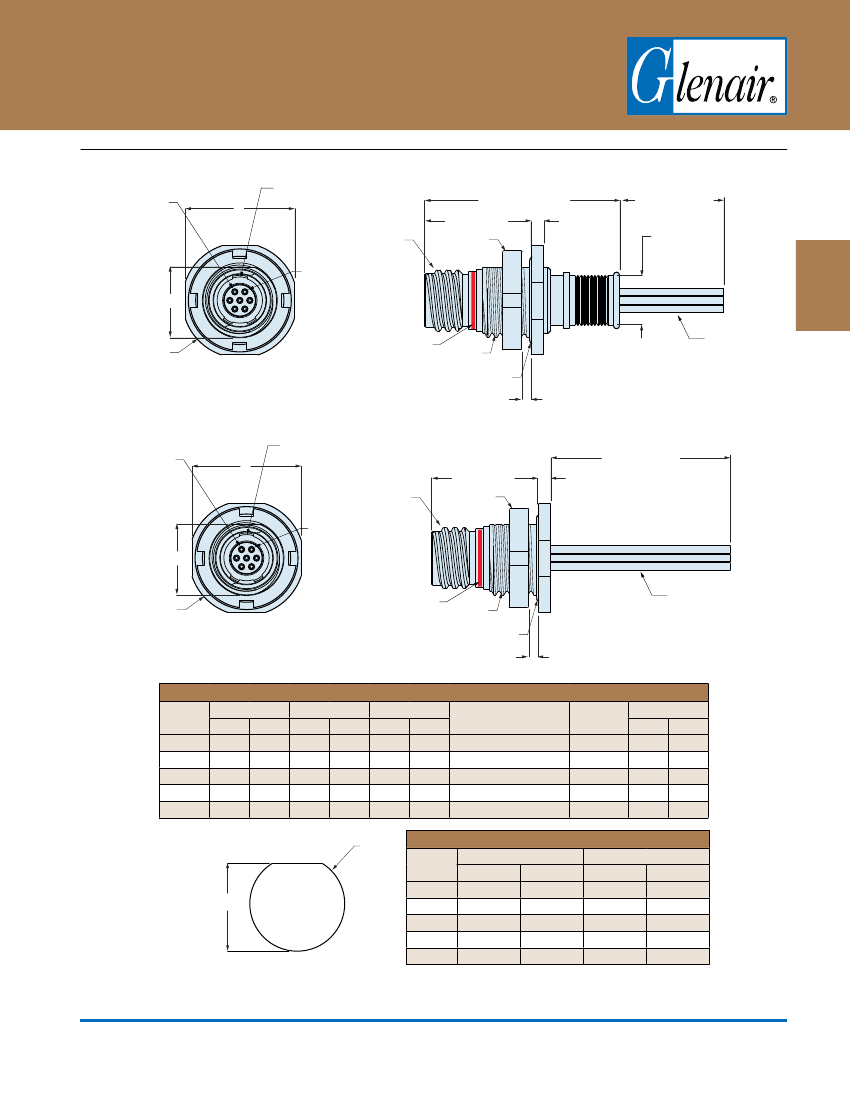

811-003-07 and 811-004-07
Square flange receptacle, low profile or with band platform
MASTER KEYWAY
CAVITY #1
PIN INSERT
C
D THD
CAVITY #1
SOCKET INSERT
B
HARNESS
SHIELD
WIRE
TERMINATION
BAND PLATFORM
.100 (2.54) MAX
PANEL THICKNESS
MASTER KEYWAY
CAVITY #1
PIN INSERT
C
D THD
CAVITY #1
SOCKET INSERT
B
HARNESS
WIRE
.537 (13.64)
JAM NUT
1.000 (25.40) MAX
.537 (13.64)
JAM NUT
.060 (1.52)
WIRE LENGTH
ØF
811-003-07
ØA
RED FULL MATE
INDICATOR STRIPE
E THD
O-RING
With Band Platform
WIRE LENGTH
.060 (1.52)
ØA
RED FULL MATE
INDICATOR STRIPE
E THD
O-RING
.100 (2.54) MAX
PANEL THICKNESS
811-004-07
Low Profile
Dimensions
Shell
Size
5
6
7
8
9
ØA
In.
.575
.635
.755
.755
.830
mm.
14.61
16.13
19.18
19.18
21.08
In.
.350
.410
.536
.536
.596
B
mm.
8.89
10.41
13.61
13.61
15.14
In.
.545
.595
.723
.723
.790
C
mm.
13.84
15.11
18.36
18.36
20.07
D Thread
.3125-.05P-.1L-2A
.3750-.05P-.1L-2A
.4375-.05P-.1L-2A
.5000-.05P-.1L-2A
.5625-.05P-.1L-2A
E THD
UN-2A
.375-28
.4375-28
.5625-32
.5625-32
.625-28
ØF
In.
.246
.286
.391
.443
.498
mm.
6.25
7.26
9.93
11.25
12.65
ØB
Panel Cutout
Shell
Size
5
6
7
8
9
A
In.±.002
.356
.416
.542
.542
.602
mm.±0.05
9.04
10.57
13.77
13.77
15.29
In.±.002
.385
.447
.572
.572
.635
BØ
mm.±0.05
9.78
11.35
14.53
14.53
16.13
A
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-11
E-Mail: sales@glenair.com
Mighty Mouse
High Density
Series 811 Mighty Mouse High Density (HD)
Pre-Wired Jam Nut Receptacle Connectors
L
Industrial Control Electronics
