FS2022B-1 Overview

10 BASE-T ETHERNET SMD FILTER

Bothhand USA.
e-mail: sales@bothhandusa.com http://www.bothhandusa.com

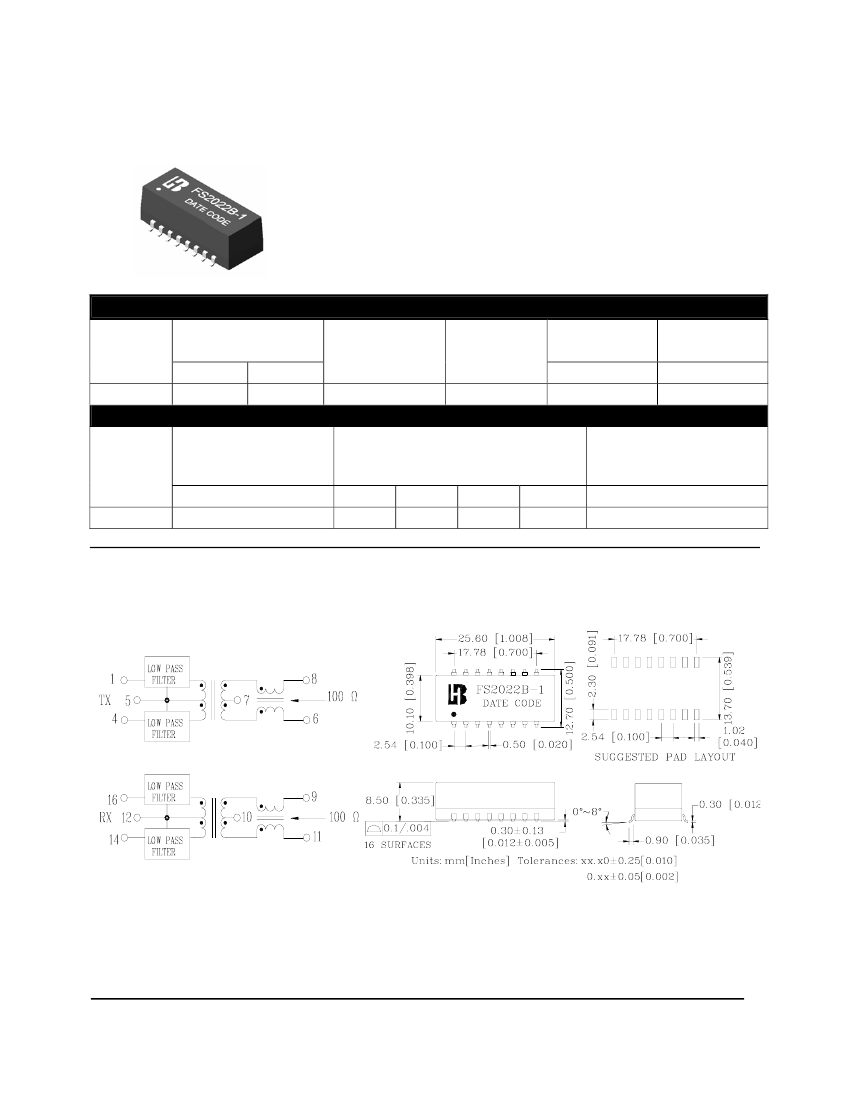

10 BASE-T ETHERNET SMD FILTER
Page : 1/1
P/N:FS2022B-1:APPLY TO GENERIC IC
Feature
Designed for 10 BASE-T application.
Fully compatible with IEEE 802.3 standard.
16-PIN SMD low profile package .
Operating temperature range: 0°C to +70°C.
Storage temperature range: -25°C to +125°C.
Electrical Specifications @ 25°C
Part
Number
FS2022B-1
TX
1CT:1CT
Turns Ratio
(±5%)
RX
1CT:1CT
CUT-OFF
Frequency
TX/RX
17 MHz ± 1.5MHz
Voltage Isolation
(Vrms)
1500
Insertion Loss
TX/RX(dB Max)
1–10MHz
-1.0
Return Loss
TX/RX(dB Min)
1-10MHz
-14
Continue
Part
Number
FS2022B-1
Cross talk Attenuation
(dB Min)
1-10 MHz
-30
20MHz
-7/-6
Attenuation
TX/RX(dB Min)
25MHz
-19/-14
30MHz
-30/-20
40MHz
-32/-31
Common Mode Rejection
TX/RX(dB Min)
30-100MHz
-30
Schematic
Mechanica
l
462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434
A7(02/06)
