Special
Purpose

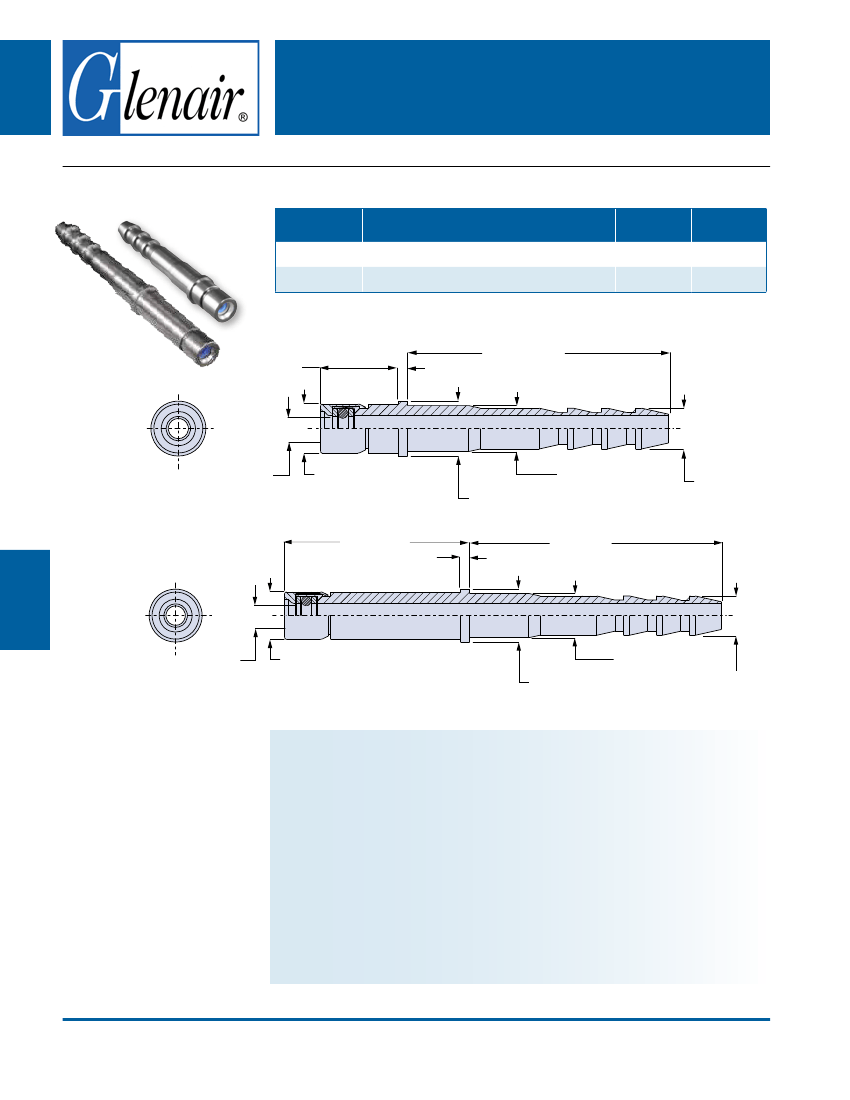

830-004 and 830-005
Size #12 Pneumatic Socket Contacts
Size #12 Pneumatic Contacts
830-004
Contact Type
Socket
Socket
For Use With
D38999 Series II, Series 79 and Series 80
D38999 Series I, III, IV
Tube I.D.
.094 (2.38)
.094 (2.38)
Part
Number
830-004
830-005
830-004 supercedes 857-010
830-005
.288/.280
(7.32/7.11)
.975 (24.8)
.033/.029 (0.83/0.74)
830-004
Ø.086/.084
(2.18/2.13)
Ø.160 (4.06) MAX
Ø.182/.179
(4.62/4.54)
.621 (15.77)
Ø.151/.148
(3.84/3.76)
Ø.135/.132
(3.43/3.35)
.975 (24.8)
.033/.029 (0.83/0.74)
D
830-005
Ø.086/.084
(2.18/2.13)
Ø.160 (4.06) MAX
Ø.182/.179
(4.62/4.54)
Ø.151/.148
(3.84/3.76)
Ø.135/.132
(3.43/3.35)
Stainless steel pneumatic contacts attach to 3/32 inch (2.38) diameter tubing. Socket contact has
o-ring and PTFE backup washers. Contacts snap into size #12 connector cavities. These pneumatic
contacts are rated for 100 PSI maximum air pressure. No installation tool is required. Remove
contacts with plastic extraction tool 809-132.
Material and Finish
Body and Cap: stainless steel, passivated
O-ring: fluorosilicone
Washers: PTFE
Specifications
Notes
© 2011 Glenair, Inc.
Contact may be used for air pressures up to 100±10% PSIG
Fits #12 socket contact cavities (see description for details)
High pressure pneumatic contacts available. Consult factory for more information.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-6
