850-018-22 Overview

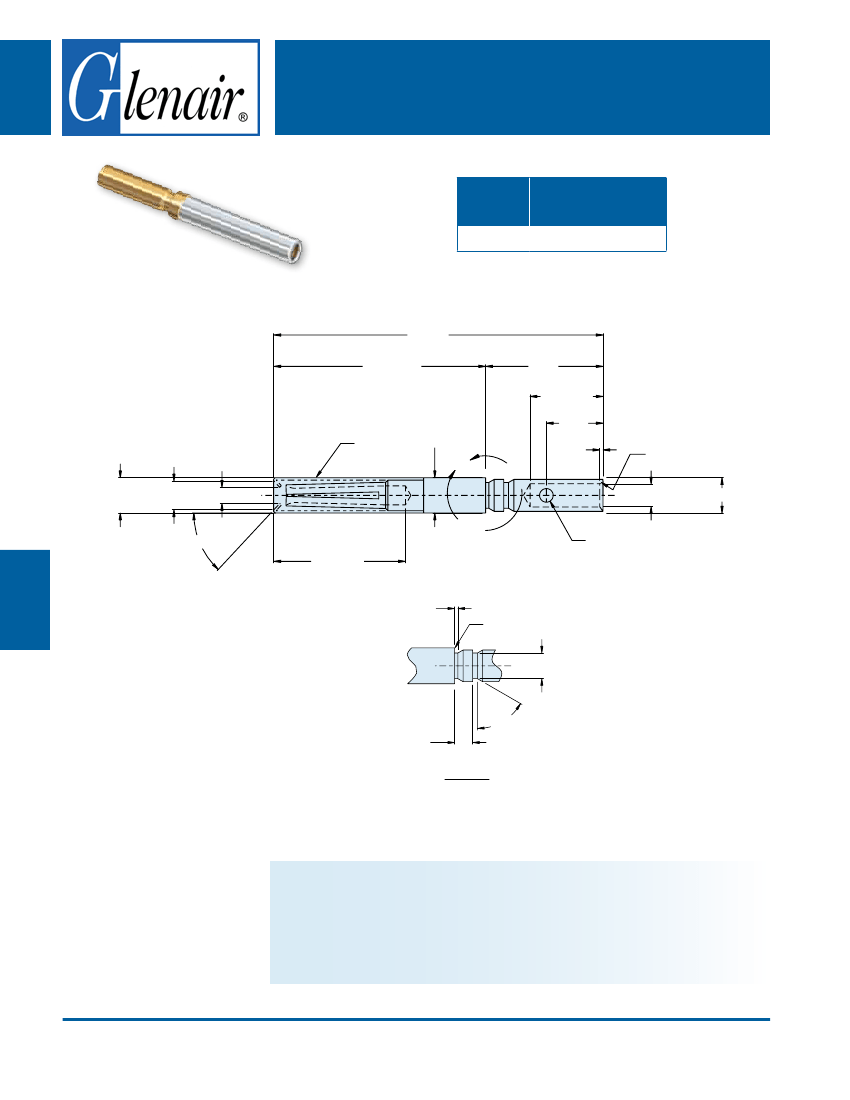

Size 22 Socket Contact with Expanded Wire Accommodation

Size 22 Socket Contact with Expanded Wire Accommodation
850-018-22
M39029/56-348 Type
Special
Purpose
Ø .031 Min
Ø .062
Max
Ø .047 Min
50°/44°
Mating End
Size
22
Glenair Part Number
850-018-22
(.855)
.626/.616
.237
.231
.141 Min
Ø .062
.060
A
.129
.122
.002
65° ± 10°
Ø .0395
.0375
Ø .022/.018 Thru
one side only
Hood
Ø .048/.046
.166 Min
D
2X .010
.004
R .003
Max
2X Ø.041
.036
.040
.030
DETAIL A
60°
Typ
Material and Finish
Contact Body: Copper alloy, plated with 50 microinches gold per ASTM B488 Type II code C
over 50–100 microinches nickel IAW SAE AMS-QQ-N-290, class II
Hood: 305 CRES, passivated
Notes
© 2011 Glenair, Inc.
May be used with up to 20AWG wire
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
D-18
