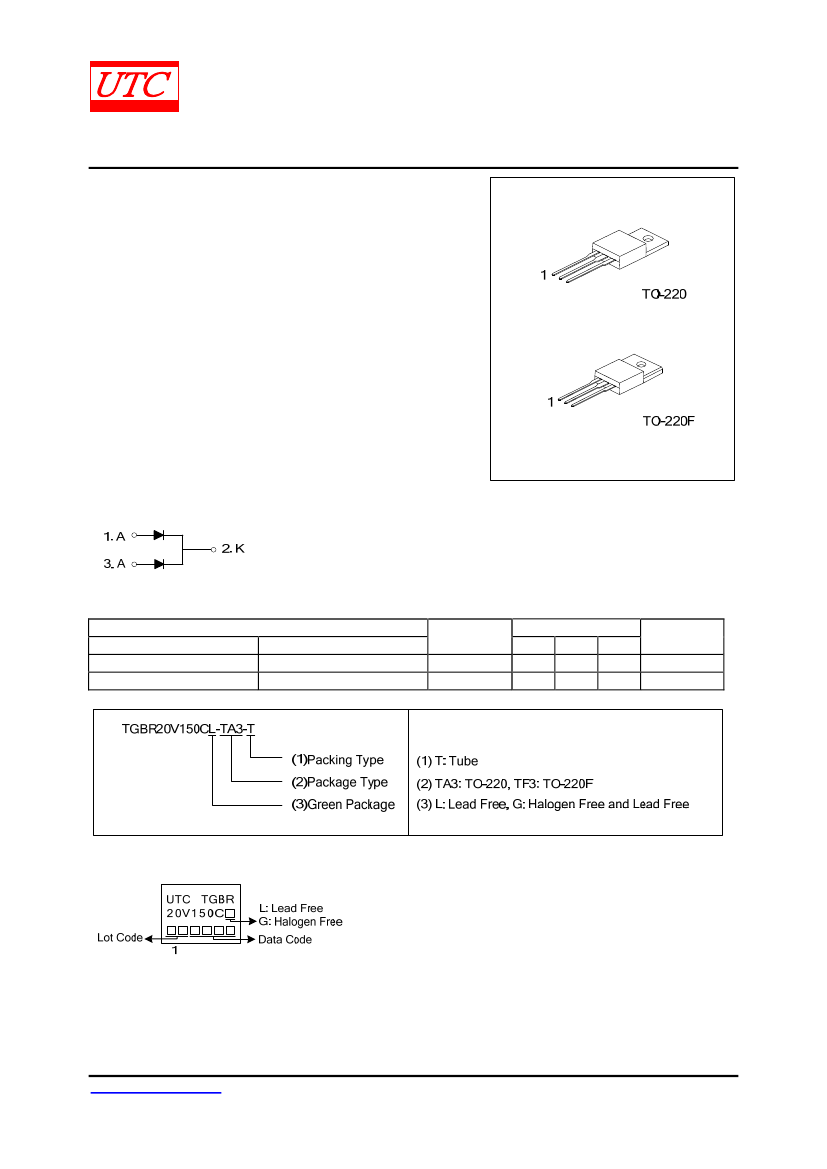

UNISONIC TECHNOLOGIES CO., LTD
TGBR20V150C
DUAL TRENCH MOS
SCHOTTKY BARRIER
RECTIFIER
DESCRIPTION
Advance
DIODE
The UTC
TGBR20V150C
is a dual trench mos schottky barrier
rectifier, it uses UTC’s advanced technology to provide customers
with low forward voltage drop and high switching speed, etc.
FEATURES
* Very low forward voltage drop
* High switching speed
SYMBOL
ORDERING INFORMATION
Package
TO-220
TO-220F
Pin Assignment
1
2
3
A
K
A
A
K
A
Packing
Tube
Tube
Ordering Number
Lead Free
Halogen Free
TGBR20V150CL-TA3-T
TGBR20V150CG-TA3-T
TGBR20V150CL-TF3-T
TGBR20V150CG-TF3-T
Note: Pin Assignment: A: Anode
K: Cathode
MARKING
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 3
QW-R232-007.a
TGBR20V150C
Advance
DIODE
ABSOLUTE MAXIMUM RATINGS (PER LEG)
(T
A
=25°C unless otherwise specified)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
PARAMETER
SYMBOL
RATINGS
UNIT
DC Blocking Voltage
V
RM
150
V
Working Peak Reverse Voltage
V
RWM
150
V
Peak Repetitive Reverse Voltage
V
RRM
150
V
Per Leg
10
A
Average Rectified Output Current Per Device
I
O
Total
20
A
Non-Repetitive Peak Forward Surge Current 8.3ms Single
I
FSM
200
A
Half Sine-Wave Superimposed on Rated Load
Operating Junction Temperature
T
J
-65~+150
°C
Storage Temperature
T
STG
-65~+150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL CHARACTERISTICS (PER LEG)
PARAMETER
SYMBOL
θ
JA
TO-220
TO-220F
θ
JC
RATINGS
62.5
2
3.31
UNIT
°C/W
°C/W
Junction to Ambient
Junction to Case
ELECTRICAL CHARACTERISTICS (PER LEG)
(T
A
=25°C
unless otherwise specified.)
MIN
150
TYP MAX UNIT
V
0.85
V
0.75
V
100
μA
20
mA
PARAMETER
Reverse Breakdown Voltage (Note 1)
SYMBOL
TEST CONDITIONS
V
(BR)R
I
R
=0.50mA
I
F
=10A, T
J
=25°C
Forward Voltage Drop
V
FM
I
F
=10A, T
J
=125°C
V
R
=150V, T
J
=25°C
Leakage Current (Note 1)
I
RM
V
R
=150V, T
J
=125°C
Notes: 1. Short duration pulse test used to minimize self-heating effect.
2. Thermal resistance junction to case mounted on heatsink.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 3
QW-R232-007.a
TGBR20V150C
Advance
DIODE
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
