808-086 USB Cordset Hub
The Mighty Mouse USB Cordset Hub regulates 5V USB power from a 16V source
while providing power management. Features a dedicated battery port, 3
downstream USB receptacle ports, 1 downstream USB plug port and 1 host/
upstream receptacle.

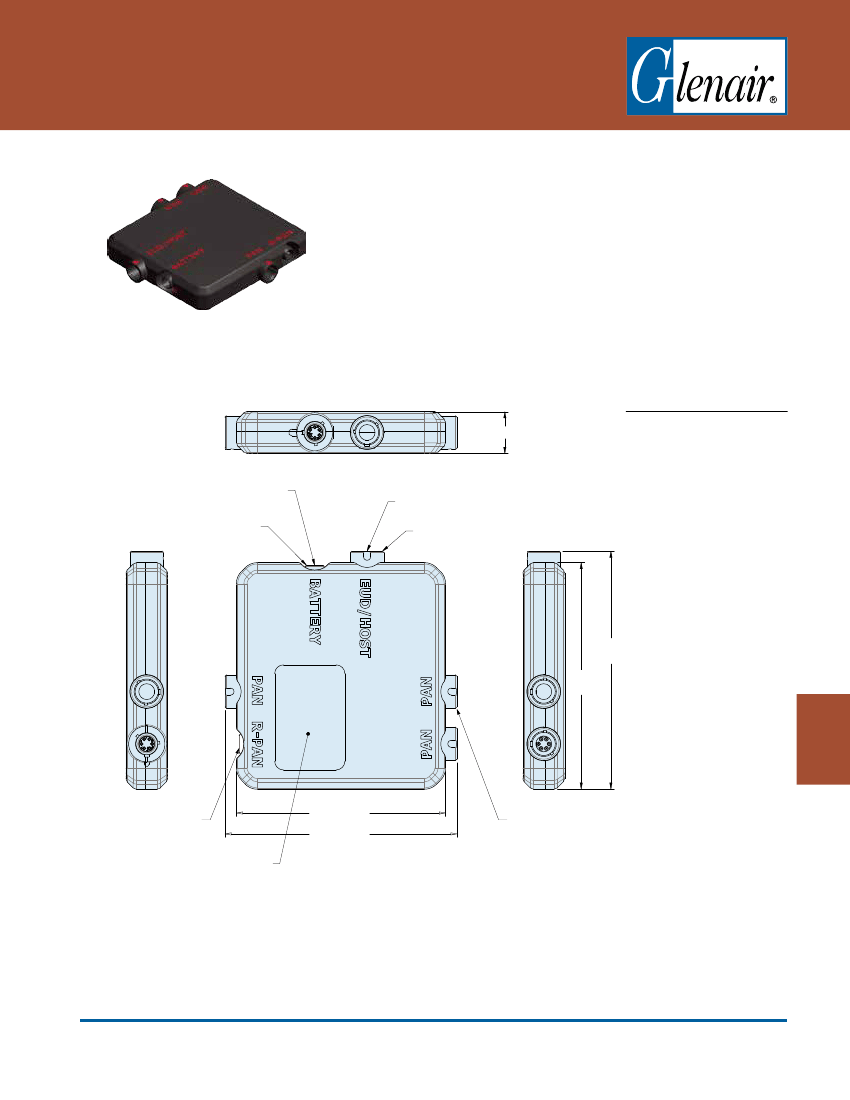

.600 (15.24)
•
NOTES:
DEDICATED PORT
FOR BATTERY POWER
GLENAIR INTERFACE PER,
8070-1153-06ZNU6-6PY TYP. 2
HOST/UPSTREAM PORT
FOR USB HUB
GLENAIR INTERFACE PER,
807-216-01ZNU6-6SY TYP.4
•
•
Marking: IUID per MIL-
STD-130. Red epoxy
infill for master key and
embossed text
100% system tested for
functionality.
Unit pack: 1 each in electro-
static bag, heat-sealed.
Includes dust cap.
3.41
(86.61)
3.250
(82.55)
DOWNSTREAM
PLUG USB PORT
CUSTOM LABEL
3.000 (76.2)
3.33 (84.58)
DOWNSTREAM
RECEPTACLE
USB PORT
TYP.3
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
G-33
E-Mail: sales@glenair.com
Series 804
Series 804 Push/Pull Mighty Mouse
USB Cordset Hub
