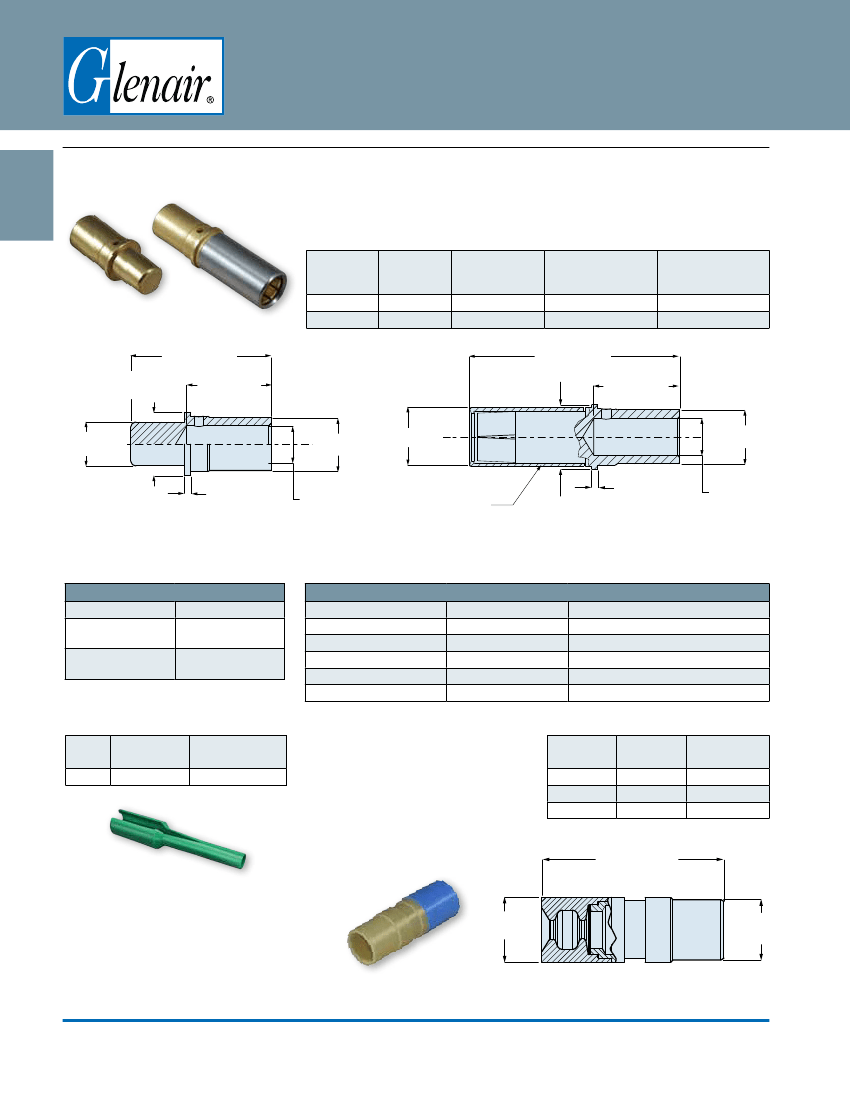

Mighty Mouse Connectors with Size #8 Quadrax,
Twinax, Coax or Power Contacts
Size #8 Power Contacts 850-013, 850-014
Size #8 power contacts
Mighty Mouse
with #8 Contacts
K
Fig. 1
Pin
Fig. 2
Socket
Power contacts accept #8 AWG wire. These contacts fit Mighty Mouse connectors
with size 8 cavities. Supplied with sealing boot. 46 amp current rating. Gold-plated
copper alloy. Socket contact has stainless steel hood. Conforms to SAE AS39029
requirements. Terminate with pneumatic crimp tool shown on next page.
Figure
Fig. 1
Fig. 2
Contact Type
Pin
Socket
Conductor Size
#8
#8
Part Number
Contact Only
850-014
850-013
Part Number
Contact and Sealing
Boot
850-014F
850-013F
.708 (17.98)
REF
Ø.316 (8.03)
.410 (10.41)
.313 (7.95)
MIN
1.026 (26.06)
REF
.410 (10.41)
MIN
.285 (7.24)
.265 (6.73)
.262 (6.65)
.033 (0.84)
.029 (0.74)
.219 (5.56)
.217 (5.51)
.265 (6.73)
.262 (6.65)
.033 (0.84)
.029 (0.74)
Ø.179 (4.55)
MIN
SST HOOD
Ø.316 (8.03)
.313 (7.95)
Ø.179
(4.55) MIN
Fig. 1
Pin Contact 850-014
Materials, Finishes
Contact material
Contact finish
Socket Contact Hood
Copper Alloy
50 microinches gold
over nickel plating
Stainless steel,
passivated
DESCRIPTION
Test Current
Contact Resistance
Minimum Separation Force
Crimp Tensile Strength
Durability
Fig. 2
Socket Contact 850-013
Specifications
REQUIREMENT
46 Amperes
26 millivolts maximum
5 ounce minimum
220 lbs. (978 newtons)
500 mating cycles
PROCEDURE
SAE AS39029 para. 4.7.5, EIA-364-06
SAE AS39029 para. 4.7.5, EIA-364-06
SAE AS39029 para. 4.7.6, EIA-364-37
SAE AS39029 para. 4.7.9, EIA-364-08
SAE AS39029 para. 4.7.10
Size
#8
Part Number
859-049
Military Part
Number
M81969/14-12
Sealing Boot
Sealing boot provides wire seal. Slide
boot onto wire before terminating
contact. After contact is installed in
connector, slide boot forward into
connector grommet to seal the contact
cavity. "F" suffix added on contact part
number specifies contact supplied with
sealing boot P/N 859-042-03.
Wire Dia. (in.)
.090 - .130
.130 - .170
.170 - .205
Wire Dia.
(mm.)
2.3 - 3.3
3.3 - 4.3
4.3 - 5.2
Part Number
859-042-01
859-042-02
859-042-03
.985 (25.02)
MAX
.326
(8.28)
.350
(8.89)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-22
E-Mail: sales@glenair.com
Size #8 Power Contacts 850-013, 850-014

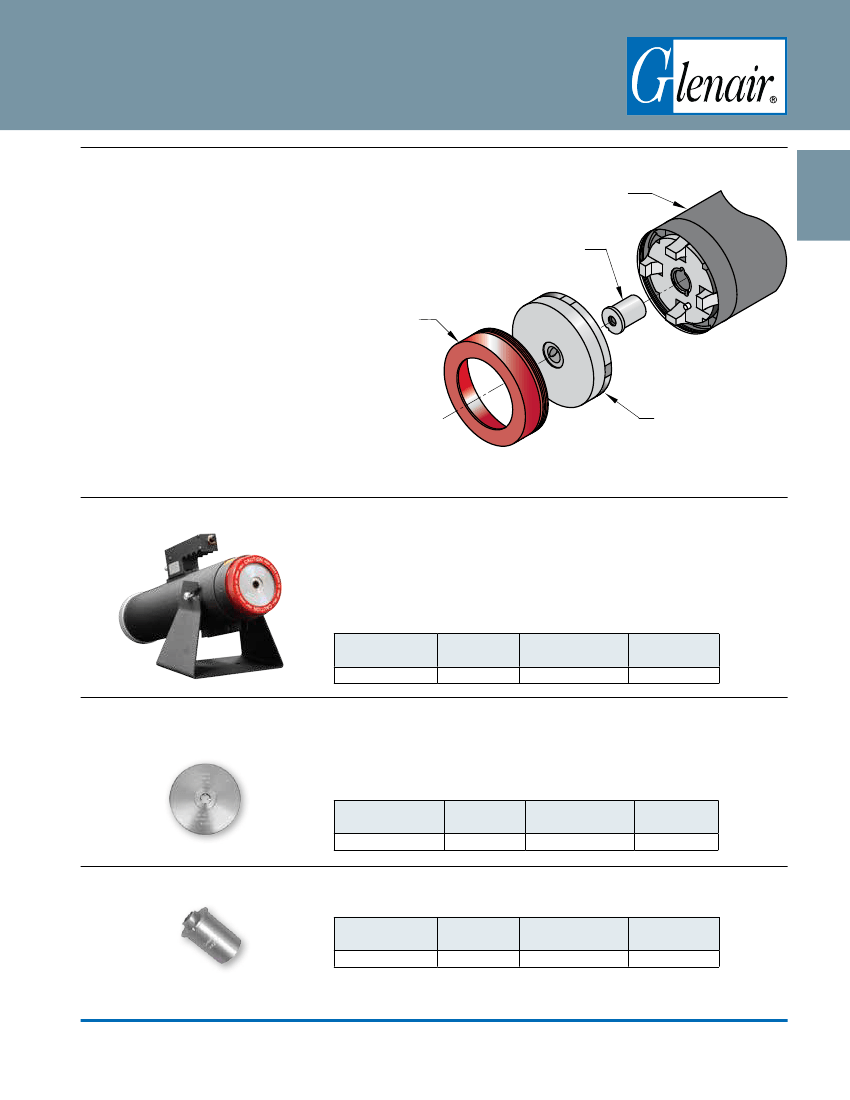

Pneumatic crimp tool for #8 power contacts
The Daniels WA23 pneumatic crimp
tool sets the standard for heavy duty
crimping chores. This four-indent tool
accommodates large power contacts
ranging from size 8 through size 0000.
Die plates and locators are purchased
separately. Qualified to M22520/23,
the WA23 tool is specified for use with
SAE AS39029 closed barrel copper alloy
contacts.
PNEUMATIC TOOL
859-025
LOCATOR
859-046 (SIZE 8)
COVER
(SUPPLIED WITH
PNEUMATIC TOOL
859-025)
INDENTER DIE ASSEMBLY
859-026 (SIZE 8)
Pneumatic crimp tool
Bench mount heavy duty pneumatic indent crimp tool. Four-indent crimp
termination. Use with closed barrel contact sizes 8 through 4/0. Attach to air
supply with quick-disconnect fitting or install 1/4 NPT fitting into tapped port.
90-120 psi air supply. Requires die assembly and locator, sold separately. Hand
actuate with push-button valve trigger on handle. Steel with black wrinkle
enamel coating. 13 inches overall length, 9.2 inches tall, 17 pounds (7.7 Kg).
Description
Pneumatic Crimper
Part Number
859-025
Military Part Number
M22520/23-01
Daniels Part
Number
WA23
Die assembly for size #8 contacts
Indenter Die Assembly. Precision four-indent die with hardened tool steel
indenters, stainless steel housing, aluminum cap. Use with size #8 contacts.
Go/ No Go calibration dimensions are stamped on face of tool. Approximately
3.3 inches (84mm.) diameter.
Description
Die Assembly, Size #8
Part Number
859-026
Military Part Number
M22520/23-02
Daniels Part
Number
WA23-2
Locator for size #8 contacts
Aluminum locator holds contact at correct depth for crimping.
Description
Locator, #8, Special
Part Number
859-046
Military Part Number
(none)
Daniels Part
Number
WA23-395L
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
K-23
E-Mail: sales@glenair.com
Mighty Mouse
with #8 Contacts
Mighty Mouse Connectors with Size #8 Quadrax,
Twinax, Coax or Power Contacts
