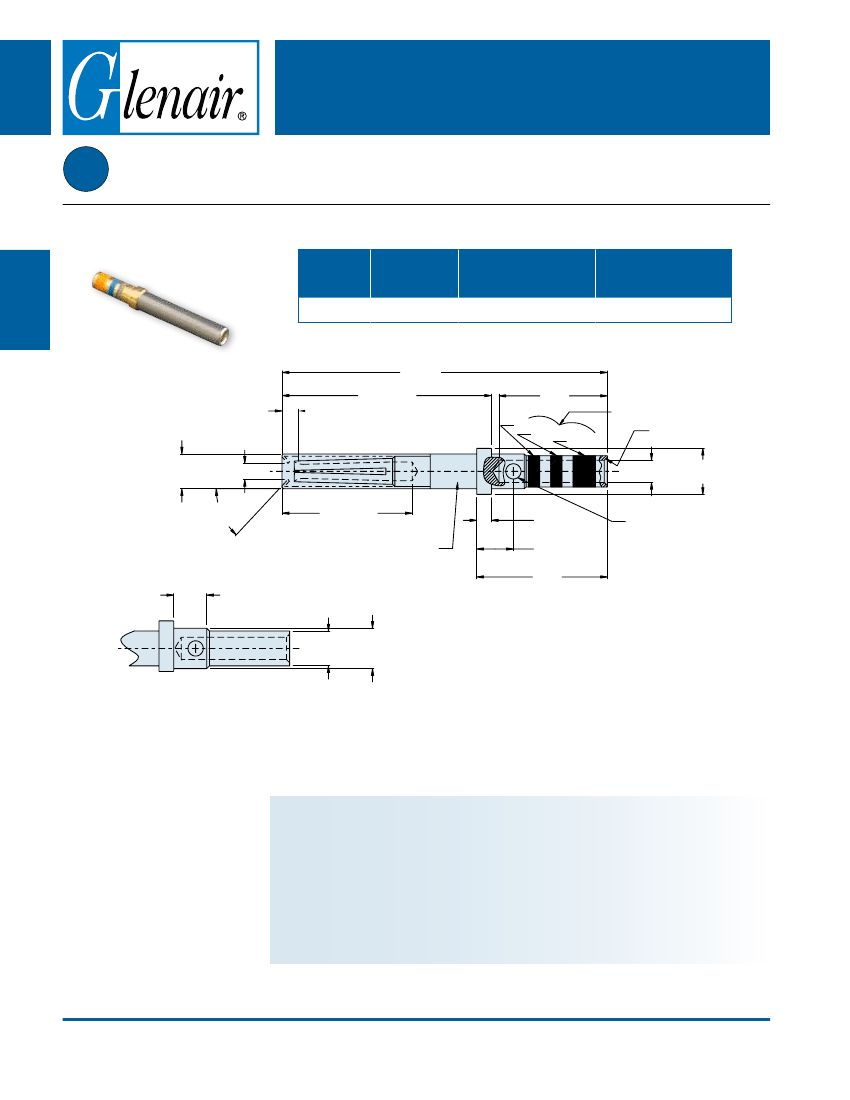

Standard Duty Electrical Socket Contact
M24308
M39029/63
850-021
A
AS39029
Mating End
Size
20
.073
Ø .069
Ø .0415 Min
47°
40°
.310 / .290
.049
.040
Ø .068
.065
Standard Socket Crimp Contact for MIL-DTL-24308
Wire
Accomodation
20-24 AWG
Military Part Number
M39029/63-368
Glenair Part Number
850-021-20-368
.536
.379 / .373
.041
Max Spring
Engagement
.185
.150
Gray
Blue
Orange
Color Bands
45°
Ø .046
.043
.033
.029
.055
.049
.194
.189
Ø .085
.082
.033
Ø .025 Thru One Side Only
Manufacturer’s Symbol
Ø .071
.068
Material and Finish*
Pin Contact: Copper Alloy/Gold Plated
Socket Contact: Copper Alloy/Gold Plated
Socket Contact Hood: Passivated Stainless Steel
*See pages A-4 and A-5 for detailed material specifications
Tools
Crimp Tool: M22520/2-01
Positioner: M22520/2-08
Insertion/Extraction Tools: M81969/14-02 or M81969/1-02
© 2011 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-12
