Size 16 Coaxial Socket
D38999
Series II
M39029/78
852-010
Shielded
Contacts

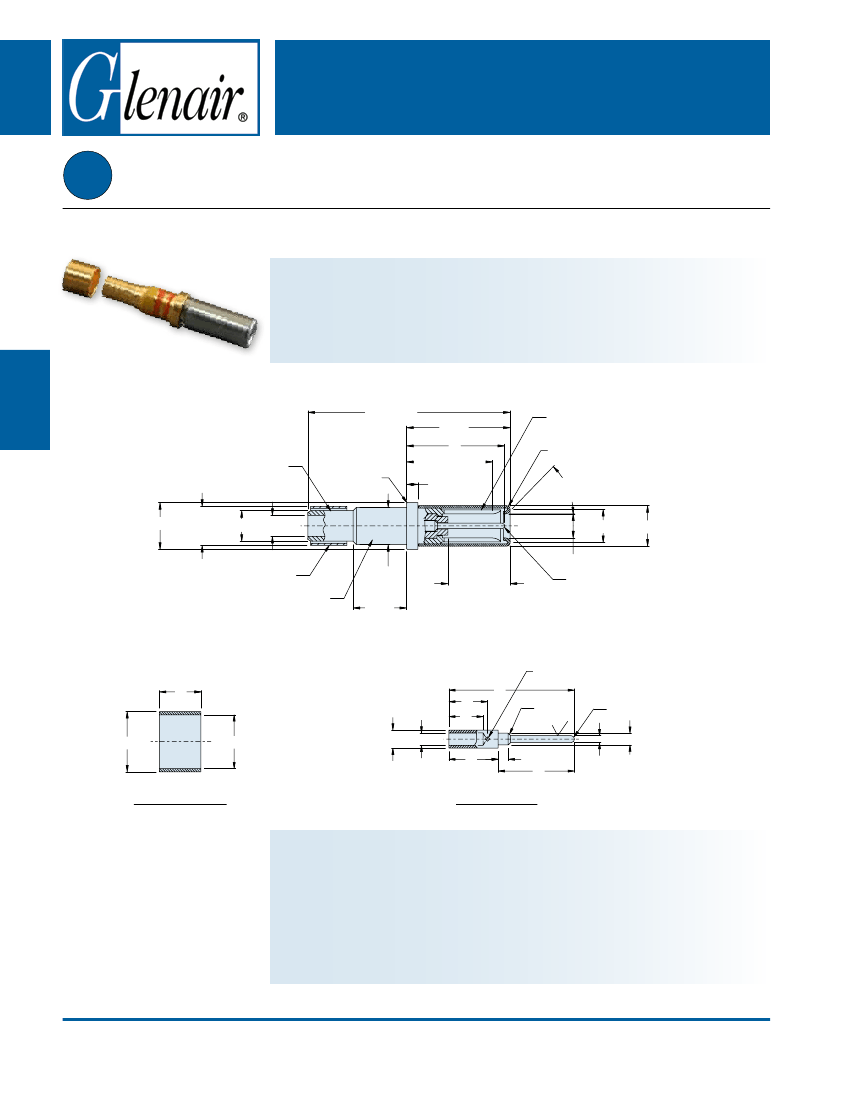

Size #16 Coaxial Socket Contacts for MIL-DTL-38999 Series II Connectors
These #16 socket contacts accept 50 ohm and 75 ohm coaxial cable. Inner contact is rated at
1 amp, the outer contact 12 amps. DWV rating is 800 Vac rms sea level, 250 Vac at 50,000 feet.
Contacts are packaged individually and are unassembled with instruction sheet. One contact
consists of outer contact , fluorocarbon dielectric, inner contact and shield crimp sleeve. Inner
and outer contacts are gold-plated copper alloy. Approved to SAE AS39029. VSWR rating 1.5:1
maximum up to 700 MHz. 5000 megohm insulation resistance. Mates with: M39029/76.
B
Outer Contact Barrel
.560 Min
.289
.279
X
.248 Min *
.033
.029
Outer Contact Mates
with .0635/.0615 Pin
R .002 Min
47°
43°
ØC
ØA Max
R .003 Max
ØF
ØG
After
Crimp
ØZ
ØD
Shield Crimp Sleeve
BIN Color Bands
(See Table)
ØE
.063
Min
.166 Min
Depth
ØB
Inner Pin Contact
K
N
P
ØH
ØM
ØL
R
U
R .020 Thru One Wall Only
.013 Radial Location Optional
47°/43°
32
Spherical Radius
ØJ
S
T
ØV
ØW
Shield Crimp Sleeve
Inner Pin Contact
Material and Finish
Contact Body: Copper Alloy/Gold Plated
Hood: Stainless Steel/Passivated
Center Contact: Copper Alloy/Gold Plated
Crimp Sleeve: Copper Alloy/Gold Plated
Insulator: Teflon
* Indicates point at which a square ended pin of the same basic diameter as the mating
contact first engages the outer contact spring
© 2012 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-20
Size 16 Coaxial Socket
Type
Cable Accommodation
M17/119-RG174, M17/113-RG316, M17/094-RG179,
Times AA3248, Teledyne 11299, Haveg 8100207,
Thermax 75-738-BCCWXE, Tensolite 3088/L707YX-1
Part Number
852-010-16-432
852-010-16-433
852-010-16-434
852-010-16-435
Military Part
Number
M39029/78-432
M39029/78-433
M39029/78-434
M39029/78-435
1st
Yellow
Yellow
Yellow
Yellow
Color Band
2nd
3rd
Orange
Orange
Orange
Orange
Red
Orange
Yellow
Green
Socket
M17/093-RG178
Haveg 61-02051, Revere WH95623
Haveg 30-00761, Haveg 30-02024, Haveg 30-02033,
Tensolite 24713/A955KK1, Tensolite 26723/A955K1
Table I
BIN
Code
432
433
434
435
ØA
Max
.113 (2.9)
ØB
ØC
.089 (2.3)
.084 (2.1)
.089 (2.3)
.084 (2.1)
ØD
Min
.670
(17.0)
0.575
(14.6)
.670
(17.0)
0.575
(14.6)
ØE
.103 (2.62)
.101 (2.57)
.103 (2.62)
.101 (2.57)
.103 (2.62)
.101 (2.57)
.103 (2.62)
.101 (2.57)
ØF
.130 (3.3)
.127 (3.2)
.130 (3.3)
.127 (3.2)
.130 (3.3)
.127 (3.2)
.130 (3.3)
.127 (3.2)
ØG
Max
.108
(2.7)
.108
(2.7)
.108
(2.7)
.108
(2.7)
ØH
Min
.105
(2.7)
.094
(2.4)
.105
(2.7)
.094
(2.4)
ØJ
Max
.120
(3.0)
.120
(3.0)
.120
(3.0)
.120
(3.0)
K
.105 (2.7)
.095 (2.4)
.105 (2.7)
.095 (2.4)
.105 (2.7)
.095 (2.4)
.105 (2.7)
.095 (2.4)
ØL
Min
.0210
(0.5)
.0210
(0.5)
.0355
(0.9)
.0270
(0.7)
.068 (1.73)
.065 (1.65)
.068 (1.73)
.113 (2.9)
.065 (1.65)
.113 (2.9)
.113 (2.9)
.068 (1.73) .089 (2.3)
.065 (1.65) .084 (2.1)
.068 (1.73) .089 (2.3)
.065 (1.65) .084 (2.1)
Table I (continued)
BIN
Code
432
433
434
435
ØM
Max
.046
(1.2)
.046
(1.2)
0.052
(1.3)
.046
(1.2)
N
Min
.103
(2.6)
.103
(2.6)
.103
(2.6)
.103
(2.6)
P
.094 (2.4)
.087 (2.2)
.094 (2.4)
.087 (2.2)
.094 (2.4)
.087 (2.2)
.094 (2.4)
.087 (2.2)
R
.125 (3.2)
.119 (3.0)
.125 (3.2)
.119 (3.0)
.125 (3.2)
.119 (3.0)
.125 (3.2)
.119 (3.0)
S
.079 (2.0)
.073 (1.9)
.079 (2.0)
.073 (1.9)
.079 (2.0)
.073 (1.9)
.079 (2.0)
.073 (1.9)
T
U Ref
ØV
.0155 (.39)
.0145 (.37)
.0155 (.39)
.0145 (.37)
.0155 (.39)
.0145 (.37)
.0155 (.39)
.0145 (.37)
ØW
.030 (0.8)
.028 (0.7)
.030 (0.8)
.028 (0.7)
.030 (0.8)
.028 (0.7)
.030 (0.8)
.028 (0.7)
X
.274 (7.0)
.264 (6.7)
.274 (7.0)
.264 (6.7)
.274 (7.0)
.264 (6.7)
.274 (7.0)
.264 (6.7)
ØZ
Max
.085
(2.2)
.076
(1.9)
.085
(2.2)
.076
(1.9)
.269 (6.83) .3895
.266 (6.76) (9.9)
.269 (6.83) .3895
.266 (6.76) (9.9)
.269 (6.83) .3895
.266 (6.76) (9.9)
.269 (6.83) .3895
.266 (6.76) (9.9)
Table III
Inner Contact
Basic Crimping
Tool
M22520/2-01
© 2012 Glenair, Inc.
Positioner
M22520/2-35
Outer Contact
Basic Crimping
Tool
M22520/4-01
Positioner
M22520/4-02
Insertion Tool
M81969/8-07 or
M81969/14-03
Extraction Tool
M81969/8-08 or
M81969/14-03
Printed in U.S.A.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
B-21
Shielded
Contacts
M39029/78
852-010
B
