MKDSN 1,5/ 7
Order No.: 1729063

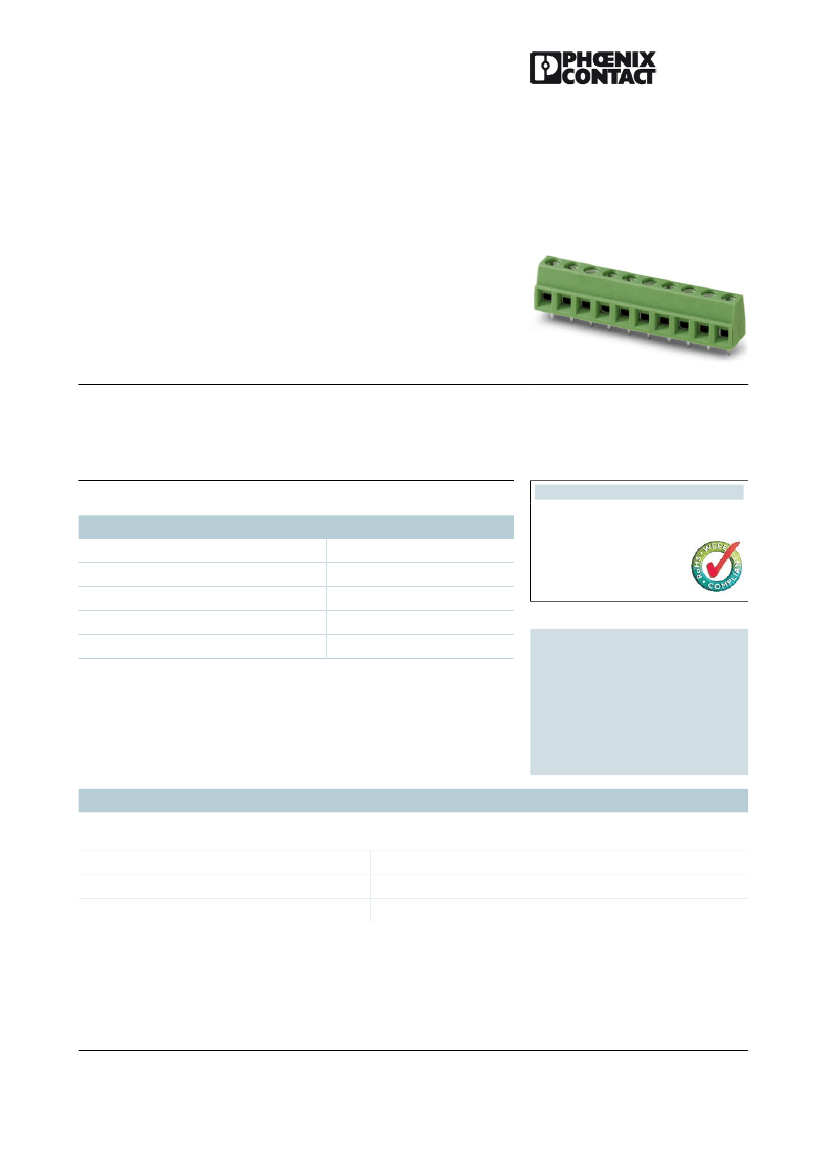

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1729063
PC terminal block, Nominal current: 13.5 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 7, Type of connection: Screw
connection, Assembly: Soldering, Conductor/PCB connection
direction: 0 °, Color: green
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918025939
50 pcs.
85369010
0.006639 KG
Page 59 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
Dimensions / positions
Length
Pitch
Dimension a
8.1 mm
5 mm
30 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Feb 24, 2010
MKDSN 1,5/ 7
Order No.: 1729063
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1729063
Number of positions
Pin dimensions
Pin spacing
Hole diameter
Screw thread
Tightening torque, min
Tightening torque max
Technical data
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class acc. to UL 94
Internal cylindrical gage
Stripping length
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
7
0,5 x 1 mm
5 mm
1.3 mm
M3
0.5 Nm
0.6 Nm
I
4 kV
4 kV
4 kV
400 V
630 V
EN-VDE
13.5 A
250 V
1.5 mm²
13.5 A
PA
V0
A1
6 mm
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Feb 24, 2010
MKDSN 1,5/ 7
Order No.: 1729063
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1729063
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
26
16
0.14 mm²
0.75 mm²
0.14 mm²
0.75 mm²
0.25 mm²
0.5 mm²
0.5 mm²
1 mm²
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CUL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CB, CCA, CSA, CUL, GL, GOST, SEV, UL
300 V
10 A
28-14
300 V
10 A
30-14
300 V
10 A
30-14
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Feb 24, 2010
MKDSN 1,5/ 7
Order No.: 1729063
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1729063
Accessories
Item
Marking
1051993
0804183
B-STIFT
SK 5/3,8:FORTL.ZAHLEN
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
Marker card, special printing, self-adhesive, labeled acc. to
customer requirements, 12 identical marker strips per card, max.
25-position labeling per strip, color: white
Marker cards, unprinted, with pitch divisions, self-adhesive, 10-
section marker strips, 12 strips per card, can be labeled with the
M-PEN
Designation
Description
0805072
SK 5/3,8:SO
0805409
SK 5/3,8:UNBEDRUCKT
Tools
1205053
SZS 0,6X3,5
Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval

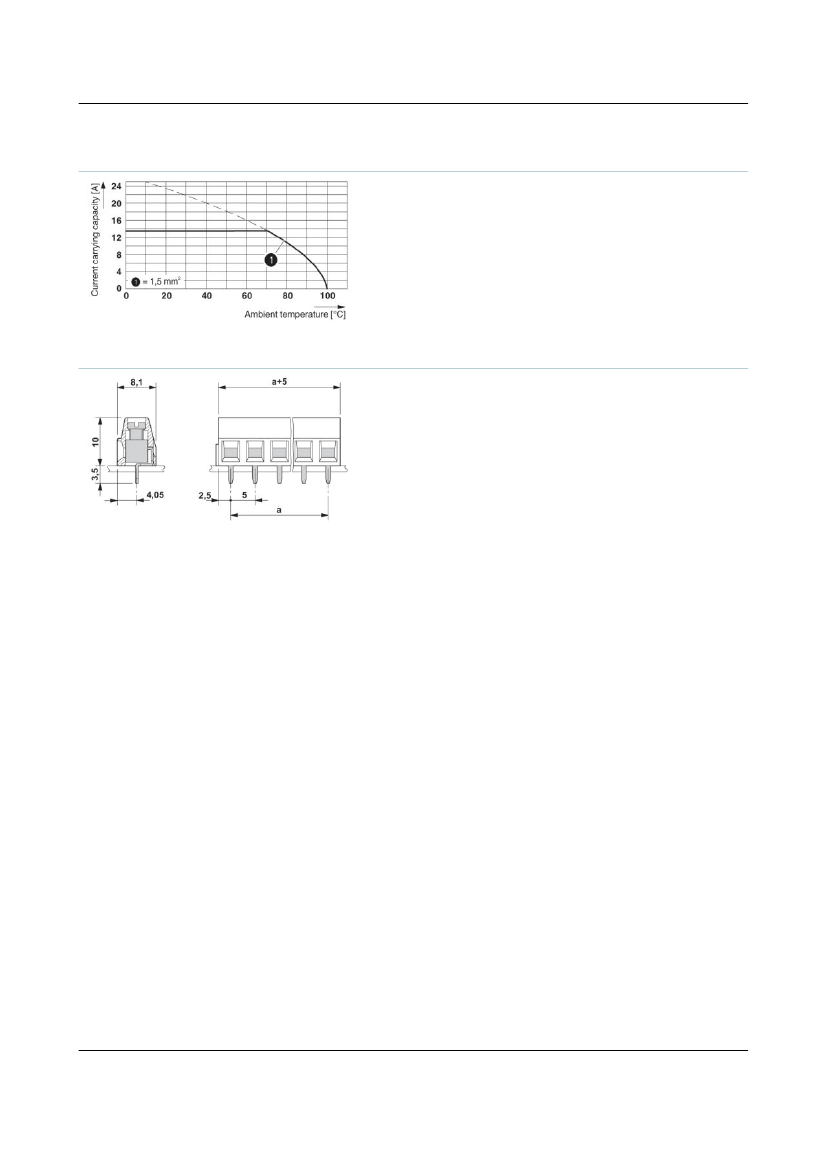

Diagrams/Drawings
Drilling plan/solder pad geometry
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Feb 24, 2010
MKDSN 1,5/ 7
Order No.: 1729063
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1729063
Diagram
Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 6
Feb 24, 2010
