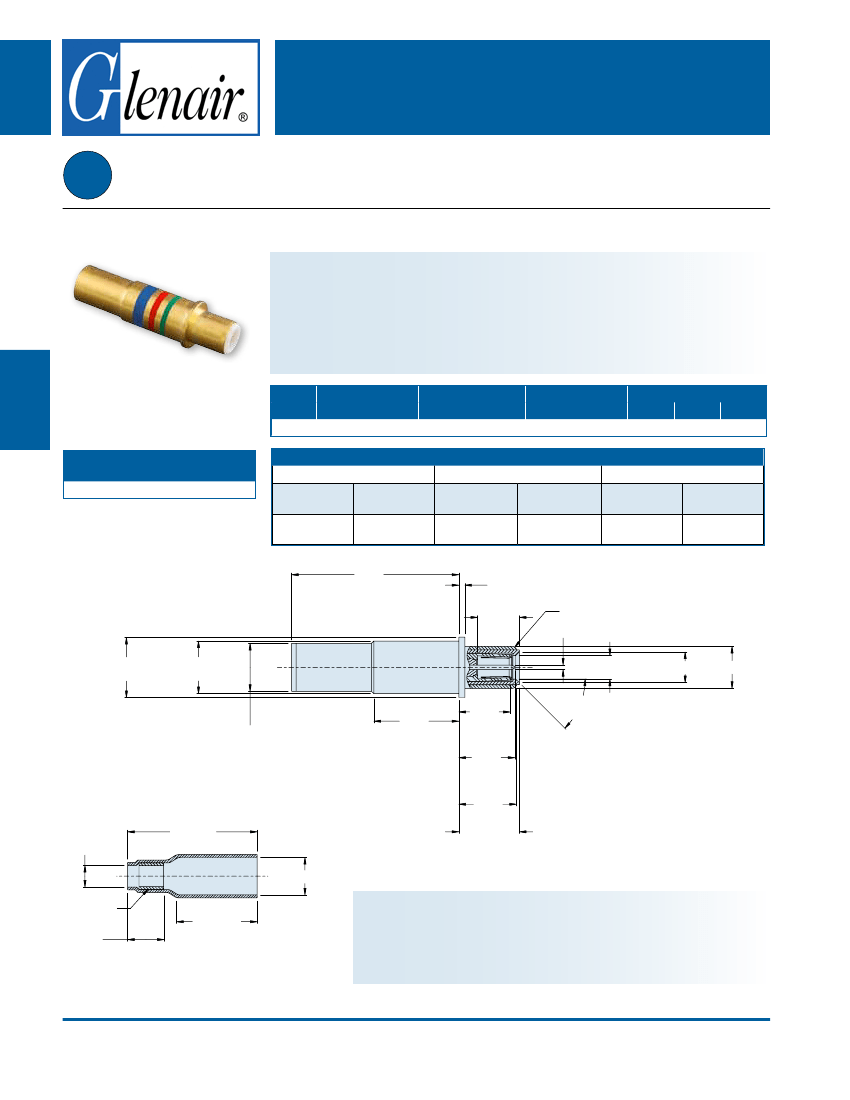

Size 8 Concentric Twinax Pin

D38999

M39029/113

853-003

Shielded

Contacts

Ser. I, III, IV

Size #8 Concentric Twinax Pin for MIL-DTL-38999 Series I, III and IV Connectors

These #8 concentric twinax pin contacts accept MIL-STD-1553 data bus twinax cable. Center

and intermediate contacts are rated at 1 amp, the outer contact 12 amps. DWV rating is 500 Vac

rms sea level, 125 Vac at 70,000 feet. Operating frequency is 0-20 MHz. Contacts are packaged

individually and shipped unassembled with instruction sheet. One contact consists of outer

contact , fluorocarbon dielectric, inner contact , intermediate contact and shield crimp bushing.

All contacts are gold-plated copper alloy. Approved to SAE AS39029. 5000 megohm insulation

resistance. Mates with: M39029/114.

Table II - Tool

(Insertion and Extraction)

M81969/14-12

Type

Cable

Accommodation Part Number

M17/176-00002

853-003-08-625

Military Part

Number

M39029/113-625

1st

Blue

Color Band

2nd

3rd

Red

Green

Table III Tools (Crimping)

Center Contact Tooling

Basic Crimping

Tool

M22520/2-01

Contact

Positioner

M22520/2-37

Intermediate Contact Tooling Outer Crimp Sleeve Tooling

Basic Crimping

Tool

M22520/5-01

Die Part No.

M22520/5-105

Cavity B

Basic Crimping

M22520/5-01

Die Part No.

M22520/5-105

Cavity A

.900

.840

After Termination

Including Ferrule

.033

.029

.196

Min

+.000

R .025 -.005

.0240 ± .0005

± .003

Ø .123

Ø .140 Min

± .001

.218

Ø .314 +.002

-.001

Ø .274 +.002

-.003

.265

Min

.302

.285

+.010

-.000

.295

.320 Max

Ø .257 Max

After Crimping

.540

.344

Center Pin

50˚

45˚

Outer Pin

.90±.03

Ø .15 Min

Ø .26 Min

Hot Melt

Adhesive

.25

Nom

.56 +.03

-.01

Heat Shrink Boot

(Not to Scale)

Material and Finish

Contact Body: Copper Alloy/Gold Plated

Inner and Intermediate Contacts: Copper Alloy/Gold Plated

Crimp Sleeve: Copper Alloy/Gold Plated

Insulator: Teflon

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-24
