804-071

Description
Mighty Mouse Back-to-Back High-Speed Push-Pull Connectors
File Size239KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

804-071 Overview

Mighty Mouse Back-to-Back High-Speed Push-Pull Connectors

Mighty Mouse Back-to-Back
High-Speed
Push-Pull Connectors
804-071 Ordering Information
804-071: Series 804 Mighty Mouse
High-Speed
10GBASE-T Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
P1
"PART NUMBER"
GLENAIR YYWW 06324
P2
PROTECTIVE COVER,
809-198 OR 667-202
GLENAIR HIGH-SPEED CONNECTOR,
804-026-06 PLUG OR
804-028-01 RECEPTACLE
7-10 INSERT ARRANGEMENT
(GROMMETS REMOVED)
BRADY LABEL,
LAT-18 OR EQ.
APPROX LOCATION:
CENTER OF CABLE
GLENAIR BULK
CAT6A CABLE,
963-003
POLYAMIDE OVERMOLD
How To Order
Sample Part Number
Series
P1 Connector
804-071
804-071
= Back-to-Back Series 804 Mighty Mouse 10GBASE-T CAT6A
Ethernet Overmolded cordset
-A
= Plug with Pin Contacts
-B
= Plug with Socket Contacts
-C
= Receptacle with Pin Contacts
A
= Plug with Pin Contacts
C
= Receptacle with Pin Contacts
-A
D
NF
N
A
-48
P2 Connector
-D
= Receptacle with Socket Contacts
B
= Plug with Socket Contacts
D
= Receptacle with Socket Contacts
N
= No Connector (Single-Ended)
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
Shell Material / Finish
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
P
= Metal Protective Covers Included
N
= No Covers Supplied
A
(Normal),
B, C, D, E, F
Overall Length In Inches

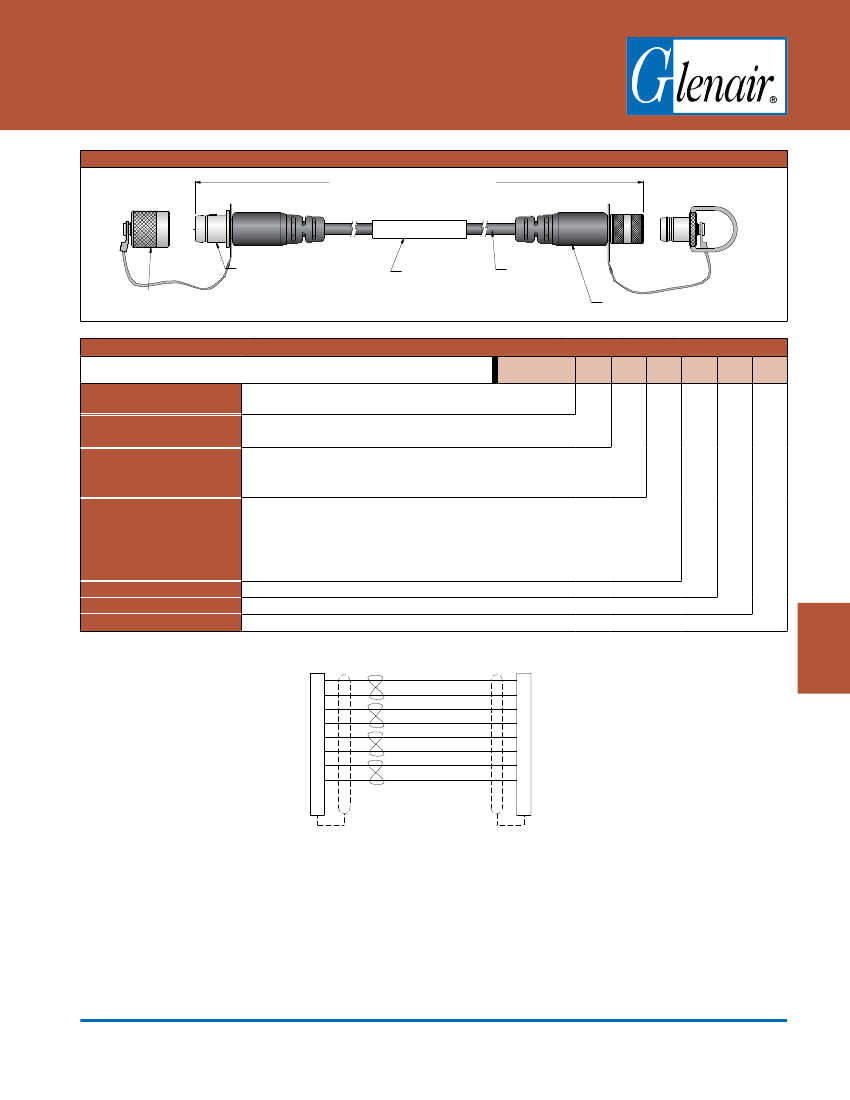

WIRING DIAGRAM
P1
8
4
7
3
1
5
10
6
2
9
WHT/ORN 24 AWG
ORN
GRN
BLU
WHT/BLU
WHT/BRN
BRN
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
24 AWG
WHT/GRN 24 AWG
P2
8
4
7
3
1
5
10
6
2
9
Protective Cover
Shell Key Pos. (See Page N3)
Length
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
Q-13
E-Mail: sales@glenair.com
Series 804
High-Speed
Series 804 10GBASE-T Cat6a Ethernet Cordsets
