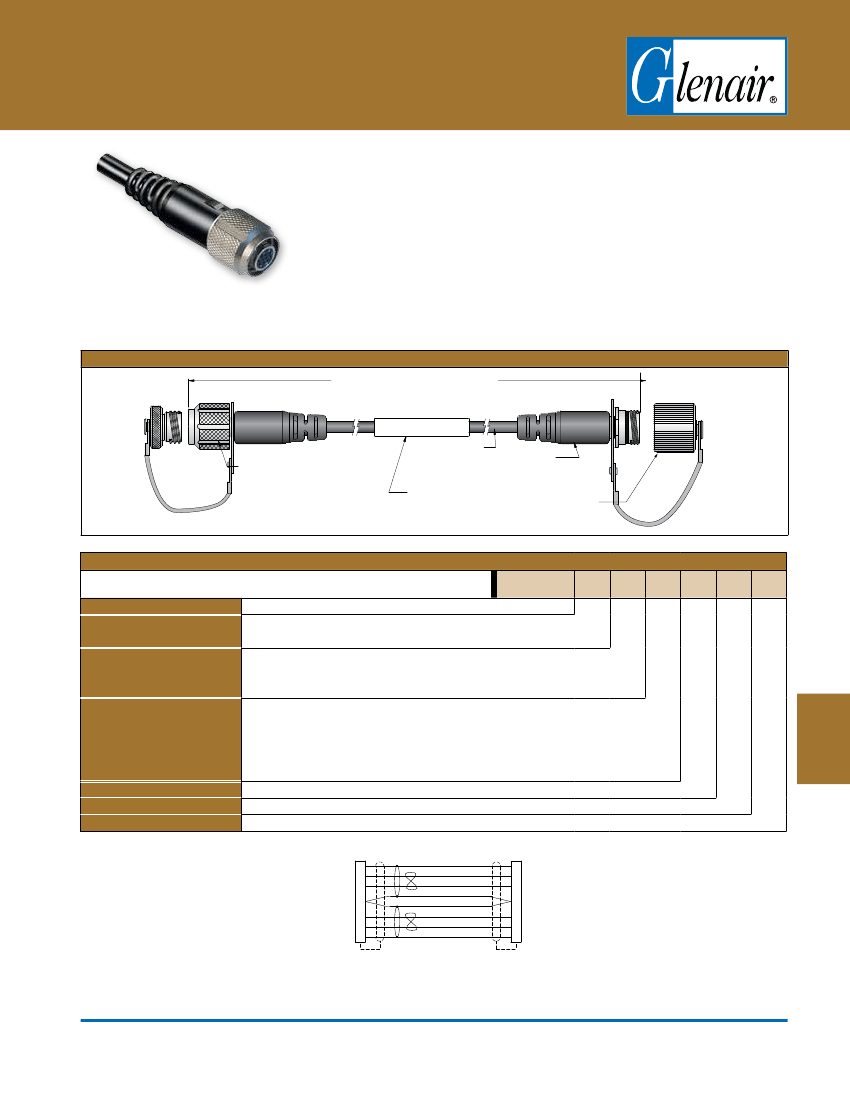

Mighty Mouse
High-Speed
Back–to–Back
eSATA Cordset with Triple-Start ACME Threads
805-112 Ordering Information
Series 805 High-Speed cordsets
For optimal data transmission performance and environmental sealing, choose
Glenair high-speed cordsets. Factory-terminated connectors have their rear
grommets removed to maintain the construction of the matched-impedance pair
cable through the connector for improved high-speed performance. Cordsets
are sealed with either rugged polyamide overmold or a factory-installed heat
shrink boot for strain relief and environmental sealing against moisture and
contamination. Choose “Back to Back” versions with Series 80 Mighty Mouse
High-Speed
connectors on both ends, or cordsets terminated to industry-standard
commercial connectors. Order with or without metal protective covers. All cordests
are 100% electrically tested for shorts, continuity, and IR 200 Megohms minimum.
100 Ohm differential parallel pair
cordsets optimized for eSATA,
Ethernet, and USB protocols
805-112: Series 805 Mighty Mouse
High-Speed
eSata Overmolded Cordset
"LENGTH" MIN (SEE P/N DEVELOPMENT)
P1
"PART NUMBER"
GLENAIR YYWW 06324
P2
GLENAIR HIGH-SPEED CONNECTOR,
805-020-16 PLUG OR
805-022-01 RECEPTACLE
8-7 INSERT ARRANGEMENT
(GROMMETS REMOVED)
GLENAIR BULK
eSATA CABLE,
POLYAMIDE
963-013
OVERMOLD
BRADY LABEL,
LAT-18 OR EQ.
APPROX LOCATION:
PROTECTIVE COVER,
CENTER OF CABLE
667-261 OR 667-262
How To Order
Sample Part Number
Series
P1 Connector
805-112
805-112
= Back-to-Back eSATA Overmolded cordset
-A
= Plug, Pin Contacts
-B
= Plug, Socket Contacts
-C
= Receptacle Pin Contacts
A
= Plug, Pin Contacts
C
= Receptacle, Pin Contacts
-A
D
NF
N
A
-48
P2 Connector
-D
= Receptacle, Socket Contacts
B
= Plug, Socket Contacts
D
= Receptacle, Socket Contacts
N
= No Connector (Single-Ended)
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
Shell Material / Finish
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE, RoHS Compliant
Z1
= Stainless Steel / Passivated RoHS Compliant
P
= Metal Protective Covers Included
A
(Normal),
B, C, D, E, F
Overall Length In Inches 78" Max
P1
6
1
2
7
5
4
3
Protective Cover
Shell Key Pos. (See Page N3)
Length
N
= No Covers Supplied
WIRING DIAGRAM
DRAIN
WHT 28 AWG
BLU 28 AWG
DRAIN
DRAIN
WHT 28 AWG
ORN 28 AWG
DRAIN
P2
6
1
2
7
5
4
3
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
R-11
E-Mail: sales@glenair.com
Series 805
High-Speed
Series 805 eSATA Cordsets
