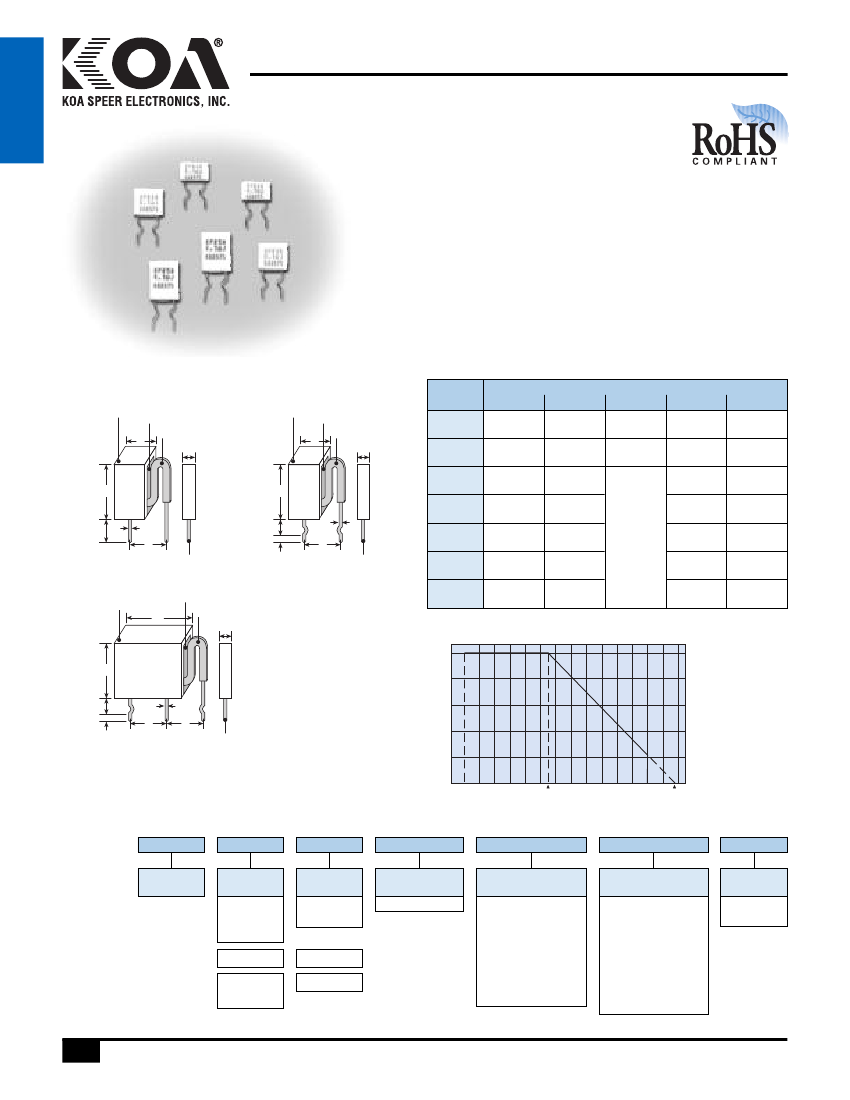

BPR
rectangular type metal plate resistors
8±1mm
5±1mm
% Rated Power
resistors
Ceramic
Case
Cement
B
EU
features
•
Power type current detecting resistors
•
Flame retardant resistors in ceramic case
•
Automatic insertion for a 5mm pitch between
terminals is applicable (26 type, 58 type)
•
Low inductance
•
Space saving
•
Marking: Alpha/numeric marking
•
Products with lead-free terminations
meet EU RoHS requirements
dimensions and construction
Single Straight Style
Ceramic
Case
Cement
B
Single Forming Style
Resistive Element
C
Resistive Element
C
BPR28
BPR26
BPR38
Size
Code
C
.335±.04
(8.5±1.0)
.335±.04
(8.5±1.0)
.512±.04
(13.0±1.0)
.709±.04
(18.0±1.0)
.669±.06
(17.0±1.5)
.669±.06
(17.0±1.5)
.787±.07
(20.0±1.8)
B
A
.512±.04
(13.0±1.0)
Dimensions
inches
(mm)
B
C
d
.157±.04
(4.0±1.0)
.157±.04
(4.0±1.0)
.024±.04
(0.6±1.0)
.354±.04
(9.0±1.0)
.354±.04
(9.0±1.0)
.354±.04
(9.0±1.0)
.354±.04
(9.0±1.0)
.787±.04
(20.0±1.0)
.394±.04
(10.0±1.0)
.394±.04
(10.0±1.0)
P
.512±.04
(13.0±1.0)
.551±.04
(14.0±1.0)
.551±.04
(14.0±1.0)
1.02±.06
(26.0±1.5)
1.02±.06
(26.0±1.5)
1.02±.06
(26.0±1.5)
.031±.04
(0.8±1.0)
.031±.04
(0.8±1.0)
.031±.04
(0.8±1.0)
A
13±1mm
d
P
A
8±1mm
5±1mm
Twin Style
Ceramic
Case
B
Lead Wire
Cement
P
d
Lead Wire
BPR108
BPR77
BPR55
BPR58
.197±.04
(5.0±1.0)
.031±.04
(0.8±1.0)
.031±.04
(0.8±1.0)
.031±.04
(0.8±1.0)
Resistive Element
C
Derating Curve
100
80
A
P
d
P
60
40
20
0
Lead Wire
For resistors
operated at an ambient
temperature of 70°C or
above, a power rating
shall be derated in
accordance with the
above derating curve.
-40
0
40
160
80
120
70
Ambient Temperature
(°C)
200
240
235
ordering information
New Part #
BPR
Type
Power
Rating
2: 2W
3: 3W
5: 5W
10: 10W
For further information on
packaging, please refer to
Appendix C.
55: 5W+5W
77: 7W+7W
5
Lead Wire
Diameter
6: ø0.6mm
8: ø0.8mm
8
Termination
Material
C: SnCu
C
F
Packaging
Blank: Straight lead
(9.0mm pitch)
F: Forming
(9.0mm pitch)
FT: Radial taping
(BPR26FT,
BPR58FT only,
5.0mm pitch)
8: ø0.8mm
Blank
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
Nominal
Resistance
2 significant figures
+1 multiplier. “R”
indicates decimal
on value <10Ω.
All values less than
0.1Ω are expressed
in mΩ with “L” as
decimal.
Ex: 20mΩ - 20L
R10
J
Tolerance
J: ±5%
K: ±10%
166
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
11/30/14
rectangular type metal plate resistors
applications and ratings
Part
Designation
BPR28
BPR26
BPR38
BPR58
BPR55
Power
Rating
2W
2W
3W
5W
10W
5W+5W
±350*
0.01Ω, 0.1Ω - 1.0Ω
–––
0.05Ω, 0.1Ω
0.22Ω - 0.47Ω
0.01Ω - 1.0Ω
0.05Ω, 0.1Ω - 1.0Ω
0.03Ω - 0.47Ω
+70°C
-40°C to +200°C
0.01Ω
0.1Ω - 0.68Ω
0.01Ω - 0.68Ω
T.C.R.
(ppm/°C)
Max.
J: ±5%
(E12)
Resistance Range
Rated
Ambient
Temperature
Operating
Temperature
Range
K: ±10%
(E12)
BPR108
BPR77
7W+7W
* Application range: The straight style of 0.018Ω or over
standard resistance
Resistance
J: ±5%
26, 28
K: ±10%
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
J: ±5%
H
38
K: ±10%
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
J: ±5%
H
58
environmental applications
Performance Characteristics
Parameter
Resistance
T.C.R.
Overload (Short time)
Resistance to Solder Heat
Moisture Resistance
Endurance at 70°C
High Temperature Exposure
Resistance to Solvent
0.01
H
0.012
0.015
0.02*
0.022
0.027
0.03*
0.033
0.039
0.04*
0.047
0.05*
0.068
0.082
0.1
H
0.12
H
0.15
H
0.18
H
0.22
H
0.27
H
0.33
H
0.39
H
0.47
H
0.56
H
0.68
H
0.82
1.00
H
: Available
K: ±10%
J: ±5%
108
K: ±10%
––
––
––
––
––
––
––
––
––
J: ±5%
––
––
––
55
K: ±10%
––
––
––
J: ±5%
––
––
––
77
K: ±10%
––
––
––
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
Blank : Please consult
H
––
H
––
H
––
H
––
H
––
H
––
H
––
H
––
H
––
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
–– : Not available
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
––
––
––
* Non standard
H
H
H
H
H
H
H
H
H
H
H
H
H
H
H
––
––
––
––
––
––
E-12 Decade Value
––
––
––
Requirement
∆
R%
Limit
Typical
Within regulated
—
tolerance
Within specified
—
T.C.R.
±2.0%
±1.0%
±2.0%
±1.0%
±5.0%
±3.0%
±5.0%
±3.0%
±3.0%
±2.0%
—
Test Method
25°C (Measurement position: 10mm under from the case)
+25°C/-55°C and +25°C/+125°C
(Application range: the straight style of 0.018Ω over)
Rated power x 2.5 for 5 seconds (Application range: 0.05Ω & over)
260°C ± 5°C, 10 seconds ± 1 second
40°C ± 2°C, 90 - 95% RH, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
70°C ± 2°C, 1000 hours, 1.5 hr ON, 0.5 hr OFF cycle
+125°C, 100 hours
After immersing the sample in I.P.A for 60 seconds ± 10 seconds,
the resistor surface should be rubbed with absorbent cotton 10 times
12/18/12
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
No evidence of damage
to protective coating
and marking
KOA Speer Electronics, Inc.
• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
167
resistors
BPR
MCU
