Low Power 2 Watts RF Load Up To 6 GHz With
N Male Input Tri-Metal Plated Brass
TECHNICAL DATA SHEET
Configuration
Connector
Heat Sink
Connection Method
Body Style
N Male
Brass, Tri-Metal
Standard
Straight
PE6249
Electrical Specifications
(Values at 25°C, sea level)
Description
Frequency Range
Impedance
VSWR
Input Power
Peak Power
.
Minimum
DC
Typical
Maximum
6
50
1.2:1
2
1
Units
GHz
Ohms
Watts
KWatts
Mechanical Specifications
Temperature
Operating Range
Size
Length
Width/Dia.
.
-55 to +125 deg C
1.18 in [29.97 mm]
0.787 in [19.99 mm]
Connector
Type
Inner Conductor Material and Plating
Coupling Nut Material and Plating
Body Material and Plating
N Male
Gold
Brass, Tri-Metal
Brass, Tri-Metal
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
• Values at +25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Power 2 Watts RF Load Up To 6 GHz With N Male Input Tri-Metal Plated Brass PE6249
PE6249 REV 1.0
1
Low Power 2 Watts RF Load Up To 6 GHz With
N Male Input Tri-Metal Plated Brass
TECHNICAL DATA SHEET

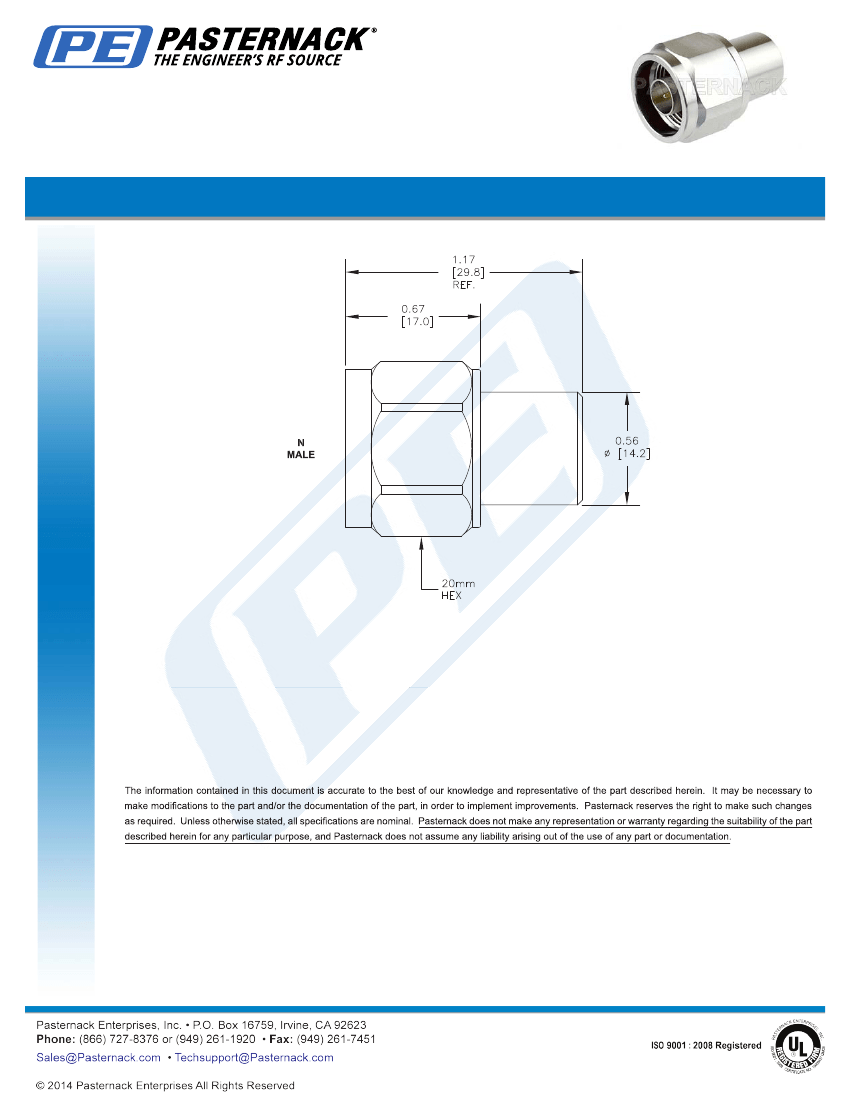

Outline Drawing
PE6249
Low Power 2 Watts RF Load Up To 6 GHz With N Male Input Tri-Metal Plated Brass from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Low Power 2 Watts RF Load Up To 6 GHz With N Male Input Tri-Metal Plated Brass PE6249
URL:
http://www.pasternack.com/2-watts-n-male-rf-load-up-to-6-ghz-pe6249-p.aspx
PE6249 REV 1.0
2
