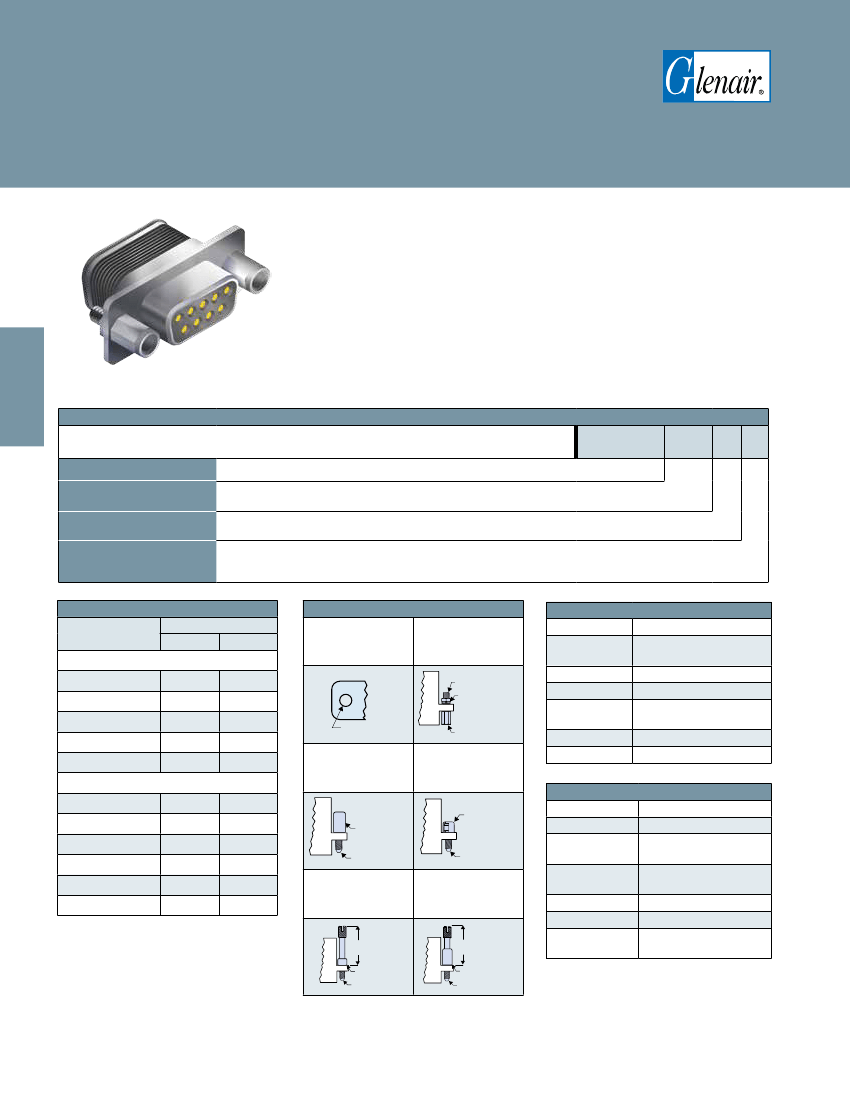

SERIES 28
HiPer-D
®
Standard and High-Density Connectors
280-087 socket connectors with standard M24308 type mounting
flange, integral banding platform and crimp termination
HiPer-D® socket connectors feature integrated banding platform, crimp, rear-
releaseable size #20 or #22 contacts. Intermateable with standard M24308-type
D-Subminiature connectors, the HiPer-D® features a rugged machined aluminum
shell, waterproof sealing and optional ground springs for improved resistance to
electromagnetic interference. Gold-plated size #20 contacts conform to M39029/64-
369 and accept #20 to #24 AWG wire. Gold-plated size #22 contacts conform to
M39029/58-360 and accept #22 to #28 AWG wire. Contacts are packaged with
connector. Terminate contacts with crimp tools purchased separately. Glass-reinforced
thermoset epoxy insulators, copper alloy retention clips. Fluorosilicone face seal and
rear grommet meet IP67 immersion requirement. 1000 VAC, 5 Amps (#22) or 7.5
Amps (#20).
Ordering Information
Sample Part Number
Basic Part Number
Shell Size-
Contact Arrangement
Shell Finish
Mating Hardware
280-087S
See Shell Size - Contact Arrangements Table
ME
= Electroless Nickel (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
N
= No Hardware (Through-Hole)
L
= Jackscrew, Hex Head, Low Profile
S
= Screwlock, Male, Hex Head, Low Profile
MT
= Nickel-PTFE (RoHS)
ZM
= Nickel over Stainless
P
= #4-40 Female Jackpost
K
= Jackscrew, Slot Head, Extended Length
T
= Screwlock, Male, Slot Head, Extended Length
Materials and Finishes
Shell
Contacts
Insulators
Retention Clips
Grommet and
Seal
EMI Spring
Hardware
Aluminum alloy
Copper alloy, 50 microin.
gold plated
Thermoset epoxy
Copper alloy
Fluorosilicone rubber
Copper alloy, nickel plated
300 series stainless steel
Specifications
Current Rating
Test Voltage
Insulation
Resistance
#22 5 AMPS, #20 7.5 AMPS
1000 VAC RMS
5000 megohms minimum
B
280-087S
3S25
ME
P
Shell Size - Contact Arrangements
Shell Size-
Contact Arr.
1S9
2S15
3S25
4S37
5S50
1H15
2H26
3H44
4H62
5H78
6H104
Contact Size and Qty
#20
9
15
25
37
50
High Density
15
26
44
62
78
104
#22
Mating Hardware
N
Thru-Hole
No Hardware
P
Female Jackpost
#4-40 UNC-2A
NUT AND
LOCKWASHER
Standard Density
.115/.125
(2.92/3.18)
#4-40 UNC-2B
S
Captive Screwlock,
Hex Head
L
Captive Jackscrew,
Hex Head
RETAINER
RETAINER
#4-40 UNC-2A
#4-40 UNC-2A
K
Slot-Head Extended
Jackscrew
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
T
Slot-Head Extended
Captive Screwlock
1.1 (28)
MAX
RETAINER
#4-40 UNC-2A
Operating
-65° C. to +200° C.
Temperature
Ingress Protection IP 67
Shock
Vibration,
Random
300 g.
43.92 g.
B-36
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Catalog Title
Dimensions in Inches (millimeters) are subject to change without notice.
SERIES 28
HiPer-D
®
Standard and High-Density Connectors
280-087 socket connectors with standard M24308 type mounting
flange, integral banding platform and crimp termination

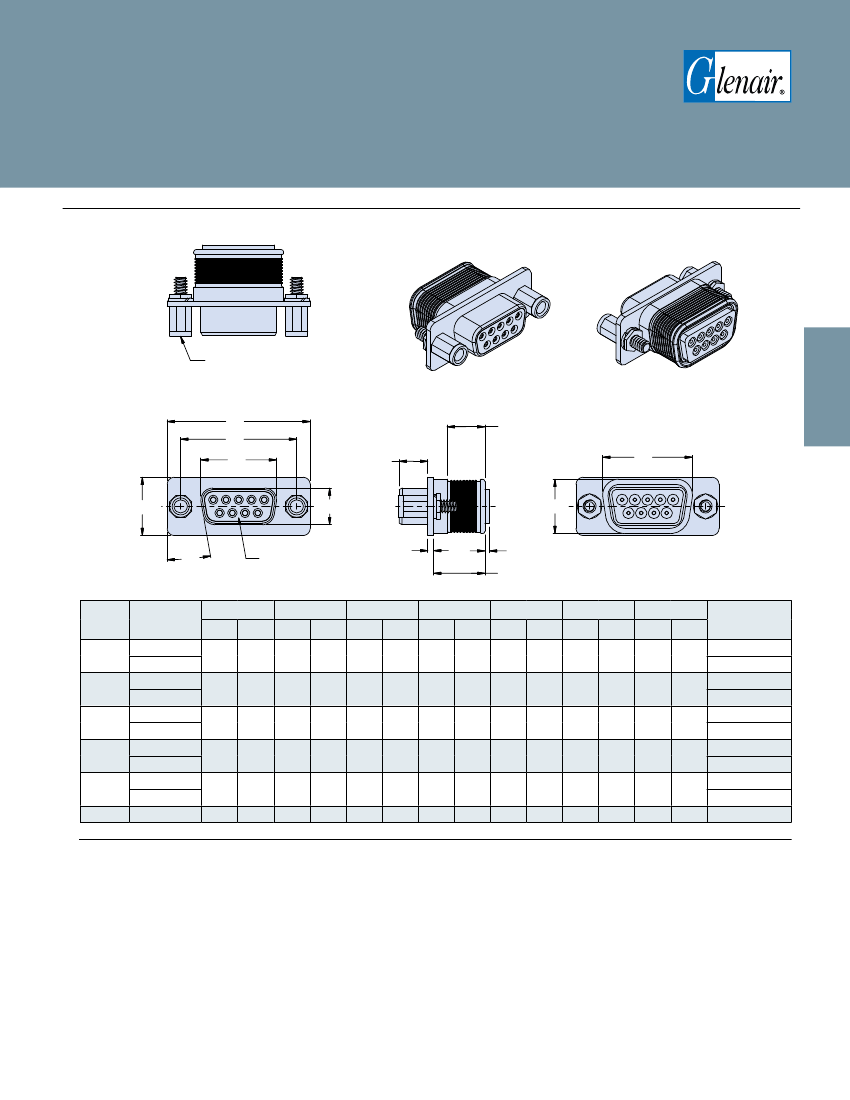

280-087S DIMENSIONS
"P" Hardware Shown
Female Jackpost
B
.320 (8.13) to Accommodate
Micro or Nano Bandit
.243±.005
(6.17±.127)
"E"
.049 (1.24)
"J"
"H"
"A"
"C"
"D"
"B"
10°
Typ
Insert Pattern
1S9 Shown For
Reference Only
“A” ±.015
In.
mm.
“B” ±.015
In.
mm.
.038 (.97)
.435 (11.50)
Shell
Size
1
2
3
4
5
6
Insert
Pattern
SD 9
HD 15
SD 15
HD 26
SD 25
HD 44
SD 37
HD 62
SD 50
HD 78
HD 104
“C” ±.005
In.
mm.
“D” ±.005
In.
mm.
“E” ±005
In.
mm.
In.
“H”
mm.
In.
“J”
mm.
Contact P/N
M39029/63-368
1.213 30.81
1.541 39.14
2.088 53.04
2.729 69.32
2.635 66.93
2.729 69.32
0.494 12.55
0.494 12.55
0.494 12.55
0.494 12.55
0.605 15.37
0.668 16.97
0.984 24.99
1.312 33.32
1.852 47.04
2.5
63.50
0.643 16.33
0.971 24.66
1.511 38..8
2.159 54.84
2.064 52.43
2.189 55.60
0.311 7.90
0.311 7.90
0.311 7.90
0.311 7.90
0.423 10.74
0.486 12.34
0.760 19.30
1.089 27.66
1.629 41.38
2.277 57.84
2.182 55.42
2.307 58.60
0.462 11.73
M39029/57-354
M39029/63-368
0.462 11.73
M39029/57-354
0.462 11.73
0.462 11.73
M39029/63-368
M39029/57-354
M39029/63-368
2.406 61.11
2.5
63.50
M39029/57-354
M39029/63-368
0.474 12.04
M39029/57-354
0.626 15.90 M39029/57-354
NOTES
1. HiPer-D® connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D® Shell Plating Options
for additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup charge, no
minimum order quantity and no schedule impact.
2. For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
3. Connectors are supplied with crimp contacts per M39029. Contacts are not installed. Refer to
HiPer-D® Contacts and Crimp Tools
for
contact part numbers, specifications, crimp tool information, and insertion/extraction tools.
4. HiPer-D® connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type D-Subminiature
connectors with corresponding contact arrangements and type.
5. Additional electrical, mechanical and environmental specifications are listed in
HiPer-D® Product Specification.
