SERIES 28
HiPer-D
®
Accessories

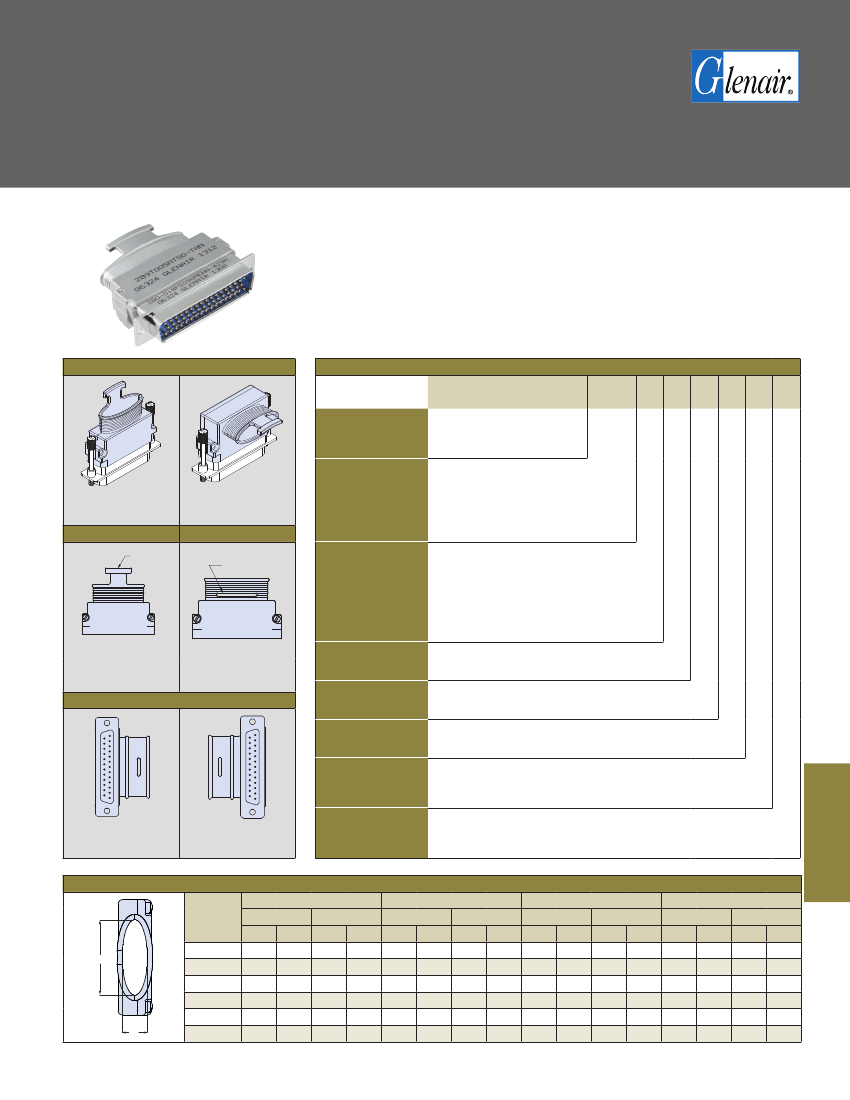

Low-Profile EMI Backshell, two-piece, elliptical entry, non-environmental
289T005 top entry, 289S005 side entry
Lightweight, low profile space-saving two piece backshell fits securely into groove
in HiPer-D® connectors. Fits standard HiPer-D® pin and socket connectors (280-018P,
280-019S) and Combo HiPer-D® connectors (280-046P and 280-047S). Terminate cable
shield with optional Band-Master™ATS clamping band. Elliptical cable entry provides
room for large wire bundles. Machined aluminum alloy or stainless steel backshell
consists of two interlocking housings and two 300 series stainless steel screws.
Overlapping seam improves EMI shielding performance. Compatible with Glenair
Series 77 lipped heat-shrink boots. Non-environmental.
Entry Style
Sample Part Number
Ordering Information
289T005
289T005
= Top Entry (Fig.
1)
289S005
= Side Entry (Fig.
2)
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
1
= Shell Size 1
2
= Shell Size 2
3
= Shell Size 3
4
= Shell Size 4
5
= Shell Size 5
6
= Shell Size 6
A, B, C or D
See Cable Entry Size Table Below
N
= Supplied without Qwik Ty™
T
= With Qwik Ty™ Strain Relief (Fig.
3)
N
= Supplied without Slots
S
= With Slots for Terminating Individual Shields (Fig.
4)
N
= Supplied without Band
K
= Supplied with Pre-Coiled Band (600-052-1)
Omit for 289T005. Applies only to 289S005.
1
= Cable Exit on Long Side of Shell Keystone (Fig.
5)
2
= Cable Exit on Short Side of Shell Keystone (Fig.
6)
MT
3
B
-N
N
K
Basic Part Number
Top Entry
289T005
Fig. 1
Side Entry
289S005
Fig. 2
Finish
Qwik Ty™ Option
QWIK-TY
Slot Option
SLOT
Shell Size
Qwik Ty™
Fig. 3
Fig. 4
Slots
Entry Size
Qwik Ty™ Option
Slot Option
Cable Entry Direction
EMI/RFI Band
Long Side Entry (1)
Fig. 5
Short Side Entry (2)
Fig. 6
Cable Entry
Direction
E
SIZE D
F
mm
In.
.375
.375
.375
.375
E
F
Shell
Size
1
2
3
4
5
6
Cable Entry Size
SIZE A
SIZE B
E
F
E
F
In. mm In. mm In. mm In. mm
.143
.188
.245
.291
.326
.376
3.63
4.78
6.22
7.39
8.28
9.55
.143
.188
.245
.291
.326
.376
3.63
4.78
6.22
7.39
8.28
9.55
.195
4.95
.195
.256
.375
.375
4.95
.256 6.50
.550 13.97
.800 20.32
.770 19.56
.863 21.92
SIZE C
E
In.
.242
F
mm
6.15
E
mm
6.15
In.
.242
.375
.375
.375
In.
mm
9.53
9.53
9.53
9.53
.438 11.13
6.50 .480 12.19
9.53 .780 19.81
9.53 1.260 32.00
9.53 .688 17.48
9.53 1.125 28.58
9.53 1.813 46.05
.485 12.32 1.250 31.75
.550 13.97 1.323 33.60
.485 12.32 1.750 44.45
.550 13.97 1.875 47.63
.485 12.32
.550 13.97
E-5
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
Rev. 6-2014
SERIES 28
HiPer-D
®
Accessories
Low-Profile EMI Backshell, two-piece, elliptical entry, non-environmental
289T005 top entry

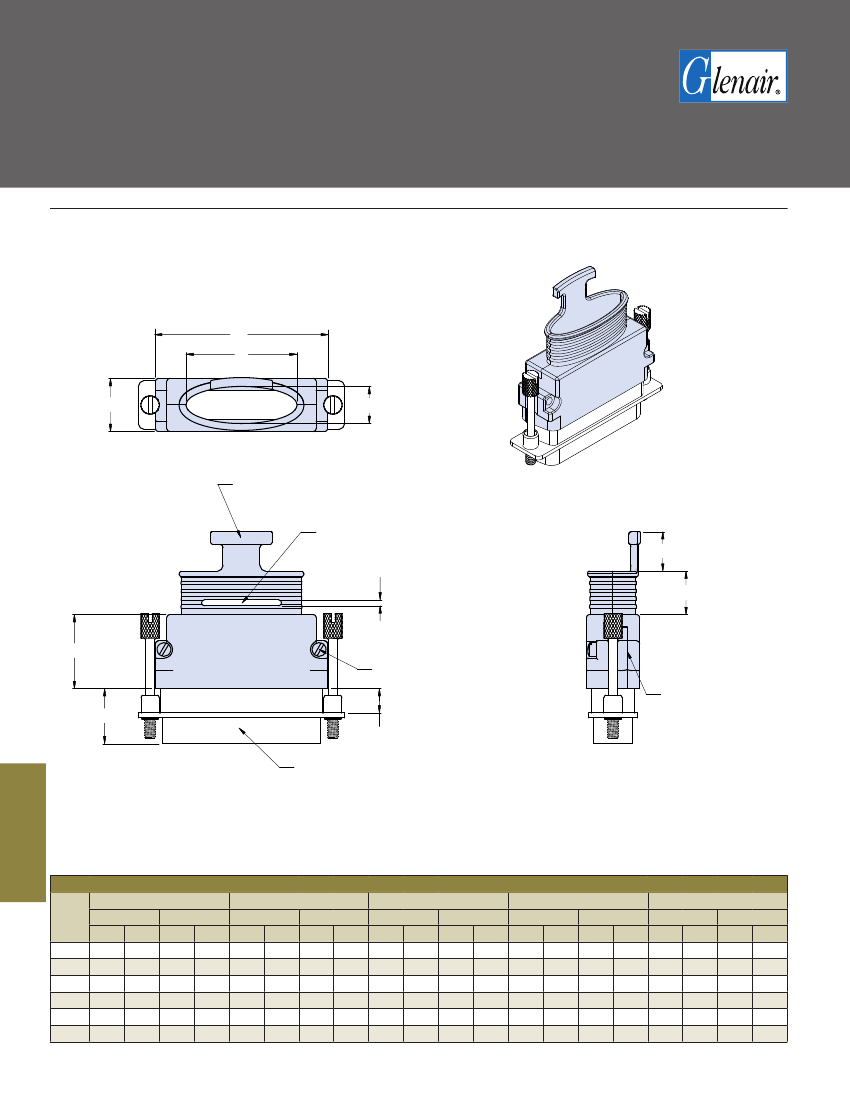

289T005 DIMENSIONS
A
E
B
F
QWIK TY OPTION
SLOT OPTION
.41 (10.4)
.06 (1.5)
.44 (11.2)
.750 (19.05)
FILLISTER HEAD, CAPTIVE
SCREW HARDWARE
.57 (14.4)
.25 (6.3)
CONNECTOR SHOWN FOR REF. ONLY
OVERLAPPING
EMI JOINT
E
Shell
Size
1
2
3
4
5
6
E-6
A Max
In. mm
.880 22.35
1.210 30.73
1.750 44.45
2.400 60.96
2.305 58.55
2.400 60.96
B Max
In. mm
.509 12.93
.509 12.93
.509 12.93
.509 12.93
.620 15.75
.683 17.35
Entry Size A
E
F
In. mm In. mm
.143
.188
.245
.291
.326
.376
3.63
4.78
6.22
7.39
8.28
9.55
.143
.188
.245
.291
.326
.376
3.63
4.78
6.22
7.39
8.28
9.55
Dimensions
Entry Size B
E
F
In. mm In. mm
.195
4.95
.195
.256
.375
.375
4.95
.256 6.50
.550 13.97
.800 20.32
.770 19.56
.863 21.92
Entry Size C
E
F
In. mm In. mm
.242
6.15
.242
.375
.375
.375
6.15
Entry Size D
E
F
In. mm In. mm
.438 11.13
.375
.375
.375
.375
9.53
9.53
9.53
9.53
6.50 .480 12.19
9.53 .780 19.81
9.53 1.260 32.00
9.53 .688 17.48
9.53 1.125 28.58
9.53 1.813 46.05
.485 12.32 1.250 31.75
.550 13.97 1.323 33.60
.485 12.32 1.750 44.45
.550 13.97 1.875 47.63
.485 12.32
.550 13.97
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
Rev. 6-2014
SERIES 28
HiPer-D
®
Accessories
Low-Profile EMI Backshell, two-piece, elliptical entry, non-environmental
289S005 side entry

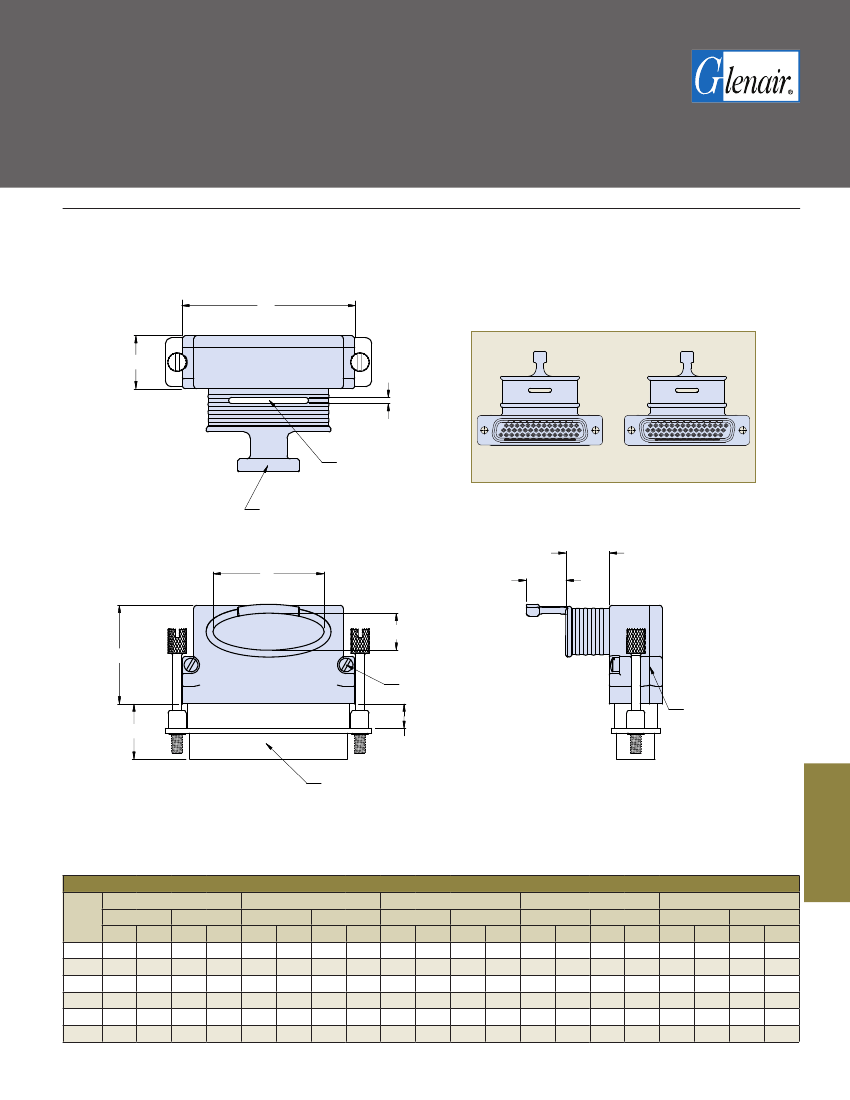

289S005 DIMENSIONS
A
Cable Exit Direction
B
.06 (1.5)
SLOT OPTION
DIRECTION 2
CABLE EXITS ON
SHORT SIDE OF
KEYSTONE
DIRECTION 1
CABLE EXITS ON LONG
SIDE OF KEYSTONE
QWIK TY OPTION
.44 (11.2)
E
.41 (10.4)
F
1.00 (2.5)
FILLISTER HEAD, CAPTIVE
SCREW HARDWARE
.57 (14.5)
.25 (6.4)
OVERLAPPING
EMI JOINT
CONNECTOR SHOWN FOR REF. ONLY
(SEE 280-018P & 280-019S)
E
Shell
Size
1
2
3
4
5
6
E-7
A Max
In. mm
.894 22.71
1.218 30.94
1.760 44.70
2.408 61.16
2.297 58.34
2.422 61.52
B Max
In. mm
.550 13.97
.550 13.97
.550 13.97
.550 13.97
.654 16.61
.716 18.19
Entry Size A
E
F
In. mm In. mm
.143
.188
.245
.291
.326
.376
3.63
4.78
6.22
7.39
8.28
9.55
.143
.188
.245
.291
.326
.376
3.63
4.78
6.22
7.39
8.28
9.55
Dimensions
Entry Size B
E
F
In. mm In. mm
.195
4.95
.195
.256
.375
.375
4.95
.256 6.50
.550 13.97
.800 20.32
.770 19.56
.863 21.92
Entry Size C
E
F
In. mm In. mm
.242
6.15
.242
.375
.375
.375
6.15
Entry Size D
E
F
In. mm In. mm
.438 11.13
.375
.375
.375
.375
9.53
9.53
9.53
9.53
6.50 .480 12.19
9.53 .780 19.81
9.53 1.260 32.00
9.53 .688 17.48
9.53 1.125 28.58
9.53 1.813 46.05
.485 12.32 1.250 31.75
.550 13.97 1.323 33.60
.485 12.32 1.750 44.45
.550 13.97 1.875 47.63
.485 12.32
.550 13.97
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
Rev. 6-2014
